46-D デュアルコンベアステーション( 搬送部 ):NPM Dual Conveyor Station(Trannsport Unit):NPM パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N6 1010 048 6AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - O237 ( KN610100486AA-06-4 )

100%1 / 648
Ref
No.
Remarks
R
1
Q'ty
46-C
デュアルコンベアステーション(
搬送部
):NPM
Dual Conveyor Station(Trannsport Unit):NPM
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610100486AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
15 N210123030AC
PLATE
1
16 N210123031AC
PLATE
1
17 N210123032AB
MOTOR
2
40 N510037232AA
S
DU13H713S-01
BUSH
4
41 N510016960AA LMF16LUU
LINEAR-BUSH
2
42 N510051435AA LMF16UU
COUPLING
2
44 N510034822AA MSF-20-D8XD8(2-M5)
SPACER
8
45 N510029496AA ASF-454E
BEARING
4
46 KXF03G0AA00 SFB38-10
COLLAR
2
47 N510020791AA 87SCCN10-10
COLLAR
2
48 N510047330AA 87FNCLB-V10.0-D13.0-L11.0
BOLT
24
76 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J (Trivalent)
BOLT
16
77 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
8
78 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
BOLT
4
80 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
WASHER
4
84 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
16
87 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
8
93 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
BALL-SCREW
1
98 N510051789AA XSTR01204C1DFC7-664-P0(PA100901)
BALL-SCREW
1
99 N510051791AA XSTR01204C1DFC7-404-P0(PA100900)
SHAFT
2
100 N510051792AA SF16614M05B
BOLT
1
106 N510054876AA P=1CAP M4X12-10.9(Trivalent blue plated)
O236
--
( KN610100486AA-06-3 )

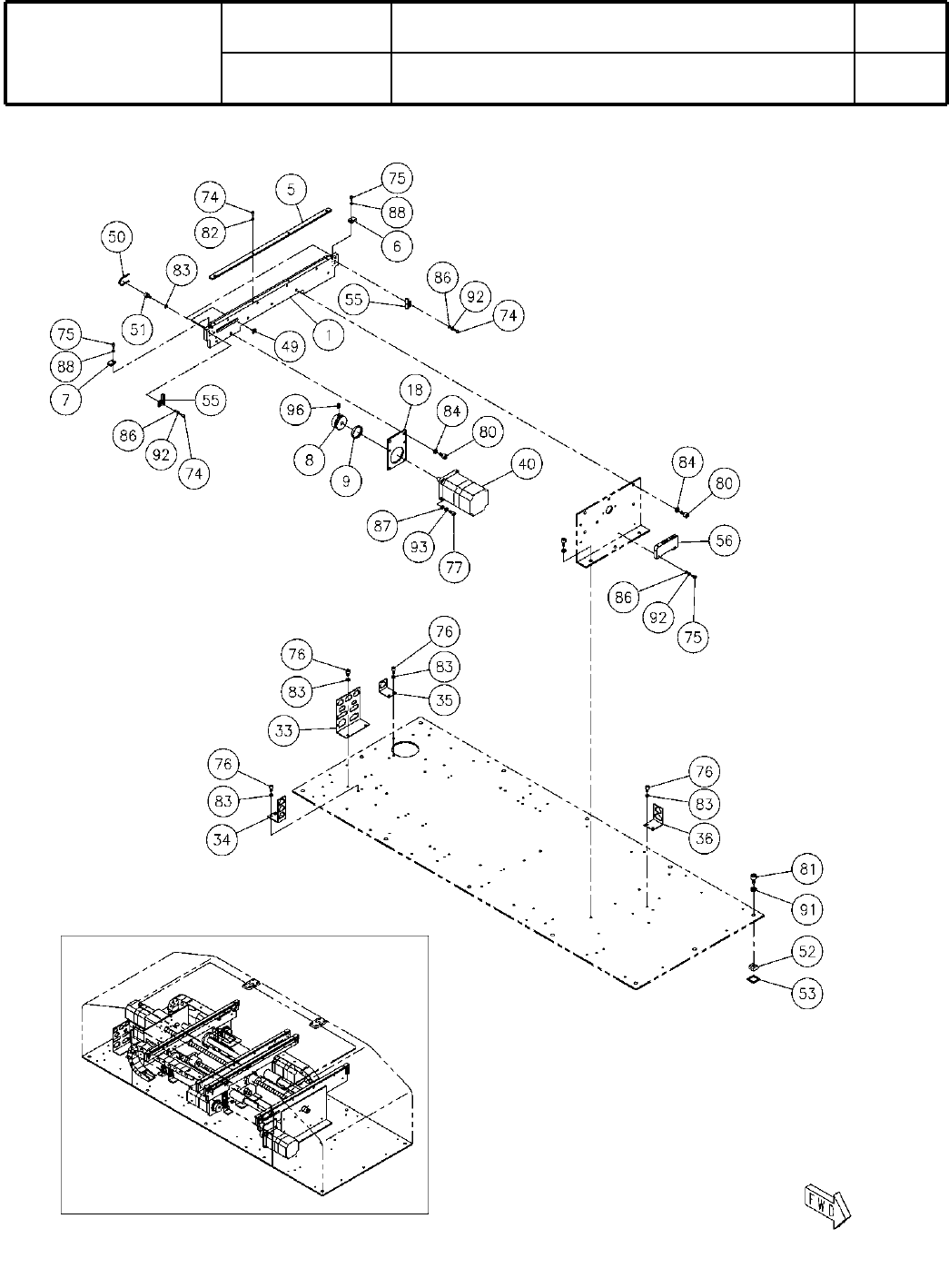

46-D
デュアルコンベアステーション(
搬送部
):NPM
Dual Conveyor Station(Trannsport Unit):NPM
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610100486AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
O237
( KN610100486AA-06-4 )
Ref
No.
Remarks
R
1
Q'ty
46-D
デュアルコンベアステーション(
搬送部
):NPM
Dual Conveyor Station(Trannsport Unit):NPM
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610100486AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
FRAME
1
1 N210122961AA
GUIDE
1
5 N210123023AA
GUIDE
1
6 N210105096AB
GUIDE
1
7 N210105097AC
PULLEY
1
8 N210092041AA
RING
1
9 N210088855AA
BRACKET
1
18 N210109955AA
BRACKET
1
33 N210123163AA
BRACKET
1
34 N210091609AA
BRACKET
1
35 N210087006AA
BRACKET
1
36 N210123313AA
MOTOR
1
40 N510037232AA
S
DU13H713S-01
NUT
1
49 N510048038AA NSMT-04-4
T-BELT
1
50 N510051433AA
A
NSE7113A 4.5WX990.0LX0.65T
CAM-FOLLOWER
4
51 N510043608AA U-AS4-79
NUT
12
52 KXF0ATGAA00 SFB-002
CAP
12
53 KXF0ATFAA00 SFA-906
FIBER
1
55 N510039140AB CFT0208
AMP
1
56 N510035086AA FX-101-PFS
BOLT
8
74 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
2
75 N510017308AA
Hexagon socket head cap screw M3X12-10.9 A2J (Trivalent)
BOLT
8
76 N510017376AA
Hexagon socket head cap screw M4X6-10.9 A2J (Trivalent)
BOLT
4
77 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
5
80 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
BOLT
12
81 N510017428AA
Hexagon socket head cap screw M6X12-10.9 A2J (Trivalent)
WASHER
4
82 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
WASHER
12
83 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
5
84 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
6
86 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
4
87 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
2
88 N510020098AA Thick washer M3
WASHER
12
91 N510020101AA Thick washer M6
WASHER
6
92 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
WASHER
4
93 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
SCREW
1
96 XXE5D8FT
Hexagon socket set screw Cup point M5X8-45H SOB
O238
--
( KN610100486AA-06-4 )
