5$,/6< 67(002' 8/( 7(67& <&/(6 Chapter Issue 1 Sep 02 Technical Reference Manual 12.23 TEST CYCLES For inf ormation on the T est Cycles f unction r efer to the Screen Alignment Chapter of this manua…
5$,/6<67(002'8/(
&$/,%5$7,216
12.22 Technical Reference Manual Chapter Issue 1 Sep 02
3. Using a tachometer fitted with the surface speed test wheel, positioned on
the input or output pulley of the front belt motor, measure the speed of the
motor left to right. Adjust the motor speed using Incr./Decr. to achieve a
speed of 29 - 31 metres/min.
4. Using Next repeat Step 3 for front right to left motor speed.

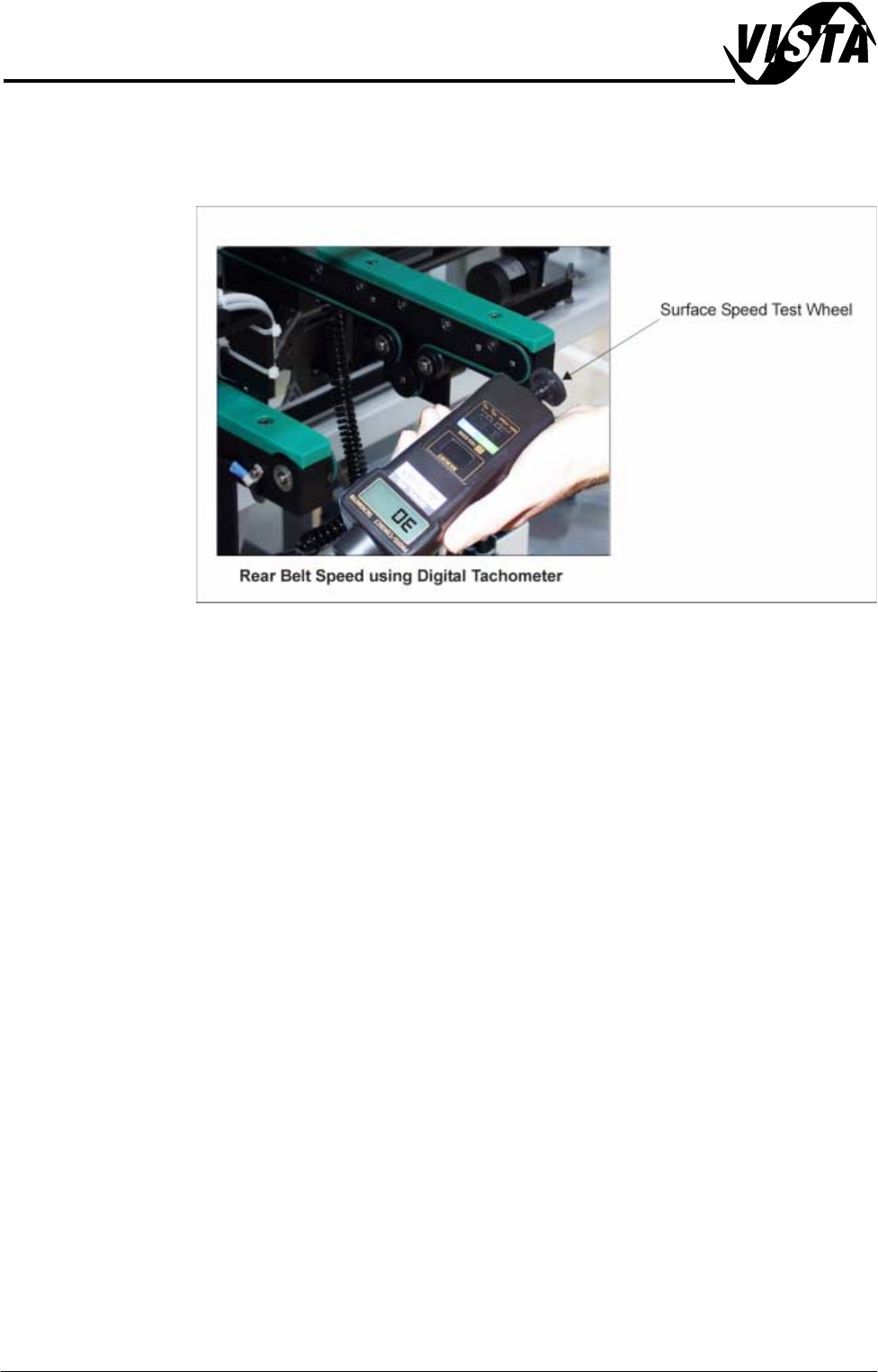

5. Select Next use a tachometer fitted with the surface speed test wheel,
positioned on the input or output pulley of the rear belt motor, measure the
speed of the motor left to right. Adjust the motor speed using Incr./Decr. to
achieve a speed of 29 - 31 metres/min.
6. Using Next repeat Step 5 for rear right to left motor speed
7. Select Save, the speed of the front and rear belt motors are now saved in
the machine configuration file.
8. Select Exit.
9. Select Exit.
10.Select Exit.
5$,/6<67(002'8/(
7(67&<&/(6
Chapter Issue 1 Sep 02 Technical Reference Manual 12.23
TEST CYCLES For information on the Test Cycles function refer to the Screen Alignment
Chapter of this manual.
5$,/6<67(002'8/(
7(67&<&/(6
12.24 Technical Reference Manual Chapter Issue 1 Sep 02
