3-24 3 Periodic maintenance items n Cleaning the air filter 1 Remo ve the filter cup. See the previous procedure in "Cle aning the filter cup". 2 Remo ve the air filter . Rotate the white part clockwise as view…
3-23
3
Periodic maintenance items
3.5 Inspecting and cleaning the air/mist filters
Air/mist filters are used to prevent oil, mist and other impurities in the air compressor from penetrating into the
machine. These filters should be inspected and cleaned periodically as instructed below. (The filter closer to
the air coupler is the air filter and the other one is the mist filter.)
n
Cleaning the filter cup
1
Check the inside of the filer cup.
Check for oil or water deposits in the filter
cup through the window. If the window is
dirty, follow the steps below to clean the
filter cup.
TIP
The drain cock at the bottom of the filter cup is an
auto-drain type. It automatically drains the oil or water
when deposited in the cup. We recommend
connecting a hose to this drain cock.
2
Disconnect the air hose from the
air coupler.
c
sound is produced when disconnecting the coupler.
3
Remove the filter cup.
While pressing the button on the side of the
filter cup, turn it clockwise, and pull the filter
cup downwards.
53325-L2-00
4
Clean the inside of the filter cup.
1. Lightly clean the filter cup with water.
2. Then, pour water-diluted neutral
detergent into the filter cup and clean
the inside while shaking it.
3. Air blow the filter cup and wipe away
any moisture with clean cloth or paper.
53326-L2-00
5
Reattach the filter cup.
1. Align the button on the side of the cup
with the attach/detach position and
push the cup upwards.
2. Turn the cup counterclockwise until you
hear a click.
n
NOTE
Leave the filter cup removed to clean the air filter as
explained in the next procedure.
6
Reconnect the air hose to the air
coupler.
After connecting the air hose, check that no
air is leaking.
Removing the filter cup
Step 3
Filter cup
Button
Cleaning the filter cup
Step 4
Filter cup
Water-diluted
neutral detergent
3-24
3
Periodic maintenance items
n
Cleaning the air filter
1
Remove the filter cup.
See the previous procedure in "Cleaning the
filter cup".
2
Remove the air filter.
Rotate the white part clockwise as viewed
from the top and take out the air filter.
53327-L2-00
3
Clean the air filter.
Use an air blow tool to blow away dust and
impurities trapped by the air filter. If the filter
is excessively dirty and cannot be cleaned,
replace it with a new filter.
4
Reattach the air filter.
Screw the white disk back in to attach the
air filter to the original position.
5
Reattach the filter cup.
n
NOTE
When cleaning the mist filter, use the same procedure.

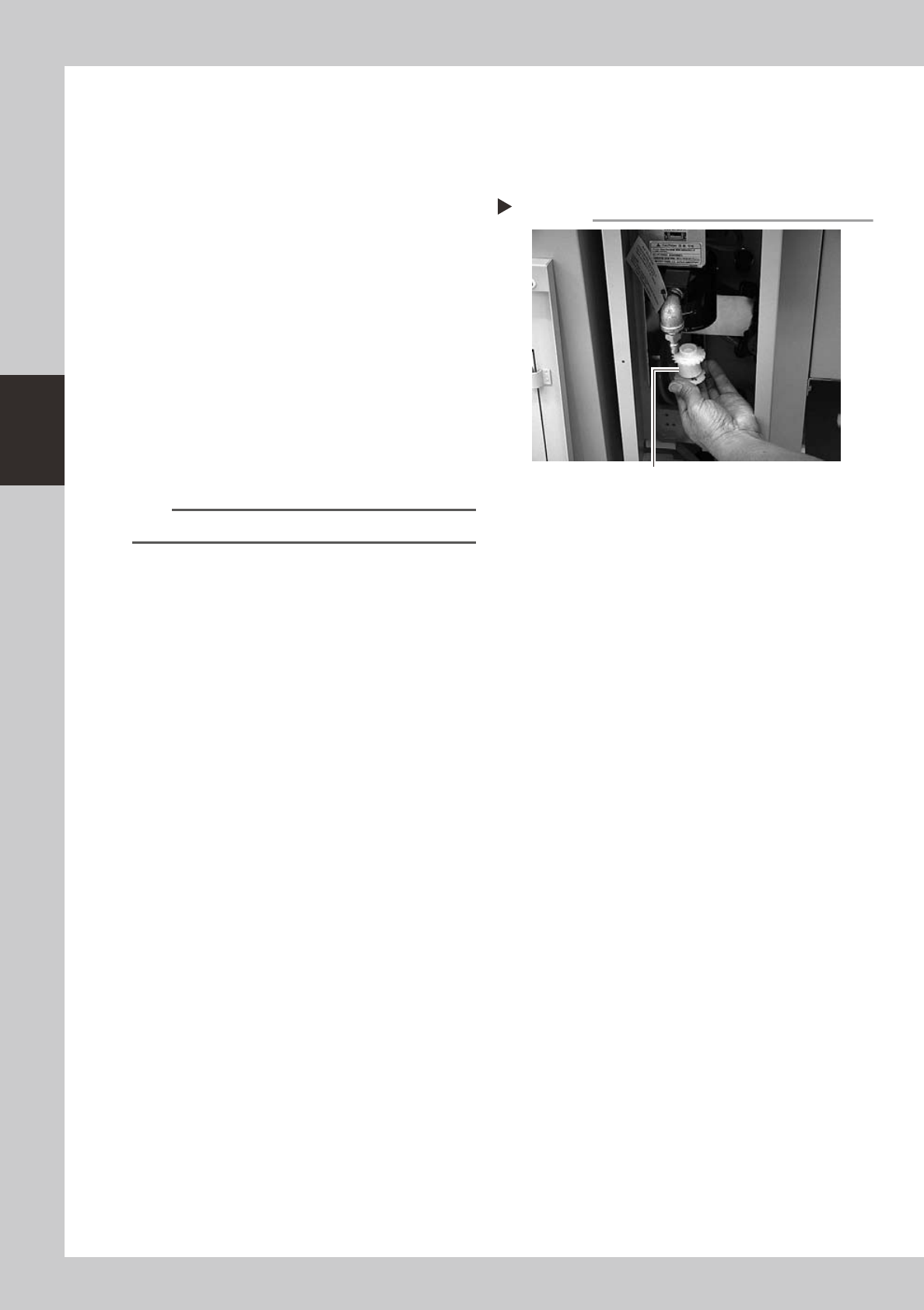

Removing the air filter
Step 2
Loosen and remove this part.
3-25
3
Periodic maintenance items
3.6 Cleaning and greasing the U (W2) axis (dual stage)
This section describes how to clean and grease the U axis (W2 axis).
For details about lubrication points and procedures, see the section, “Lubrication points”, in Chapter 4.
Prepare the specified grease (NSL).
3.6.1 Cleaning and greasing the U-axis ball screw
1
Make the preparations for the
cleaning and greasing work.
Take off all accessories susceptible to the
magnetic fields, such as a wristwatch and/
or magnetic ID card.
2
Clean the ball screw.
1. Set the board width to its maximum level
with manual operation. Raise the stage 2
and put the machine in the emergency
stop state.
e
2. Wipe away the old grease and dirt from
the entire ball screw with a lint-free cloth
or paper towel (for clean room).
3. Cancel the emergency stop and make
the board width narrower. After that,
wipe also the remaining portions.
53379-L2-00
c
Carefully wipe the lead grooves of the ball screw during
is not produced.
3
Apply grease.
Apply the specified grease (NSL) by hand
uniformly over the surface and lead grooves
of the ball screw.
n
NOTE
In the same manner as described in step 2, adjust the
board width and apply the grease to the entire ball
screw.
53380-L2-00
Cleaning the ball screw
Step 2
Stage 2
Cleaning cloth
Ball screw
Applying grease
Step 3
Stage 2
Grease
