3-7 3 Periodic maintenance items 2. Monthly or bimonthly inspection This section mainly explains the cleaning and lubrication procedures after inspection. 2.1 Cleaning the nozzle air path (monthly) e 1 Remo ve the nozzle…
3-6
3
Periodic maintenance items
1.4 Cleaning the Y-axis linear scale
If the Y-axis linear scale (scale tape) is dirty, an error may occur when reading the linear scale. To prevent such
an error, the linear scale must be cleaned periodically.
n
Items to be prepared
• Paper wipe (Use a lint-free cleaning cloth or paper wiper.)
• Isopropyl alcohol or anhydrous ethanol
1
Move the X-axis to the rear of the
machine.
2
Clean the scale tape.
Wipe the scale tape in one direction using a
paper wipe moistened with isopropyl
alcohol.
53362-L2-00
n
NOTE
To remove moistened dust, wipe the scale surface at
intervals of about 200mm while changing the
wiping
surface of the paper wipe.
3
Wipe the scale surface with a dry
wipe.
Before the scale surface you wiped in step 2
dries completely, wipe it with a dry wipe.
4
Clean the linear scale on the rear
side.
Working from the rear of the machine, move
the X-axis to the front and clean the linear
scale.

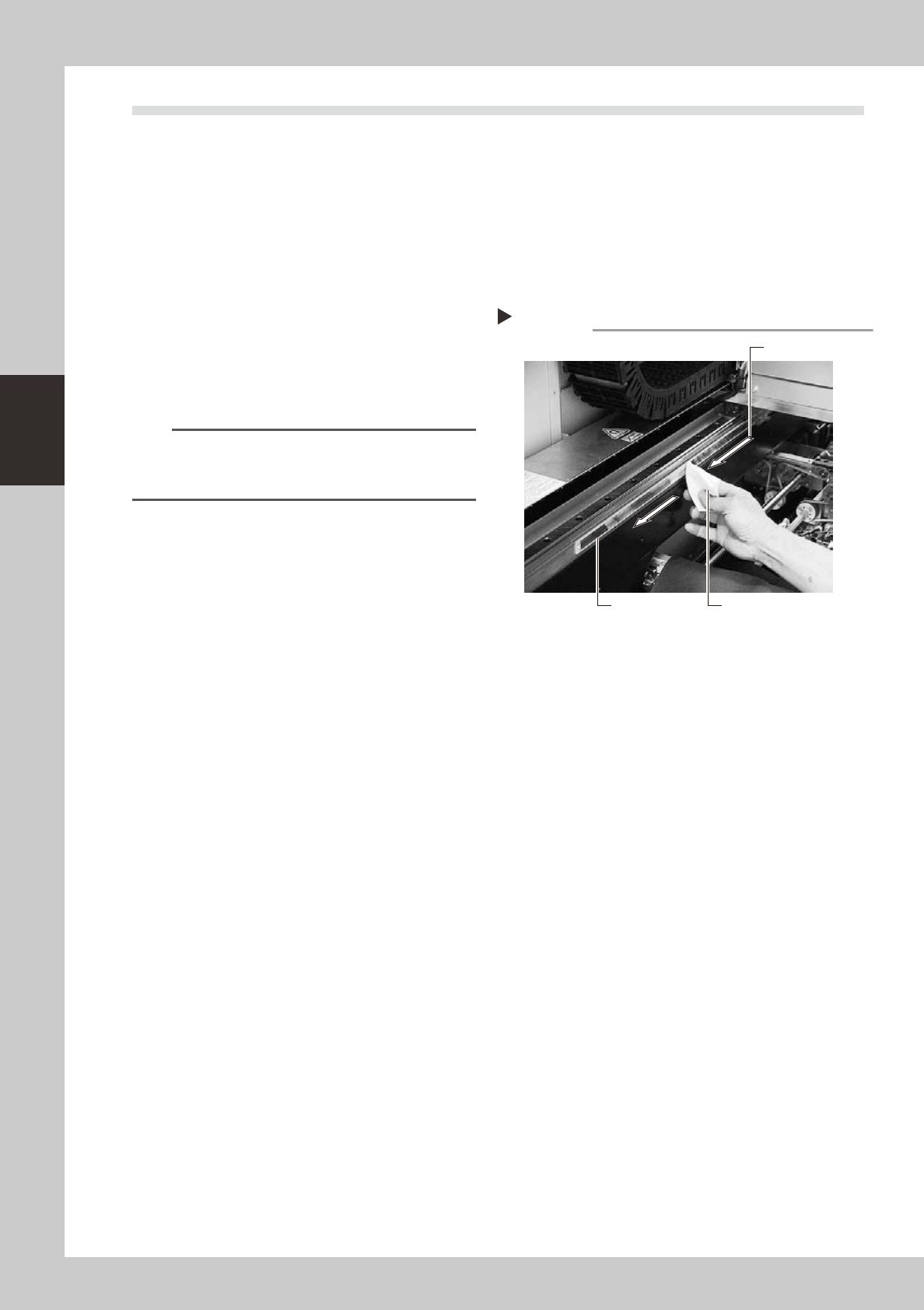

Step 2
Cleaning the scale tape
Wipe in one direction.
Scale tape Paper wipe
3-7
3
Periodic maintenance items
2. Monthly or bimonthly inspection
This section mainly explains the cleaning and lubrication procedures after inspection.
2.1 Cleaning the nozzle air path (monthly)
e
1
Remove the nozzle from the head.
Always first press the emergency stop button
and then remove the nozzle from the head.
The machine must be in emergency stop to
ensure safety during work.
c
When the machine is equipped with a nozzle station
nozzle station after cleaning.
2
Blow air through the nozzle.
Using an air blow tool, blow air through the
nozzle from the nozzle tip and then from the
other end.
53310-L2-00
n
NOTE
If there are dust deposits in the nozzle, perform steps 3
and 4.
3
Clean the nozzle hole.
Pass the nozzle cleaning wire through the
nozzle hole and clean the nozzle hole. While
holding both ends of the wire with fingers as
shown or using a custom handle (option),
gently move the nozzle back and forth.
53311-L2-00
4
Blow air onto the nozzle tip again.
After removing the cleaning wire, blow air
through the nozzle with the air blow tool, just
as in step 2.
53312-L2-00
Following the nozzle cleaning above, check and
clean the spring-action parts. (See 1.1.1, "Checking
and cleaning the spring-action parts" described
earlier in this chapter.)

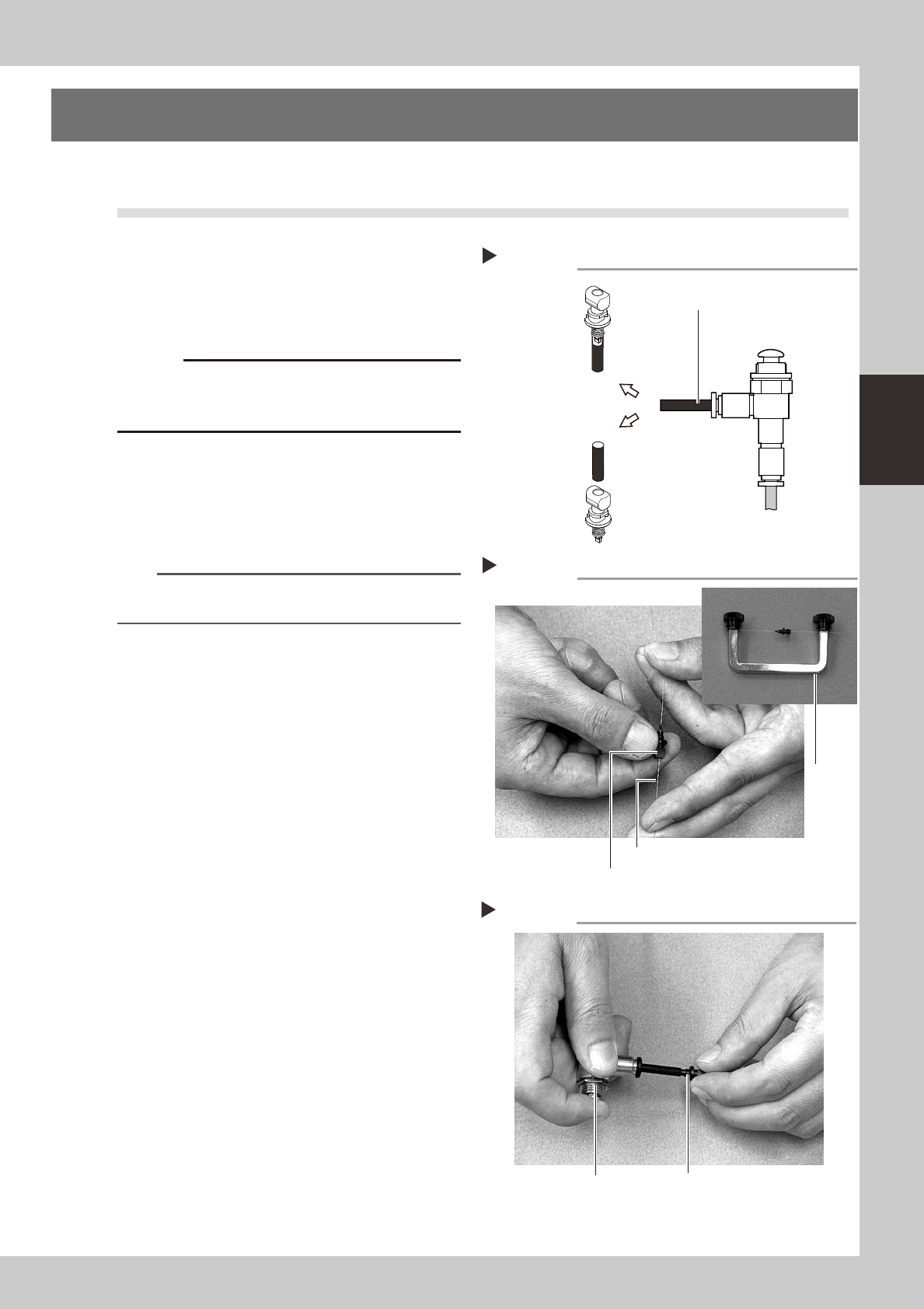

Air blow
Step 2
Air tube (black)
Air blow tool
(option)
Air tube (orange) connected to
air supply port
Insert the
nozzle tip into
the air tube and
blow air.
Blow air from the
nozzle attachment
side.
Cleaning a nozzle
Step 3
Custom
handle
(option)
Nozzle
Nozzle cleaning wire
Air blow
Step 4
NozzleAir blow gun (option)
3-8
3
Periodic maintenance items
2.2 Inspecting each axis (monthly)
Inspect the ball screws on the X, W, U, and PU axes and the linear guides on the X, Y, W, and U axes. The
checkpoints are listed below.
n
NOTE
A grease spattering prevention cover is attached to the X-axis. Before starting the inspection work, detach this grease
spattering prevention cover while referring “Detaching grease spattering prevention cover” described later on.
Checkpoints
1. Any foreign matter adhering to the ball screws and linear guides?
Check if any fallen chips have adhered to the X and Y axis ball screws and/or X, Y and W axis linear guides.
2. Do the ball screws and linear guides have the correct amount of grease?
Check if grease has flowed off or splattered in the air failing to adhere. Also check if grease has discolored or hardened.
e
3. Any abnormal sounds from the ball screws?
Press the emergency stop button. Then check for any abnormal sounds while pressing the X-axis by hand.
Countermeasures
1. Ball screws and linear guides may be damaged when chips and other material bite into them. If chips are adhering,
wipe them off along with the grease or remove with tweezers, etc.
2. Apply grease while referring “Cleaning and lubrication” described later on.
3. Consult your YAMAHA sales office or representative when abnormal sounds occur even after trying the
countermeasures in the above steps 1 and 2.
c
