No. Item Code No. Specifica ti on Description Typ e Q’TY Remark 1 V085-1 10000-A MAIN FRAME Part 1 2 V030-1 14010-A MACHINE FOOT (PITCH1.5) Assembly 4 1.1. 3 V085-1 10001-A MAIN FRAME PLATE Part 1 4 V085-9 20016-A CE NTE…

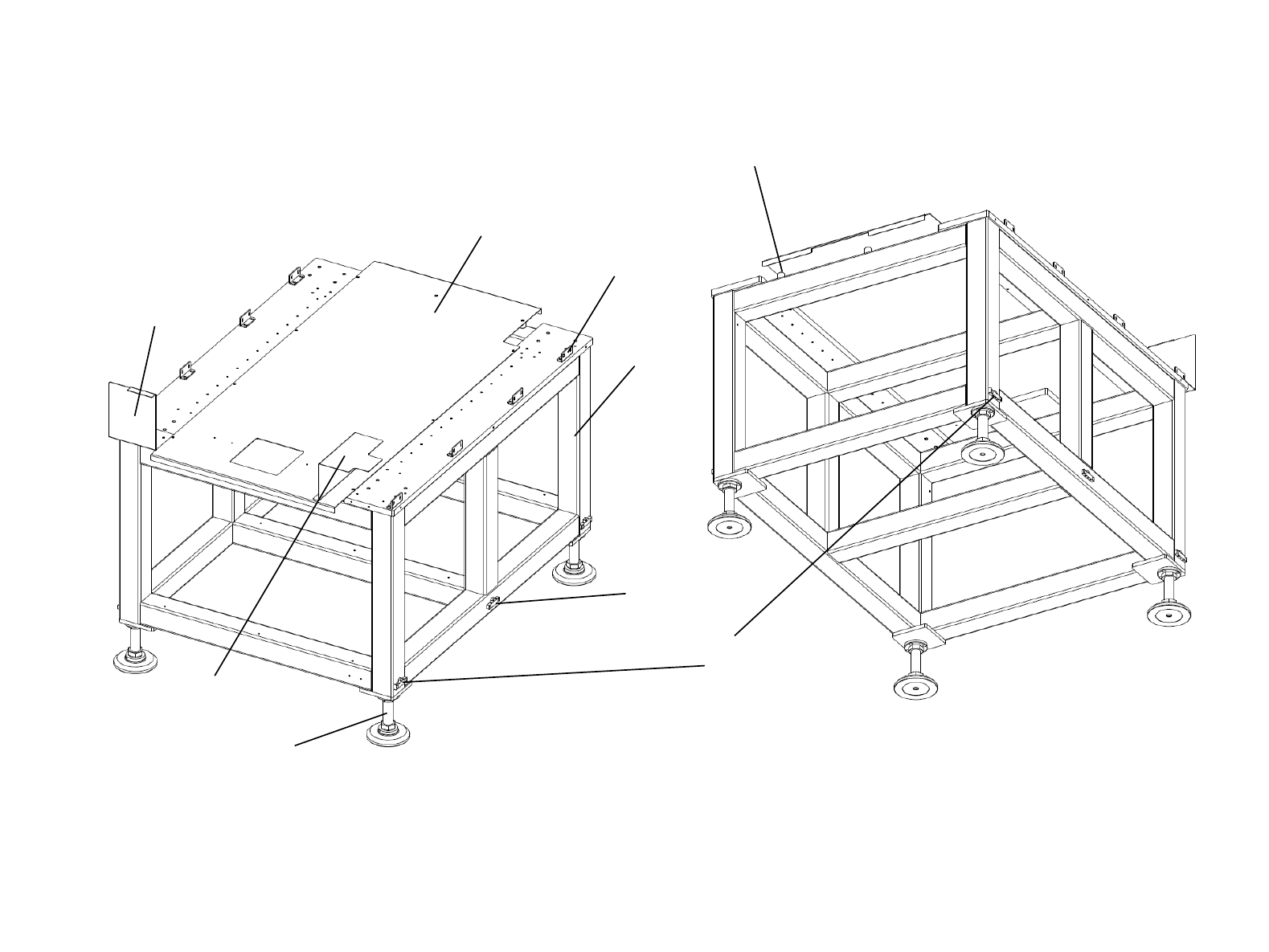

1. FRAME
10
1
2
6
4
5
7
8
9
3
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-110000-A MAIN FRAME Part 1
2 V030-114010-A MACHINE FOOT (PITCH1.5) Assembly 4 1.1.
3 V085-110001-A MAIN FRAME PLATE Part 1
4 V085-920016-A CENTER L JOINT BKT Part 8
5 A010-920063-A BOTTOM BLOCK Part 4
6 A010-920062-A RIGHT FIX BLOCK Part 2
7 V080-L11011-A CABLE COVER Part 1
8 V080-L11010-B MONITOR CABLE COVER Part 1
9 A010-111010-A FRAME PLATE SUPPORT Part 2
1. FRAME
11

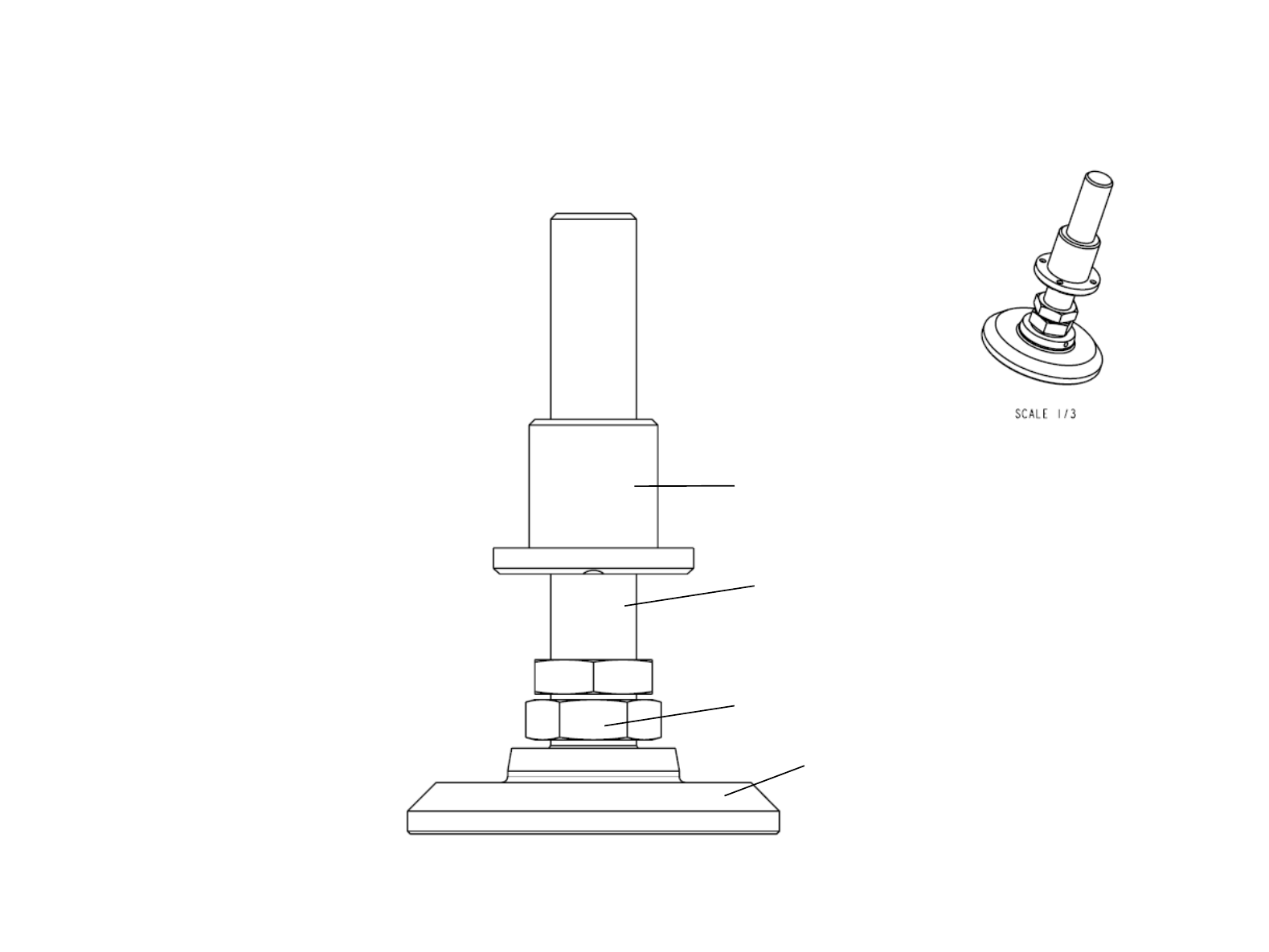

1.1. MACHINE FOOT
2
1
3
4
12
