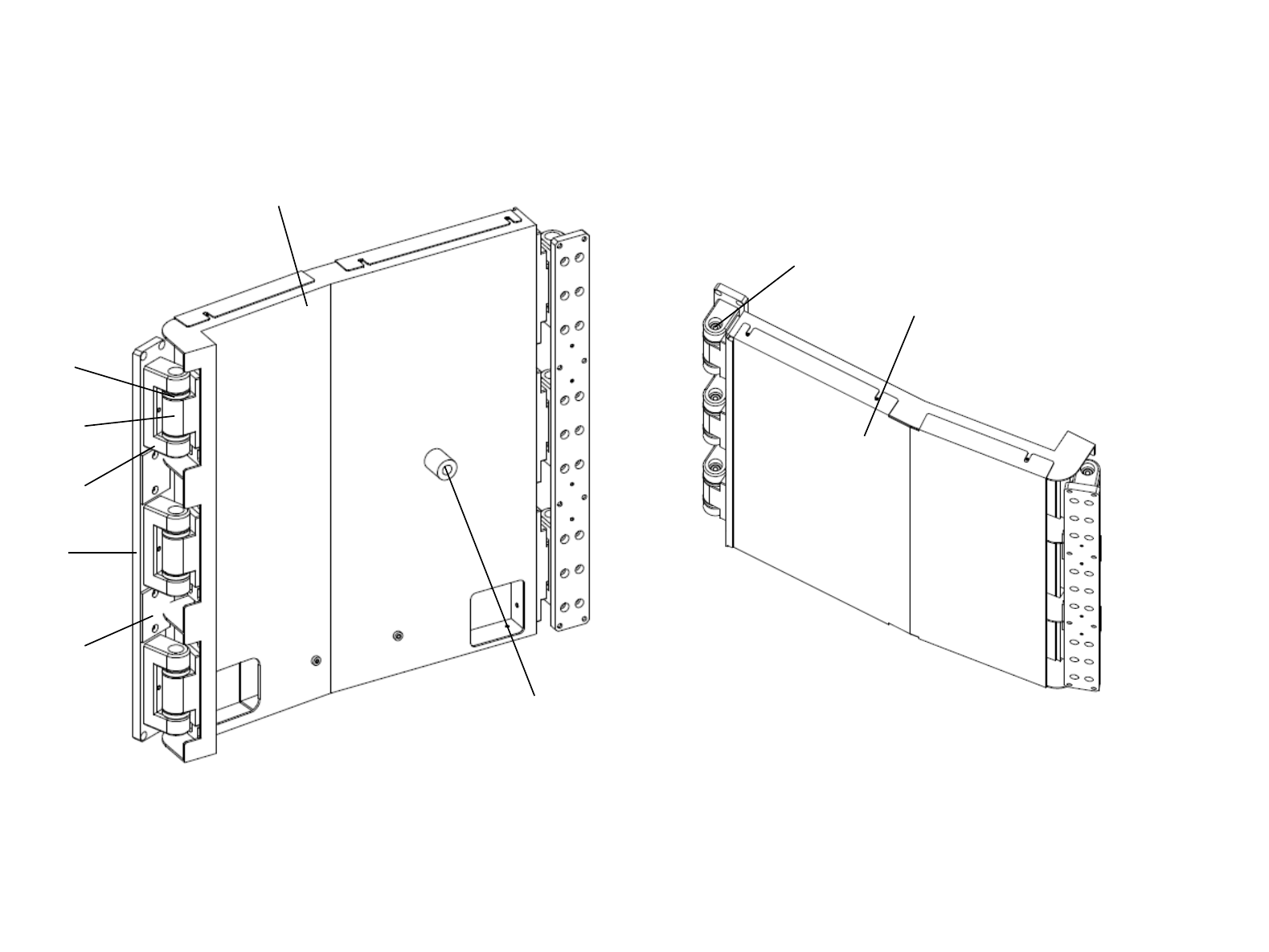

5.4.1 MONITOR HINGE UNIT
2
3
4
5
6
7
9
8
123
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-920013-B ANGLE PLATE Part 1
2 M090-910010-A HINGE SPACER Part 12
3 M090-910009-A HINGE BLOCK 02 Part 6
4 M090-910008-A HINGE BLOCK 01 Part 6
5 V085-910001-B HINGE BASE BLOCK Part 2
6 V085-910009-A URETHAN Part 2
7 V085-910007-A DOOR STOPPER Part 1
8 V085-920022-B ANGLE PLATE COVER Part 1
9 V085-910010-A HINGE SHAFT Part 6
5.4.1 MONITOR HINGE UNIT
