KY8030-2XDL(2P) Part List.pdf - 第116页
No. Item Code No. Spec ification Description Ty pe Q ’TY Remark 1 V085-9 20001-B SIDE RI GHT COVER Part 1 2 V085-9 20024-A REPAIR WINDOW Part 1 3 V085-9 10002-A DOOR SUPPORT Part 2 4 6090 22-000003 F6-1 HINGE Part 2 5 V0…
5.1 RIGHT COVER UNIT
1
2
4
3
A
B
C
A
B
C
5
6
7
8
9
115
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-920001-B SIDE RIGHT COVER Part 1
2 V085-920024-A REPAIR WINDOW Part 1
3 V085-910002-A DOOR SUPPORT Part 2
4 609022-000003 F6-1 HINGE Part 2
5 V085-920012-B MAGNET BRACKET 2 Part 2
6 609027-000002 56x16x12 TOP MAGNET CATCH Part 2
7 V085-920029-A MAGNET BRACKET 3 Part 1
8 609027-000008 KC-312-2-1-A BALL CATCH Part 1
9 V085-920018-A NAME PLATE Part 1
5.1 RIGHT COVER UNIT
116
1
2
D
C
4
5
6
7
8
9
10
B
A
11
C
A

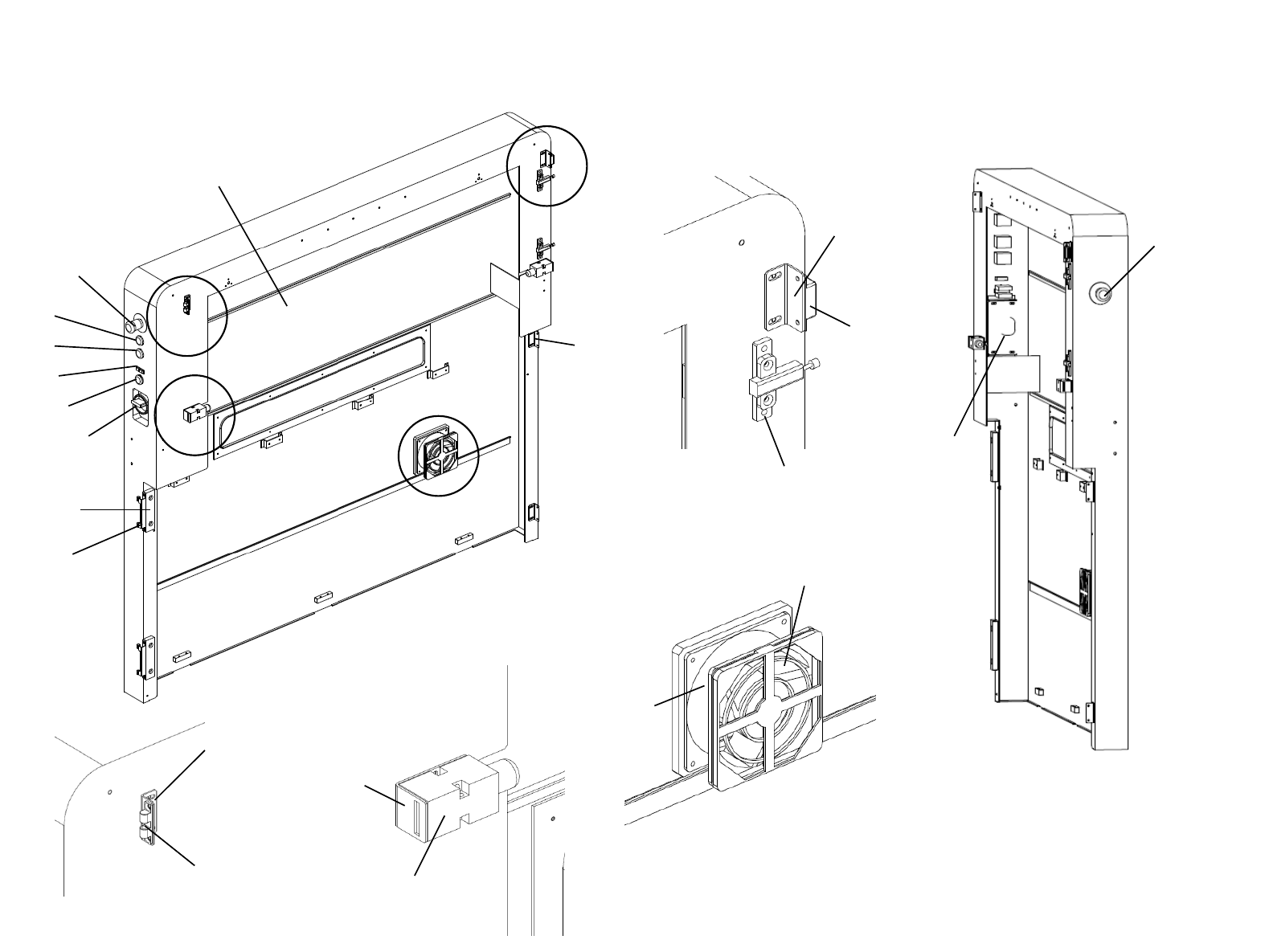

5.2 LEFT COVER UNIT
B
12
13
14
15
11
16
17
3
2
18
19
D
117
