554011-000005 PHOTO SE NSOR PM-Y44 Please complete this page wi th your PO and fax at + 82-2-6343-6140 or e-mail to us at order@kohy oung.com A ttn: Overseas S ales Team
①
①
USING THIS PART LIST

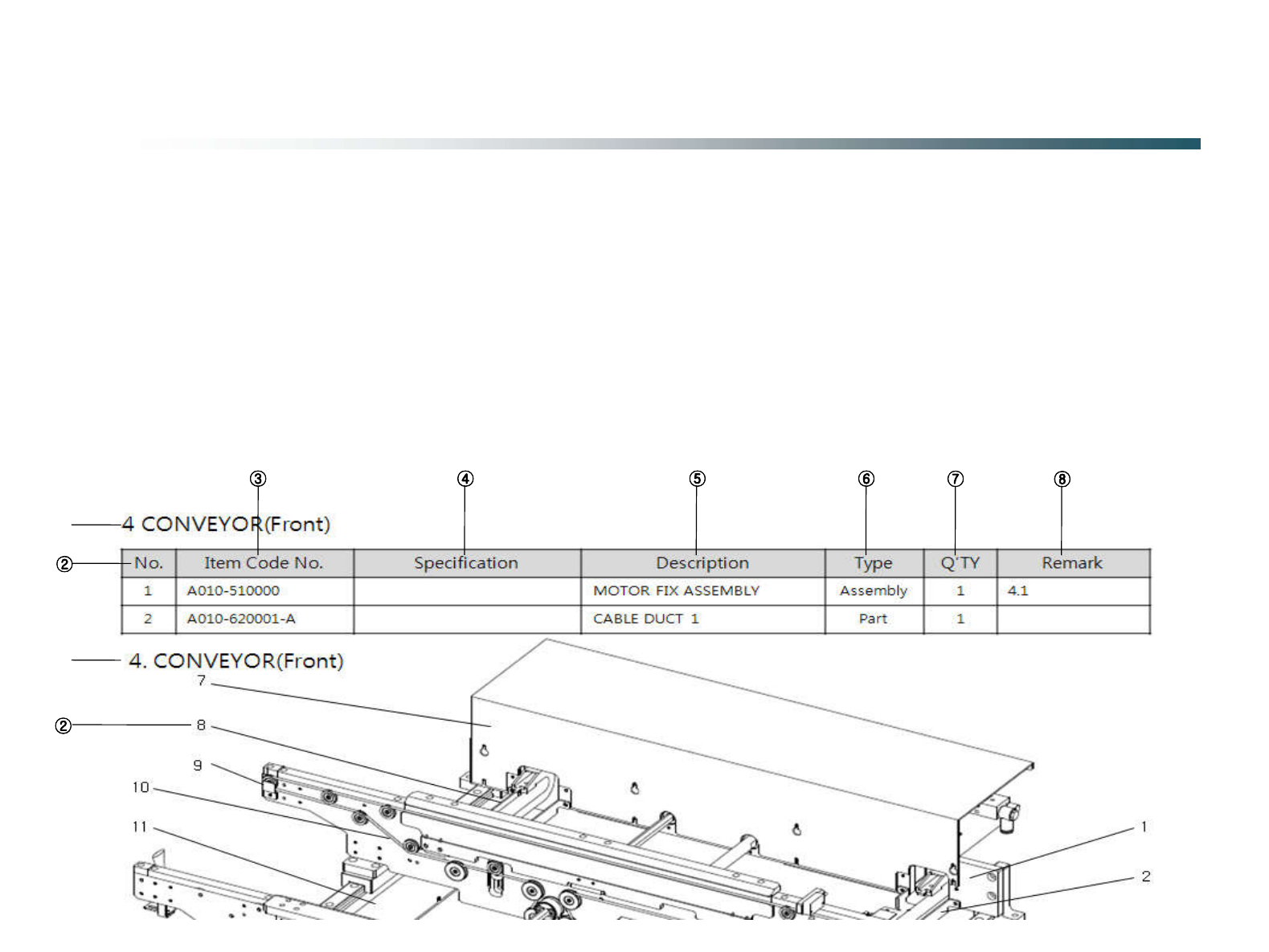

2. Legend
① Main Title
This is the name of the unit in the exploded diagram
② No.
Diagram and list numbers
③ Item Code No.
Manufacturing products code
④ Specification
Part or Assembly Specification
⑤ Description
Part or Assembly Description
⑥ Type
Part Type - Each of the individual components
Assembly Type - Part of the unit consisting of a combination ERE
⑦ Q’TY
Quantity required
⑧ Remark
Remark and Part mark for the Assembly
5
554011-000005
PHOTO SENSOR
PM-Y44
Please complete this page with your PO and
fax at + 82-2-6343-6140 or e-mail to us at
order@kohyoung.com
Attn: Overseas Sales Team
MACHINE PART INDEX
Using This Part List
1. Before Using This Part List -------------------------4
2. Legend ----------------------------------------------5
KY8030-2XDL Machine Composition
----8
1. FRAME----------------------------------------------10
1.1 MACHINE FOOT------------------------------12
1.2 ELECTRIC---------------------------------------14
1.2.1 ELECTRIC BOX-----------------------------16
1.2.1.1 MC CP TB-----------------------------20
1.2.2 ELECTRIC DOOR--------------------------22
1.2.3 MAIN AIR----------------------------------24
2. X GANTRY------------------------------------------26
2.1 X GANTRY FRAME----------------------------28
2.2 Z AXIS PLATE BASE----------------------------30
2.3 Z AXIS MOTOR--------------------------------32
3. Y GANTRY-----------------------------------------34
4. CONVEYOR---------------------------------------37
4.1 FIRST FIX RAIL-------------------------------39
4.1.1 LEFT LM FIX BKT-------------------------43
4.1.2 RIGHT LM FIX BKT-----------------------45
4.1.3 STOPPER----------------------------------47
4.1.4 HEIGHT GUIDE---------------------------49
4.1.5 TENSIONER-------------------------------51
4.1.6 UP/DOWN RAIL--------------------------53
4.1.7 WORK SENSOR---------------------------55
4.1.8 SENSOR 1--------------------------------57
4.1.9 SENSOR2---------------------------------59
4.2. SECOND MOVING RAIL----------------------61
4.2.1 UP/DOWN RAIL 2------------------------65
4.2.2 WORK RING BELT ASSY-----------------67
4.2.3 TENSIONER 2-----------------------------69
4.2.4 LM FIX BKT ------------------------------71
4.3 THIRD MOVING RAIL--------------------------73
4.3.1 UP/DOWN RAIL 3------------------------77
4.4 FOURTH MOVING RAIL-----------------------79
4.4.1 STOPPER 2--------------------------------83
4.5 MOTOR FIX BKT-----------------------------85
4.5.1 MOTOR BKT-----------------------------87
4.5.1.1 MOTOR UNIT 1-----------------91
4.5.1.2 MOTOR UNIT 2-----------------93
4.5.1.3 MOTOR UNIT 3-----------------95
4.5.1. 4 MANIFOLD ASSY--------------------97
4.5.1.5 MOTOR UNIT 1-----------------99
4.5.1.6 MOTOR UNIT 2----------------101
4.5.1.7 MOTOR UNIT 3----------------103
4.5.2 LEFT DISTRIBUTION MODULE---------105
4.5.2.1 FITTING BLOCK---------------------107
4.5.3 RIGHT DISTRIBUTION MODULE-------109
5. COVER---------------------------------------------111
5.1 RIGHT COVER--------------------------------115
5.2 LEFT COVER----------------------------------117
5.3 TOP COVER-----------------------------------119
5.4 FRONT UPPER COVER-----------------------121
5.4.1. MONITOR HINGE-----------------------123
5.5 FRONT LOWER DOOR-----------------------125
5.6 BACK LOWER DOOR-------------------------127
5.7 BACK UPPER DOOR--------------------------129
