P-0196-001.pdf - 第122页
MODEL TCM-3100J-2 0108-001 120 ㇱຠଏ⛎ㇱ FEEDER CARRIAGE SECTION Fig. 5-6 ࠤࡉ࡞ Cable 121 132 131 133 122 1 2 3 Fig.5-6 TCM-3100J-2 See Fig.5-3 Key No.1-2 See Fig.5-3 See Fig.5-3 Key No.99 See Fig.5-3 Key No.1-1 See Fig.5-3 K…
MODEL TCM-3100J-2
0108-001
119
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
5-5
1 630 057 9246 STAY 1 659L--03B-011
6 630 052 1948 STAY 1 659L--03B-010
7 630 004 2108 SENSOR,PELEC 1 PHS42 659L--03H-046
8 411 141 4107 WASHER V 5X10X1 2 FW5
9 411 141 6705 WASHER SPR 5 2 SW5
10 630 000 7756 BOLT,HEX-SCT 2 M5X12
11 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
12 411 141 3001 WASHER SPR 6 2 SW6
13 630 000 7978 BOLT,HEX-SCT 2 M6X60
MODEL TCM-3100J-2
0108-001
120

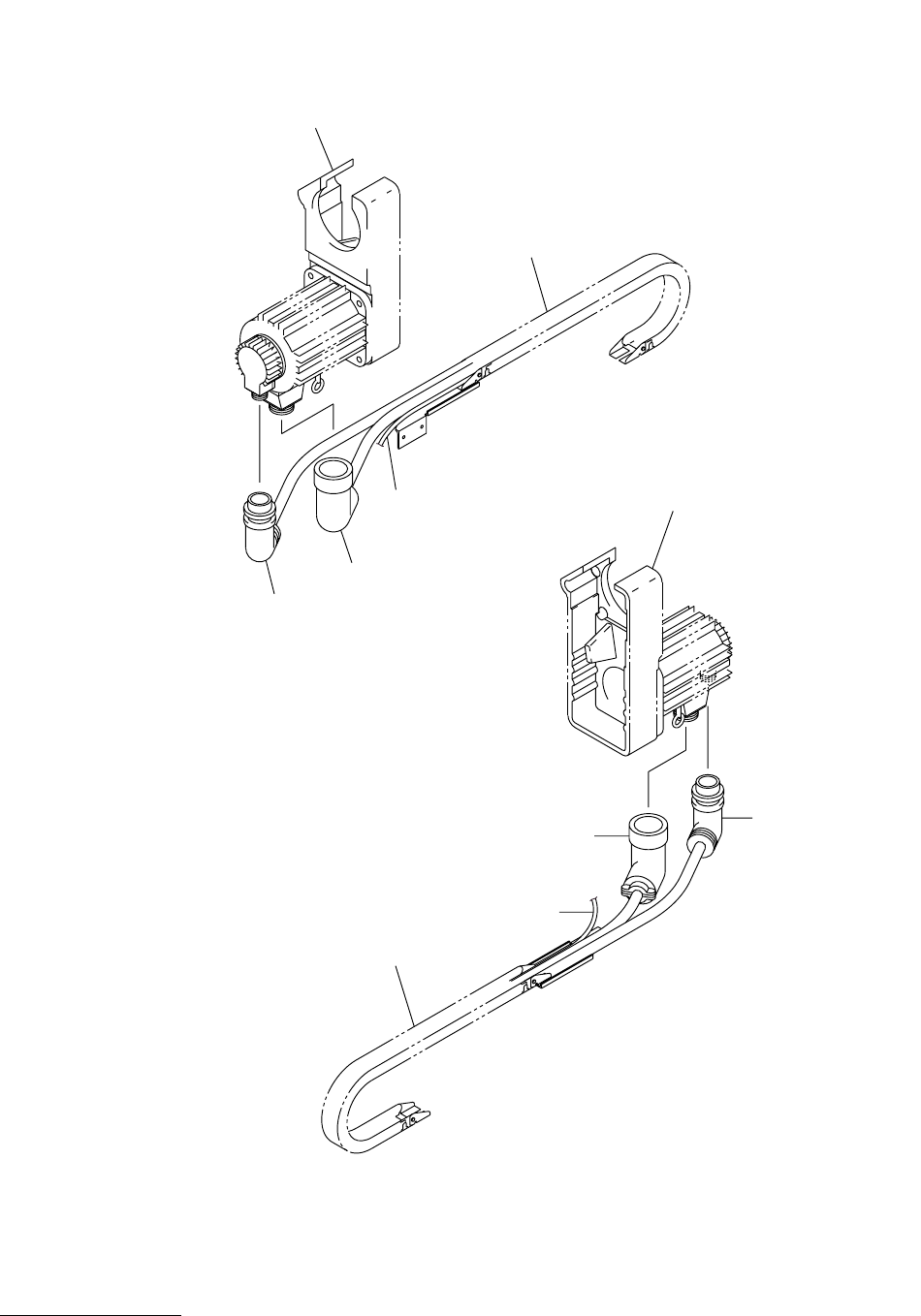

ㇱຠଏ⛎ㇱ FEEDER CARRIAGE SECTION
Fig. 5-6 ࠤࡉ࡞ Cable
121
132
131
133
122
123
Fig.5-6
TCM-3100J-2
See Fig.5-3
Key No.1-2
See Fig.5-3
See Fig.5-3
Key No.99
See Fig.5-3
Key No.1-1
See Fig.5-3
Key No.99
MODEL TCM-3100J-2
0108-001
121
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
5-6
121 630 110 4133 ASSY,CORD (C31 SVM2,3) 1
122 630 095 0175 CORD(C31-R-PG) 1 659FB-03D-805
123 630 076 2044 ASSY,CORD (C30-R1-CH) 1
131 630 110 4133 ASSY,CORD (C30 SVM2,3) 1
132 630 095 0175 CORD(C31-R-PG) 1 659FB-03D-805
133 630 076 2075 ASSY,CORD (C30-R2-CH) 1
