MODEL TCM-3100J-2 0108-001 145 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 6-7 1 630 061 821 1 BR AC KE T 1 659J--03B-048 2 630 000 0252 SE NS OR ,P HO TO 2 PHS105, PHS106 659J--03H-047 3 630 000 0269 SE NSO R,P H O…
MODEL TCM-3100J-2
0108-001
144
㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION

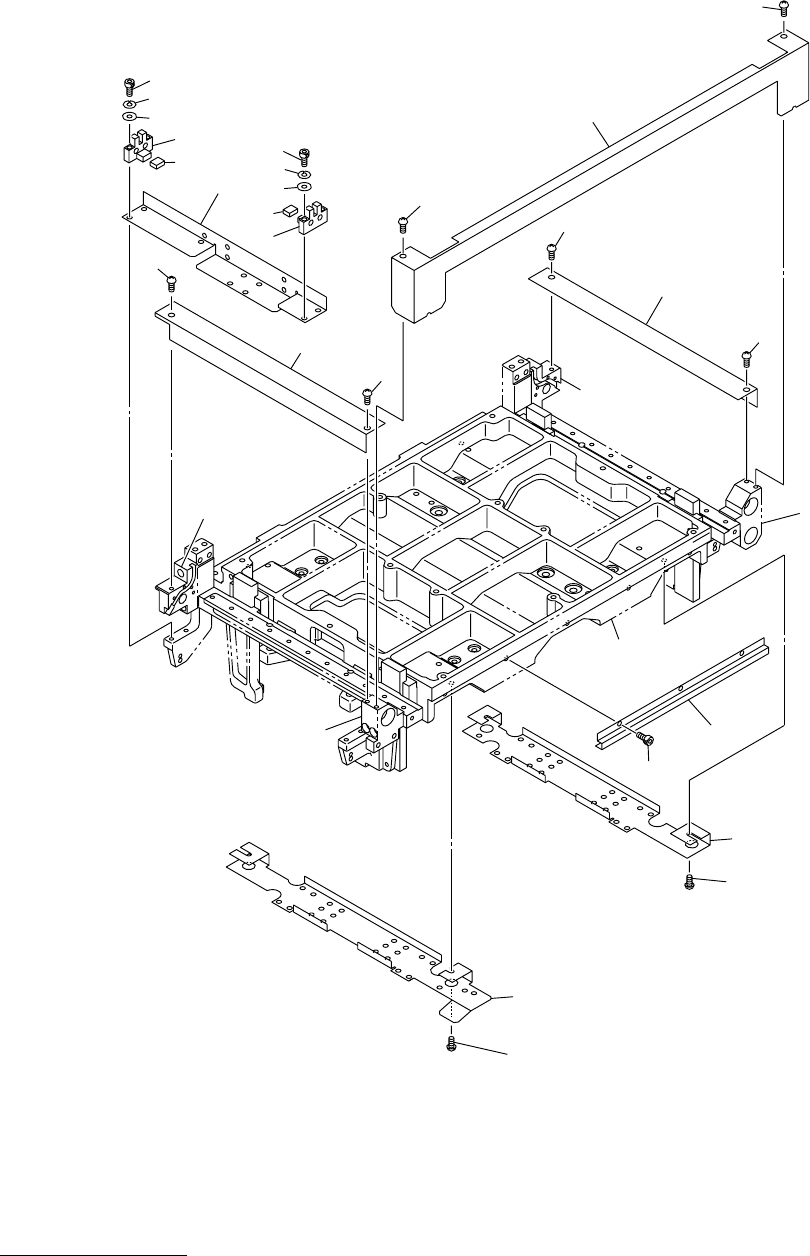

Fig. 6-7 ࠪࡘ࠻ࠞࡃ Chute Cover
6
5
4
2
3
1
See Fig.6-6
See Fig.6-6
Key No.46
See Fig.6-6
See Fig.6-6
Key No.45
Key No.45
See Fig.6-6
Key No.6
See Fig.6-3
Key No.1
See Fig.6-6
See Fig.6-6
Key No.5
6
10
11
11
11
5
4
3
2
8
9
9
9
26
26
27
22
22
23
23
9
7
21
21
23
23
MODEL TCM-3100J-2
0108-001
145
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-7
1 630 061 8211 BRACKET 1 659J--03B-048
2 630 000 0252 SENSOR,PHOTO 2 PHS105, PHS106 659J--03H-047
3 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 659J--03H-048
4 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
5 411 086 4408 WASHER SPR 3 4 SW3 F
6 630 000 7534 BOLT,HEX-SCT 4 M3X12
7 630 061 2462 COVER 1 659J--03B-046
8 630 061 2486 COVER 1 659J--03B-052
9 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
10 630 061 8204 COVER 1 659J--03B-047
11 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
21 630 061 8235 PLATE 1 659J--03B-056
22 630 061 8242 PLATE 1 659J--03B-057
23 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
26 630 061 5036 PLATE 1 659J--03B-058
27 630 000 7602 BOLT,HEX-SCT 3 M4X6
MODEL TCM-3100J-2
0108-001
146
㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. 6-8 ㈩✢ᡰᜬㇱ Wiring Support
1
1
2
2
2
2
A
A
22
22
111
See Fig.6-4
See Fig.6-4
Key No.112
23
24
24
See Fig.6-2
Key No.1
21
21
25
25
113
116
115
113
115
116
26
26
26
Fig.6-8
TCM-3100J-2
TCM-3000Z-2
