MODEL TCM-3100J-2 0108-001 92 1 2 3 4 5 6 7 8 21 21 22 22 2 3 24 24 2 5 2 6 27 27 2 8 2 9 3 0 3 6 39 39 40 40 3 7 3 8 3 1 32 32 3 4 3 5 3 3 4 1 42 42 43 43 1 0 1 1 1 2 See Fig.3-12 Key No.21 See Fig.4-1 Key No.16 3 6 9 2…
MODEL TCM-3100J-2
0108-001
91
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-6
1 630 071 6474 SUPPORT 2 659E--03B-020
2 630 057 3572 PIN,HINGE 2 659E--03B-029
3 630 069 6158 LEVER 2 659E--03B-028
7 411 141 4008 WASHER V 4X9X0.8 2 FW4
8 411 141 2905 WASHER SPR 4 2 SW4
9 411 141 0307 NUT HEX 4 2 M4
12 630 000 0290 SENSOR,PROXIMITY 2 PXS22, PXS23 659E--03H-002
13 411 141 3902 WASHER V 3X7X0.5 4 FW3
14 411 141 2806 WASHER SPR 3 4 SW3
15 630 000 7510 BOLT,HEX-SCT 4 M3X8
16 411 141 4107 WASHER V 5X10X1 4 FW5
17 411 141 6705 WASHER SPR 5 4 SW5
18 630 000 7770 BOLT,HEX-SCT 4 M5X20
MODEL TCM-3100J-2
0108-001
92
1
2
3
4
5
6
7
8
21
21
22
22
23
24
24
25
26
27
27
28
29
30
36
39
39
40
40
37
38
31
32
32
34
35
33
41
42
42
43
43
10
11
12
See Fig.3-12
Key No.21
See Fig.4-1
Key No.16
36
9
21
22
23
24
25
26
27
27
28
29
29
30
30
36
37
37
38
31
32
34
35
35
33
41
42
42
43
43
36
46
47
48
48
47
48
47
47
48
48
47
48
39
40
46
46

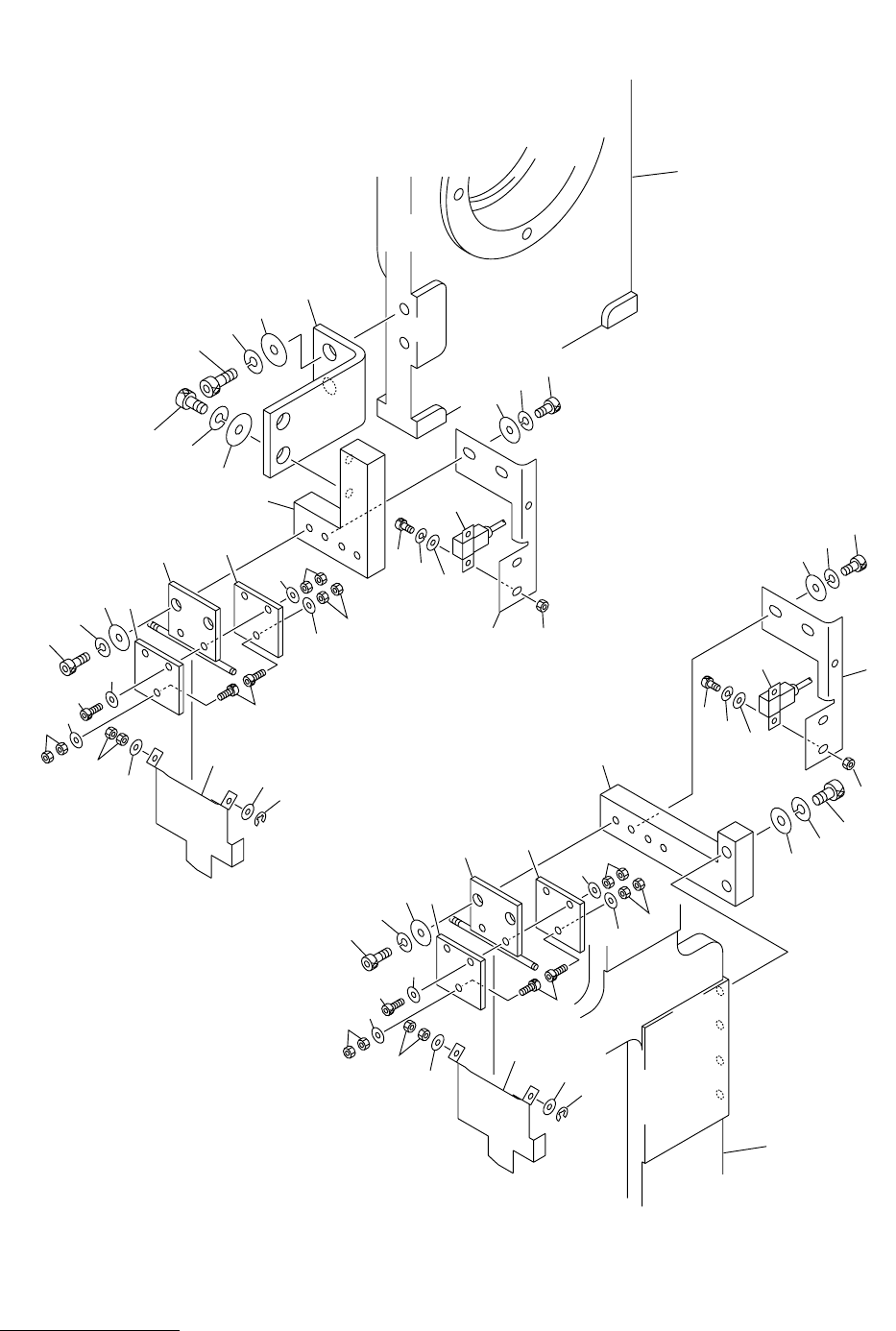

Fig.4-7
TCM-3100J-2
TCM-3100J
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. 4-7 ࠪ࡞ࠛ࠶࠻࠹ࡦࡊ࠻ Silhouette Template
MODEL TCM-3100J-2
0108-001
93
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-7
1 630 048 7657 SUPPORT 1 659E--03B-017
2 630 001 0220 WASHER 2 659E--03H-008
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7770 BOLT,HEX-SCT 2 M5X20
5 630 048 7664 SUPPORT 1 659E--03B-018
6 630 001 0220 WASHER 2 659E--03H-008
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7770 BOLT,HEX-SCT 2 M5X20
9 630 048 7640 SUPPORT 1 659E--03B-016
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7770 BOLT,HEX-SCT 2 M5X20
21 630 038 6992 BRACKET 2 659E--03B-030
22 630 000 0290 SENSOR,PROXIMITY 2 PXS17, PXS18 659E--03H-002
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 141 2806 WASHER SPR 3 4 SW3
25 630 000 7527 BOLT,HEX-SCT 4 M3X10
26 411 140 9905 NUT HEX 3 4 M3
27 630 001 0213 WASHER 4 659E--03H-007
28 411 141 2905 WASHER SPR 4 4 SW4
29 630 000 7640 BOLT,HEX-SCT 4 M4X14
30 630 040 4609 PLATE 2 659E--03B-031
31 630 040 4593 PLATE 2 659E--03B-032
32 411 141 3902 WASHER V 3X7X0.5 2 FW3
33 411 000 9304 RING E 2 2 659E--03H-006
34 411 141 3902 WASHER V 3X7X0.5 2 FW3
35 411 141 0109 NUT HEX 3 4 M3-3
36 630 062 8647 SHEET 4 659E--03B-033
37 411 141 3902 WASHER V 3X7X0.5 4 FW3
38 630 000 7558 BOLT,HEX-SCT 4 M3X16
39 411 141 3902 WASHER V 3X7X0.5 4 FW3
40 411 140 9905 NUT HEX 3 8 M3
41 630 001 0213 WASHER 4 659E--03H-007
42 411 141 2905 WASHER SPR 4 4 SW4
43 630 000 7640 BOLT,HEX-SCT 4 M4X14
46 630 000 7510 BOLT,HEX-SCT 4 M3X8
47 411 141 3902 WASHER V 3X7X0.5 4 FW3
48 411 141 0109 NUT HEX 3 8 M3-3
