MODEL TCM-3100J-2 0108-001 97 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 4-9 1 -1 630 048 8647 CO LLA R(0 .5 ) 4 659EB-03B-103 1 -2 630 048 8630 CO LLA R(0 .1 ) 16 659EB-03B-104 2 630 048 8623 BASE(SCOPE XY) 1 659E…
MODEL TCM-3100J-2
0108-001
96
2
5
4
3
1-2
1-1
2-1
16
26
26
25
25
24
24
17
42
41
18
19
19
20
23
22
21
12
11
11
13
14
15
32-1
32-1
32
28
28
29
29
30
30
27
27
32-1
32
See Fig.1-1
See Fig.1-1
Key No.13
.
.
31-1
31-1
31
31
.
37
38
39
34
35
36
12
40
33

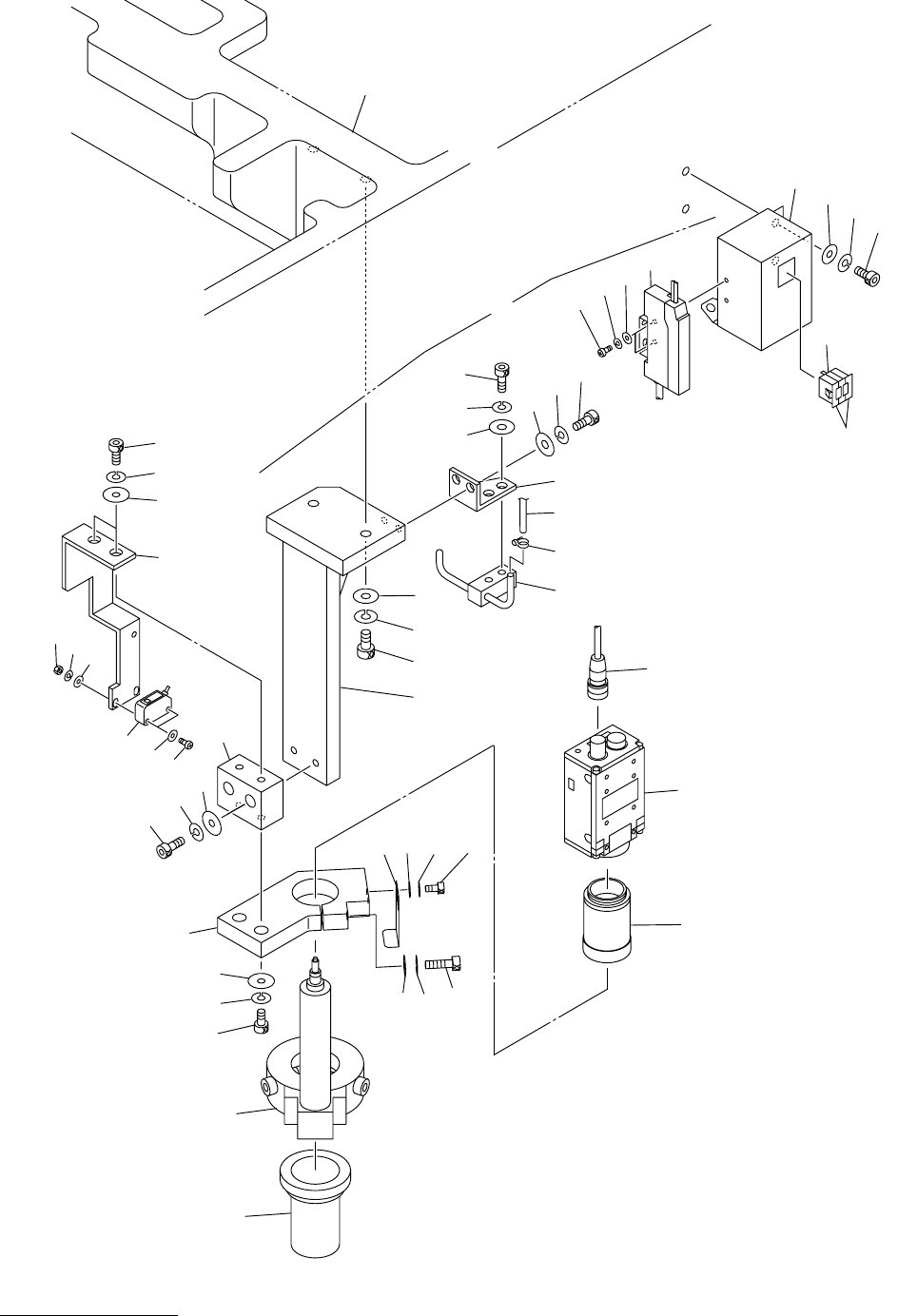

Fig.4-9
TCM-3100J-2
TCM-3000Z-2
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. 4-9 ㇱຠ⼂ࠞࡔ Recognition Camera
MODEL TCM-3100J-2
0108-001
97
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-9
1 -1 630 048 8647 COLLAR(0.5) 4 659EB-03B-103
1 -2 630 048 8630 COLLAR(0.1) 16 659EB-03B-104
2 630 048 8623 BASE(SCOPE XY) 1 659EB-03B-101
2 -1 630 048 9354 PIN,LOCATE 2 659EB-03H-036
3 630 001 0244 WASHER 4 659EB-03H-035
4 411 141 3100 WASHER SPR 8 4 SW8
5 630 000 8043 BOLT,HEX-SCT 4 M8X35
11 630 051 8740 LIGHTING UNIT 1 #SRP33W-1500S 659R--03D-010
12 630 099 6371 ASSY,SCOPE UNIT 1 #KD-6525U
12 -1 630 085 9331 SCOPE UNIT 1 #KD-6525 659R--03D-009
12 -2 630 085 9362 UNIT,CAMERA 2 #CS8311B-01 659R--03D-008
13 411 141 3902 WASHER V 3X7X0.5 3 FW3
14 411 141 2806 WASHER SPR 3 3 SW3
15 630 000 7527 BOLT,HEX-SCT 3 M3X10
16 630 052 3140 UNIT(XY TABLE) 1 PM17(SX), PM18(SY), PHS1-8
659EB-03H-024
17 630 048 8654 BRACKET 1 659EB-03B-102
18 411 141 4107 WASHER V 5X10X1 2 FW5
19 411 141 6705 WASHER SPR 5 2 SW5
20 630 000 7763 BOLT,HEX-SCT 2 M5X16
21 411 141 4107 WASHER V 5X10X1 4 FW5
22 411 141 6705 WASHER SPR 5 4 SW5
23 630 000 7770 BOLT,HEX-SCT 4 M5X20
24 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
25 411 141 3001 WASHER SPR 6 4 SW6
26 630 000 7893 BOLT,HEX-SCT 4 M6X20
27 630 057 5576 PLATE 1 659BD-03V-002
28 411 141 4107 WASHER V 5X10X1 3 FW5
29 411 141 6705 WASHER SPR 5 3 SW5
30 630 000 7749 BOLT,HEX-SCT 3 M5X10
31 630 061 1939 LIGHTING UNIT 1 (SOL1), #MHF-D100LSO-2
659R--03D-013
31 -1 630 036 8642 LAMP 1 LAMP1
32 630 061 1946 LIGHTING UNIT 2 (SOL2), #MHF-D-100LSC-2
659R--03D-014
32 -1 630 036 8642 LAMP 1 LAMP2, LAMP3
33 630 051 1338 BRACKET 1 659L--03B-017
34 411 141 3605 WASHER V 2X5X0.3 8 FW2 F
35 411 141 2509 WASHER SPR 2 8 SW2 F
36 411 140 6300 SCR PAN 2X8 8 M2X8 PAN
37 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
38 411 141 3001 WASHER SPR 6 2 SW6
39 630 000 7879 BOLT,HEX-SCT 2 M6X12
40 630 094 2811 CORD 2 CN151-CN67, CN152-CN68
659R--03D-003
41 411 086 9809 WASHER IN TW 3 1
42 411 114 7005 SCR PAN+SW+W 3X8 1
MODEL TCM-3100J-2
0108-001
98
See Fig.1-1
Key No.13
1
2
3
4
5
6
7
50
49
48
41
41
47
46
46
45
42
43
43
44
8
10
11
11
12
9
20
21
22
22
23
17
17
18 19
16-116
.
15
15
14
13
13
24
31
37
36
32
33
34
35
35
34
33
58
51
51
59
60
56
57
57
52
52
53
54
55
Fig.4-10
TCM-3100J-2
TCM-3000Z-2
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. 4-10 ၮ᧼⼂ࠞࡔ P.E.C. Camera
