MODEL TCM-3100J-2
0108-001
124
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-1
49 630 053 8076 MECH PARTS(URETHANES) 1 659J--03H-012
50 630 000 8012 BOLT,HEX-SCT 1 M8X20
51 630 053 1046 GUIDE,LINEAR 2 659J--03H-003
52 630 000 7770 BOLT,HEX-SCT 32 M5X20
53 630 053 1022 GUIDE,LINEAR 2 659J--03H-005
54 411 141 0703 NUT HEX 6 2 M6
55 630 053 8113 BOLT,HEX 2 659J--03H-028
56 411 141 4008 WASHER V 4X9X0.8 8 FW4
57 411 141 2905 WASHER SPR 4 8 SW4
58 630 000 7664 BOLT,HEX-SCT 8 M4X20
59 630 053 3309 PLATE 1 659J--03B-009
60 630 053 8106 MECH PARTS (STOP PINS) 1 659J--03H-027
61 411 141 4107 WASHER V 5X10X1 4 FW5
62 411 141 6705 WASHER SPR 5 4 SW5
63 630 000 7770 BOLT,HEX-SCT 4 M5X20
64 630 053 2050 HOLDER 1 659J--03B-011
65 411 141 4107 WASHER V 5X10X1 2 FW5
66 411 141 6705 WASHER SPR 5 2 SW5
67 630 000 7763 BOLT,HEX-SCT 2 M5X16
74 630 059 8001 PLATE 1 659J--03B-026
75 630 001 0220 WASHER 2 659J--03H-025
76 411 141 6705 WASHER SPR 5 2 SW5
77 630 000 7770 BOLT,HEX-SCT 2 M5X20
78 630 000 3291 SWITCH,MICRO 1 LS15 659J--03H-022
79 630 000 0375 ACCESSORY,SW 1 659J--03H-023
80 411 141 4008 WASHER V 4X9X0.8 2 FW4
81 411 141 2905 WASHER SPR 4 2 SW4
82 630 000 7688 BOLT,HEX-SCT 2 M4X30
91 630 001 0251 WASHER 8 659J--03H-024
92 411 141 3209 WASHER SPR 10 8 SW10
93 630 000 8166 BOLT,HEX-SCT 8 M10X50
94 630 053 1220 CYLINDER 1 SV24A, SV24B 659J--03H-010
95 630 003 5223 AIR LINE EQPT 2 659J--03H-011
96 630 064 8294 ROD 1 659J--03B-010
97 411 141 1403 NUT HEX 12 1 M12-3
98 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
99 411 141 3001 WASHER SPR 6 2 SW6
100 630 000 7886 BOLT,HEX-SCT 2 M6X16
MEMO
MODEL TCM-3100J-2
0108-001
126

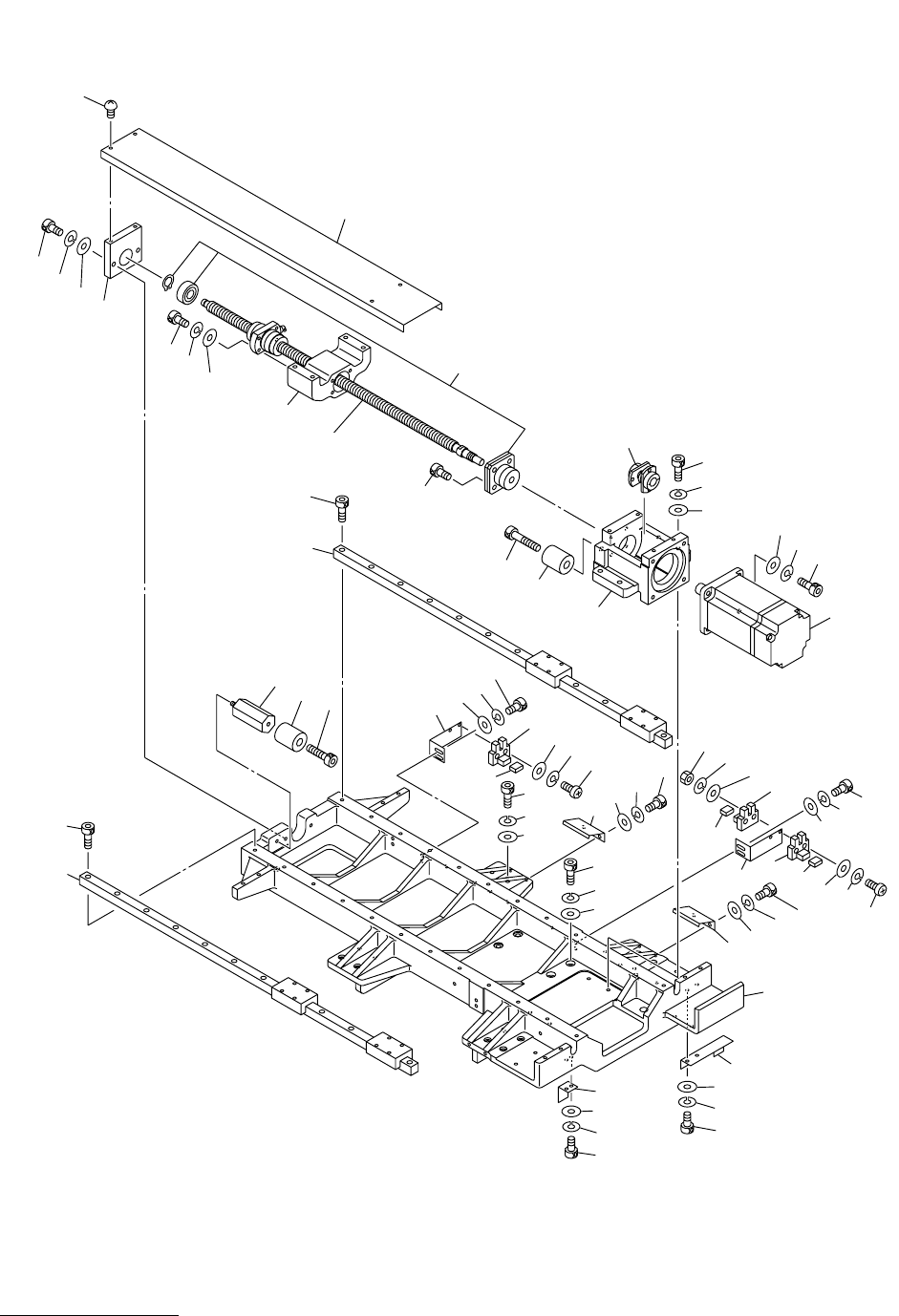

㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. 6-2 㨅ゲ Y Axis
1
3
61
61
9
13-2
12
10
16
15
14
7
10
9
11
11
12
13-1
11
11
9
11
11
12
13
93
93
10
10
92
92
52
52
51
51
52
44
44
45
45
33
32
31
31
30
25
24
23
21
51
91
91
96
96
16
16
20
38
46
47
47
26
27
19
18
40
40
41
42
39
39
15
14
6
48
49
50
95
95
94
94
62
62
63
64
61
62
62
63
64
4
5
2-1
3
4
5
2
17
22
22
Fig.6-2
TCM-3100J-2
