MODEL TCM-3100J-2 0108-001 219 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 11 - 1 3 1 630 062 0689 P LA T E 1 659F B- 03V -00 7 2 630 059 2207 S T A Y 4 659FB-03V-01 1 3 630 091 9318 P LA T E 1 659F B- 03V -00 8 4 4…
MODEL TCM-3100J-2
0108-001
218

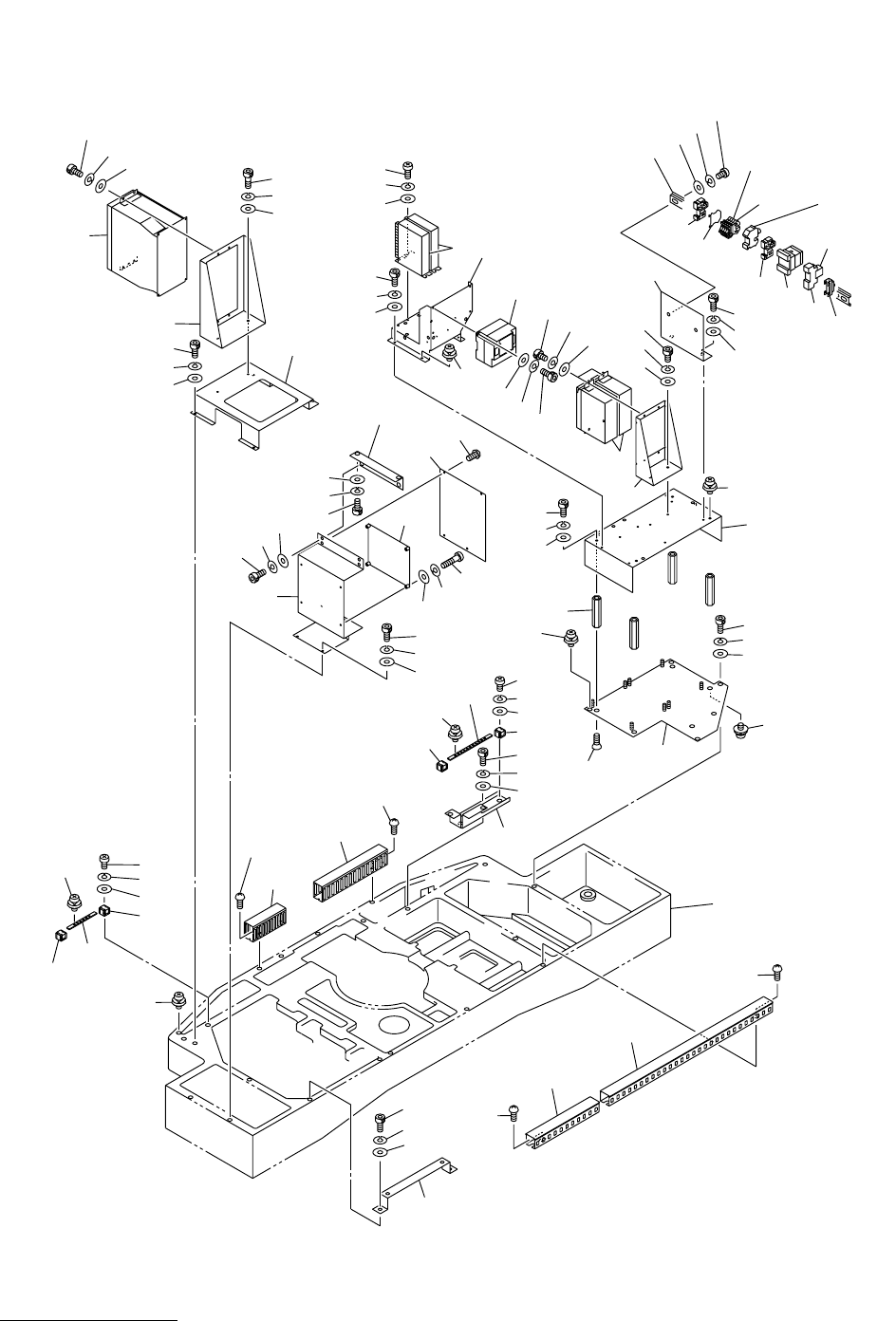

㔚᳇ᓮㇱ ELECTRICAL SECTION
Fig.11-13
ᯏ᪾ᑫࠅ 2 (ࡌࠬ㕙ㇱ㧕
Miscellaneous Parts-2
Fig.11-13
TCM-3100J-2
45
54-6
54-6
54-2
54-4
54-1
.
54-9
54-9
54-5
54-5
.
54-3
54-3
49
53
52
51
41
16
15
14
12
6-2
6-2
3
73
72
71
6-2
6-1
1
11
6
70
90
90
89
77
78
78
84
84
86
87
87
88
85
83
83
82
82
124
126
126
121
125
123
123
122
129
128
127
109
109
109
107
108
134
133
132
131
135
135
136
136
131
131
140
104
104
103
103
102
102
101
109
105
106
109
See Fig.1-1
Key No.13
Key No.13
120
120
121
79
79
80
80
98
98
92-1
92
95
94
93
93
91
92-4
92-4
92-3
92-2
7
26
26
29-1
29-1
31
31
32
32
33
33
19
19
30
18
17
17
10
9
8
29
28
27
97
97
96
96
82
83
83
84
81
81
5
4
2
46
47
.
54-6
54-6
48
48
50
44
43
42
MODEL TCM-3100J-2
0108-001
219
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-13
1 630 062 0689 PLATE 1 659FB-03V-007
2 630 059 2207 STAY 4 659FB-03V-011
3 630 091 9318 PLATE 1 659FB-03V-008
4 411 141 4107 WASHER V 5X10X1 3 FW5
5 411 141 6705 WASHER SPR 5 3 SW5
6 630 000 7756 BOLT,HEX-SCT 3 M5X12
6 -1 411 140 7307 SCR FLT 5X12 3 M5X12 FLT
6 -2 411 036 8609 SCR PAN+SW+W 5X12 2
7 630 051 6555 UNIT,DRIVER 2 PMD17(SX), PMD18(SY),
#AK-BX501V-SAT4 659FB-03D-018
8 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
9 411 008 1706 WASHER SPR 4 4 SW4 F
10 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
11 630 091 3019 UNIT,DRIVER 2 SMD6(CZ), SMD7(MZ),
#SGDM-01ADA-R 659FB-03D-026
12 630 091 5938 BRACKET 2 659FB-03V-012
14 411 141 4107 WASHER V 5X10X1 2 FW5
15 411 141 6705 WASHER SPR 5 2 SW5
16 630 000 7732 BOLT,HEX-SCT 2 M5X8
17 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
18 411 008 1706 WASHER SPR 4 4 SW4 F
19 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
26 630 091 5952 BRACKET 1 659FB-03V-010
27 411 141 4008 WASHER V 4X9X0.8 3 FW4
28 411 141 2905 WASHER SPR 4 3 SW4
29 630 000 7633 BOLT,HEX-SCT 3 M4X12
29 -1 411 114 7807 SCR PAN+SW+W 4X10 1
30 630 086 5974 UNIT,I/O 1 3F88L-162 659B--03H-006
31 411 141 4008 WASHER V 4X9X0.8 2 FW4
32 411 141 2905 WASHER SPR 4 2 SW4
33 630 000 7640 BOLT,HEX-SCT 2 M4X14
41 630 062 0719 BRACKET 1 659FB-03V-029
42 630 030 0024 RAIL,WIRING 1
43 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
44 411 008 1706 WASHER SPR 4 2 SW4 F
45 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
46 630 052 3539 ACCESSORY,WIRING 1
47 630 052 3621 COUNTER 1 ECT 659FB-03D-091
48 630 049 2064 SOCKET 1 659FB-03D-094
49 630 052 4727 RELAY 1 SSR4 659FB-03D-093
50 630 000 1051 BRACKET,WIRING 1
51 411 141 4107 WASHER V 5X10X1 2 FW5
52 411 141 6705 WASHER SPR 5 2 SW5
53 630 000 7756 BOLT,HEX-SCT 2 M5X12
54 -1 630 049 3801 TERMINAL 4
54 -2 630 049 3733 ACCESSORY,WIRING 1
54 -3 630 049 3702 ACCESSORY,WIRING 1
54 -5 630 060 2845 FUSE HOLDER 1
54 -6 630 049 3672 BRACKET,WIRING 2
54 -9 423 026 0609 FUSE 250V 0.5A 1 F150 659DB-03D-012
MODEL TCM-3100J-2
0108-001
220
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-13
70 411 036 8609 SCR PAN+SW+W 5X12 1
71 411 141 4107 WASHER V 5X10X1 4 FW5
72 411 141 6705 WASHER SPR 5 4 SW5
73 630 000 7749 BOLT,HEX-SCT 4 M5X10
77 630 057 9017 SUPPORT 1 659FB-03V-004
78 411 141 4107 WASHER V 5X10X1 2 FW5
79 411 141 6705 WASHER SPR 5 2 SW5
80 630 000 7756 BOLT,HEX-SCT 2 M5X12
81 630 091 5945 BRACKET 1 659FB-03V-013
82 411 141 4107 WASHER V 5X10X1 4 FW5
83 411 141 6705 WASHER SPR 5 4 SW5
84 630 000 7756 BOLT,HEX-SCT 4 M5X12
85 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0000 659FB-03U-001
86 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
87 411 086 4408 WASHER SPR 3 4 SW3 F
88 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
89 630 091 6041 COVER 1 659FB-03V-014
90 411 051 2804 SCR TRS 4X8 4 M4X8 TRS
91 630 091 9301 BRACKET 1 659FB-03V-015
92 630 091 1541 UNIT,DRIVER 1 SMD1(H), #SGDM-50ADA-R
659FB-03D-019
92 -1 630 091 5914 BRACKET 1 659FB-03V-043
92 -2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
92 -3 411 141 3001 WASHER SPR 6 2 SW6
92 -4 630 000 7886 BOLT,HEX-SCT 2 M6X16
93 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
94 411 008 1706 WASHER SPR 4 4 SW4 F
95 411 003 0001 SCR PAN 4X12 4 M4X12 PAN
96 411 141 4107 WASHER V 5X10X1 4 FW5
97 411 141 6705 WASHER SPR 5 4 SW5
98 630 000 7756 BOLT,HEX-SCT 4 M5X12
101 630 051 2199 BRACKET 1 659L--03B-033
102 411 141 4107 WASHER V 5X10X1 2 FW5
103 411 141 6705 WASHER SPR 5 2 SW5
104 630 000 7756 BOLT,HEX-SCT 2 M5X12
107 630 089 4660 ACCESSORY,WIRING 1 659FB-03D-908
108 630 095 1417 ACCESSORY,WIRING 1 659FB-03D-907
109 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
120 630 058 8569 BRACKET 1 659FB-03V-016
121 630 051 5763 WIRE PARTS 2 659FB-03D-101
122 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
123 411 008 1706 WASHER SPR 4 2 SW4 F
124 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
126 411 036 8609 SCR PAN+SW+W 5X12 11
127 411 141 4107 WASHER V 5X10X1 2 FW5
128 411 141 6705 WASHER SPR 5 2 SW5
129 630 000 7756 BOLT,HEX-SCT 2 M5X12
131 630 051 5763 WIRE PARTS 2 659FB-03D-101
132 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
133 411 008 1706 WASHER SPR 4 2 SW4 F
