Manual Installation of Internet Information Server Edition 04/2007 US
3.2 Installation of Internet Information Server on Windows XP
Professional
Please follow the instructions below for the manual installation of Internet Information Server (IIS) on
Windows XP.
Note:
Close all other applications before you start with the installation of Internet Information
Server.
You may need your operating system media during installation. This installation also
requires administrative privileges.
→ Click on windows main menu Start Æ Control Panel Æ Add Or Remove Programs Æ Windows
Components.
After a few seconds the windows components wizard opens:
Fig. 3-6: The "Windows Components Wizard”
→ Scroll down and activate the checkbox for “Internet Information Services (IIS)”
→ Click on the Next > button.
8/18
Please wait until the wizard has installed the selected components.
During the installation, the following dialog may appear when files to copy are not available:
Fig. 3-8: The "Insert Disk” dialog during installation
→ Insert your Operating System Installation media into the mentioned drive.
→ Click on the OK button if the dialog does not disappear automatically.
Manual Installation of Internet Information Server Edition 04/2007 US
After successful installation the following window appears:
Fig. 3-9: “Windows Components Wizard” after successful installation
→ Click on the Finish button.
9/18
Manual Installation of Internet Information Server Edition 04/2007 US
3.3 Installation of Internet Information Server on Windows Vista
Please follow the instructions below for the manual installation of Internet Information Server (IIS) on
Windows Vista.
Note:
Close all other applications before you start with the installation of Internet Information
Server.
You may need your operating system media during installation. This installation also
requires administrative privileges.
→ Click on windows main menu Start Æ Control Panel Æ Programs.
The following window opens:

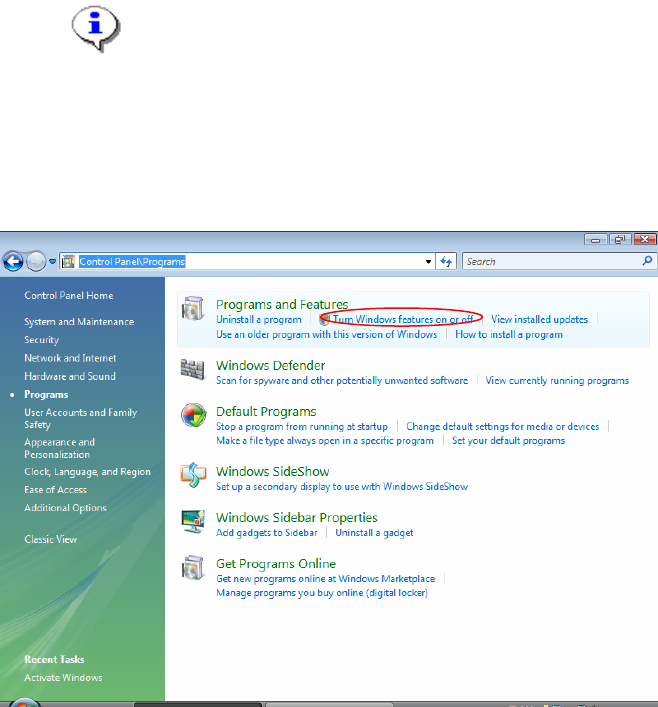

Fig. 3-10: Control Panel - Programs
→ Click on “Turn Windows features on or off”.
10/18
