PROGRAMMING MACHINE SET UP 2.2 Over the Top Snuggers (OTS) Manual Chapter Issue 3 Aug 1 4 Clamp T ype Auto Detection During machine i nitialisa tion or af ter exi ting diagnos tics, the camer a moves to the clamp ide nti…

PROGRAMMING

MACHINE SETUP

Chapter Issue 3 Aug 14 Over the Top Snuggers (OTS) Manual 2.1

CHAPTER 2 PROGRAMMING

MACHINE SETUP

Set up the machine to run a product as required; the only additional software

parameters that need to be considered are: Clamp Type, Clamping Pressure,

Snugging Pressure and OTS Retain Mode.

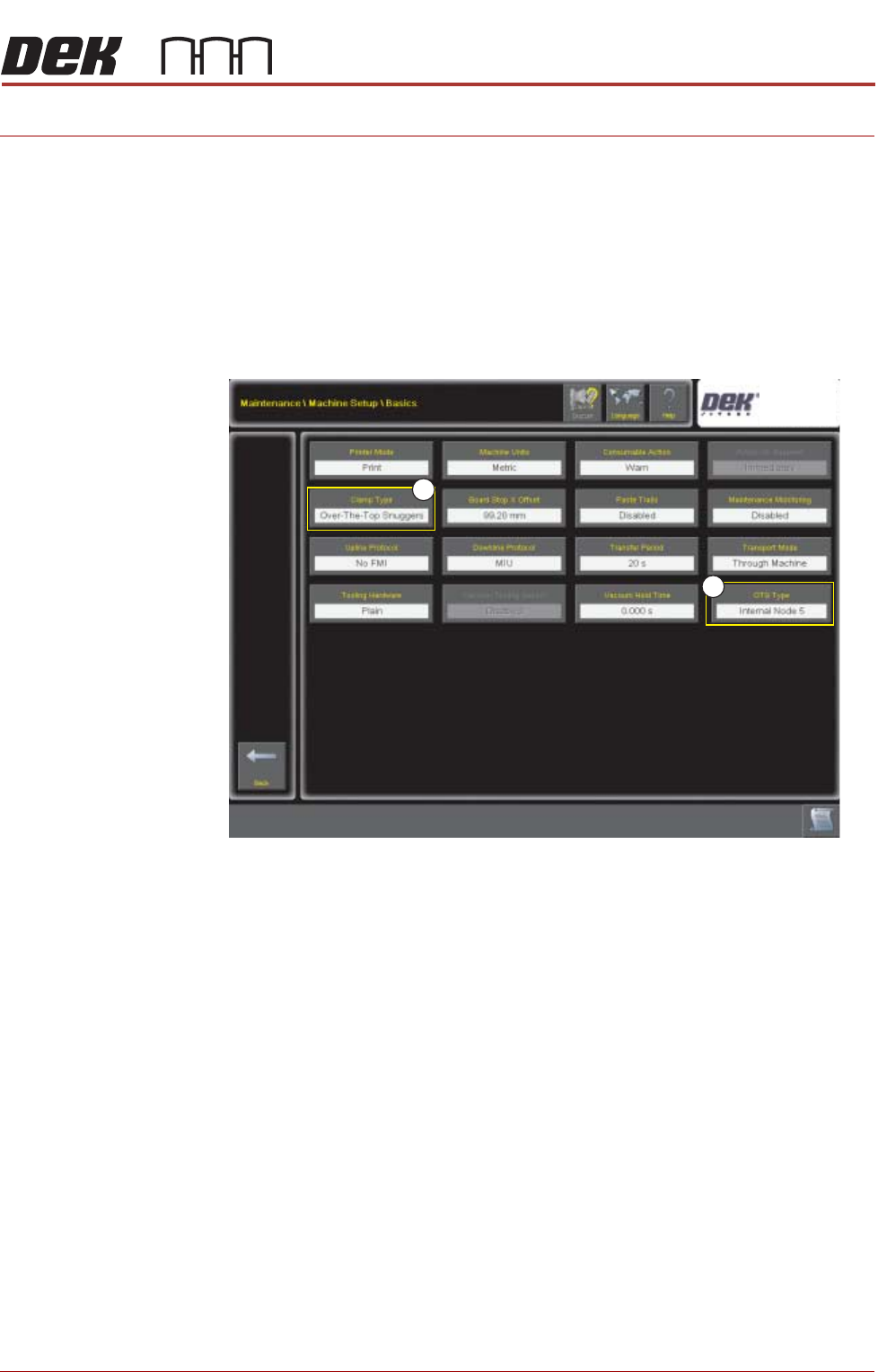

Setup OTS Select Maintenance\Machine Setup\Basics and set the Clamp Type (1) to

Over The Top Snuggers. See Clamp Type Auto Detection for clamp type

identity detail.

PROGRAMMING

MACHINE SETUP

2.2 Over the Top Snuggers (OTS) Manual Chapter Issue 3 Aug 14

Clamp Type Auto

Detection

During machine initialisation or after exiting diagnostics, the camera moves to

the clamp identification location and determines the clamp type. A clamp

identification mark is used; the identities are as follows:

• OTS = 1.25mm diameter circle

• OTT = 2.0mm diameter circle

• Normal Clamps = No Mark

The table shows the possible combinations of Clamp Type parameter and the

detected clamp hardware.

Process Parameters Three process parameters are located in Setup\Tooling.

Select each in-turn to adjust the parameter.

Snugger Pressure When the board is fed into the machine and the snugger operates, the board is

retained. A minimum of 0 and maximum of 5 bar can be set. Zero pressure

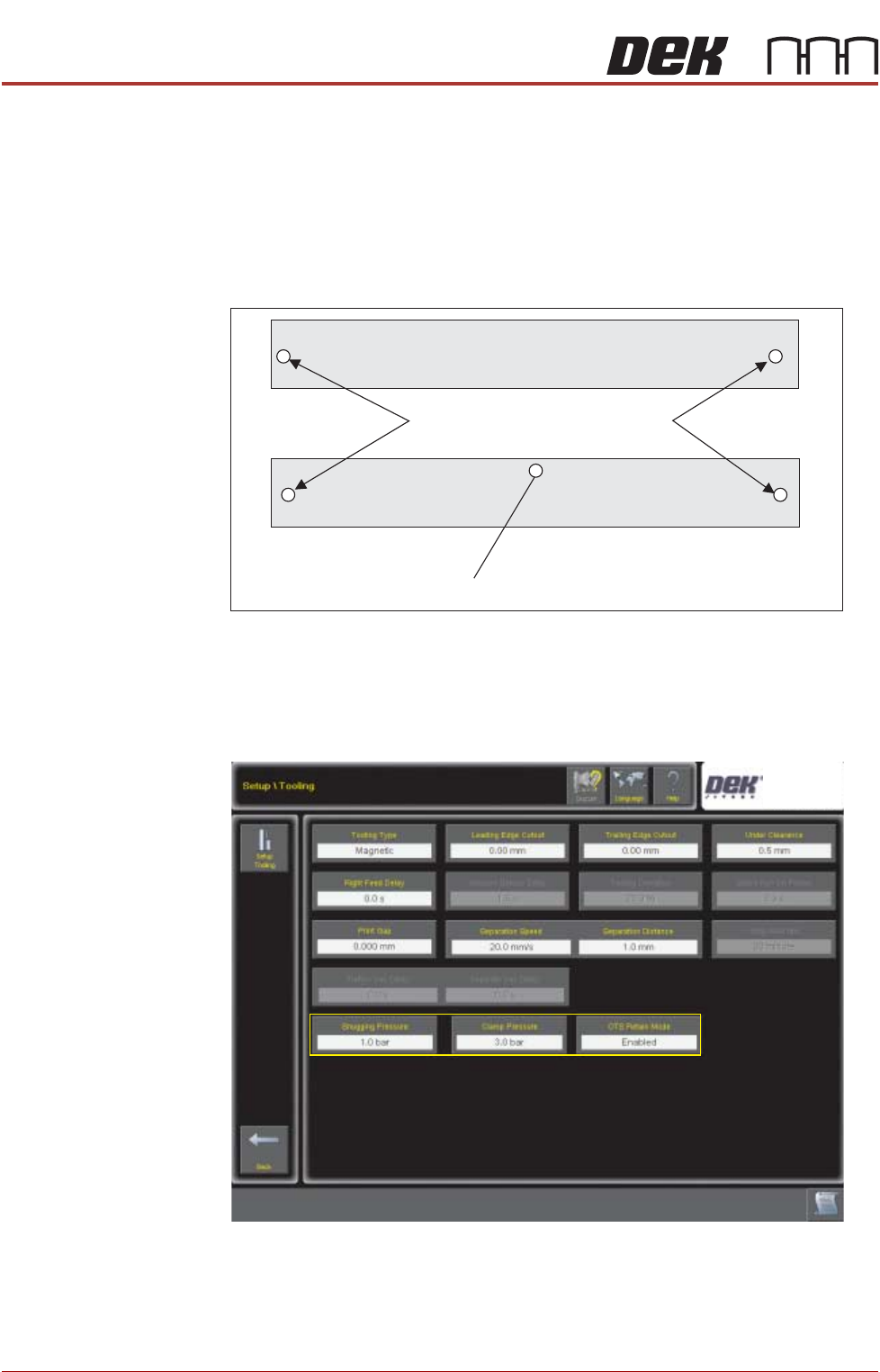

Camera Reference Dot

Clamp Identification Mark Locations

PROGRAMMING

MACHINE SETUP

Chapter Issue 3 Aug 14 Over the Top Snuggers (OTS) Manual 2.3

means that the snugger does not move.
