PROGRAMMING MACHINE SET UP 2.4 Over the Top Snuggers (OTS) Manual Chapter Issue 3 Aug 1 4 Clamp Pressure The over the top clamp is placed ov er the board and pres sure is appli ed so that when the board i s fed into the …
PROGRAMMING
MACHINE SETUP
Chapter Issue 3 Aug 14 Over the Top Snuggers (OTS) Manual 2.3

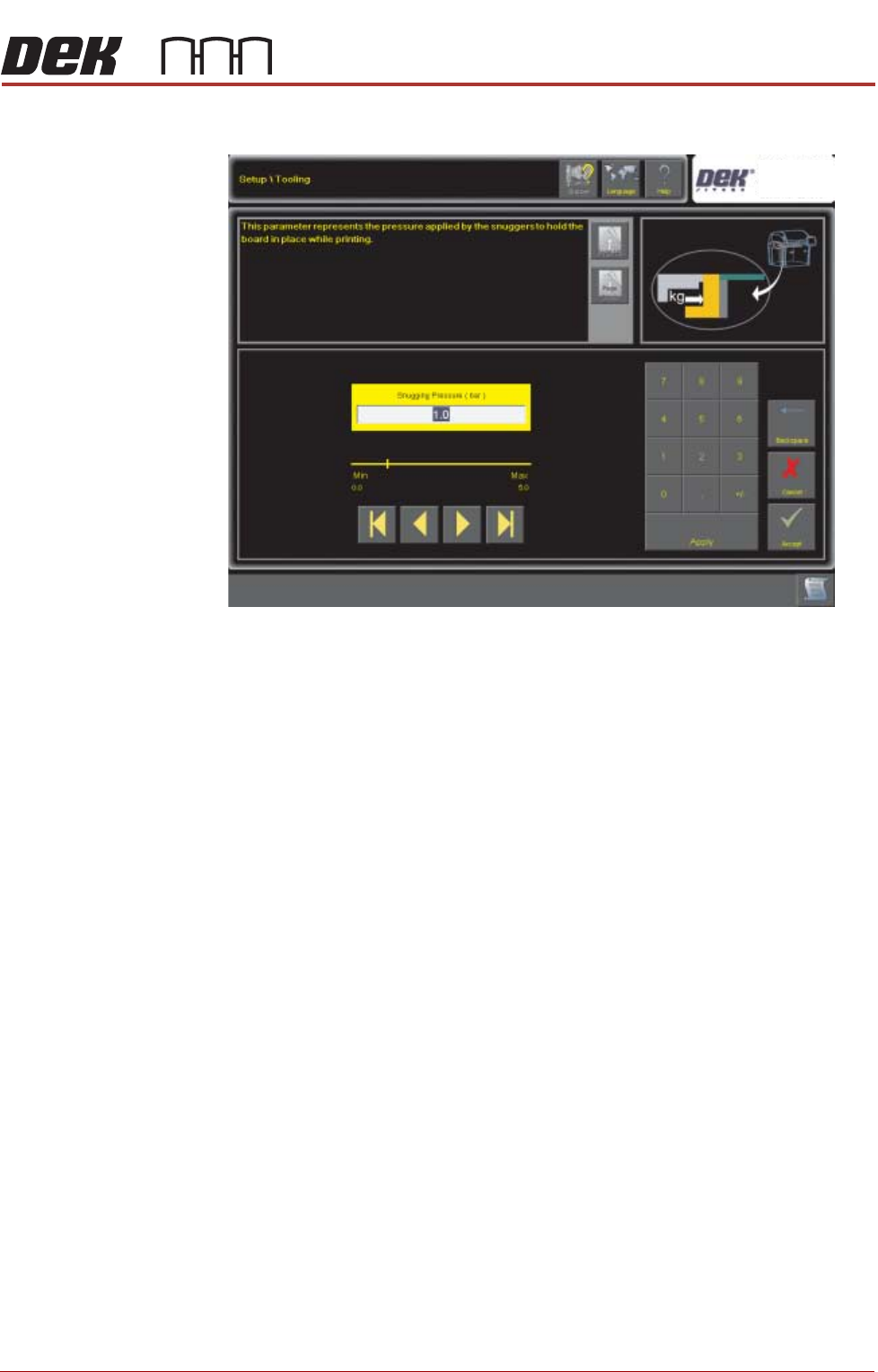

means that the snugger does not move.
PROGRAMMING
MACHINE SETUP
2.4 Over the Top Snuggers (OTS) Manual Chapter Issue 3 Aug 14

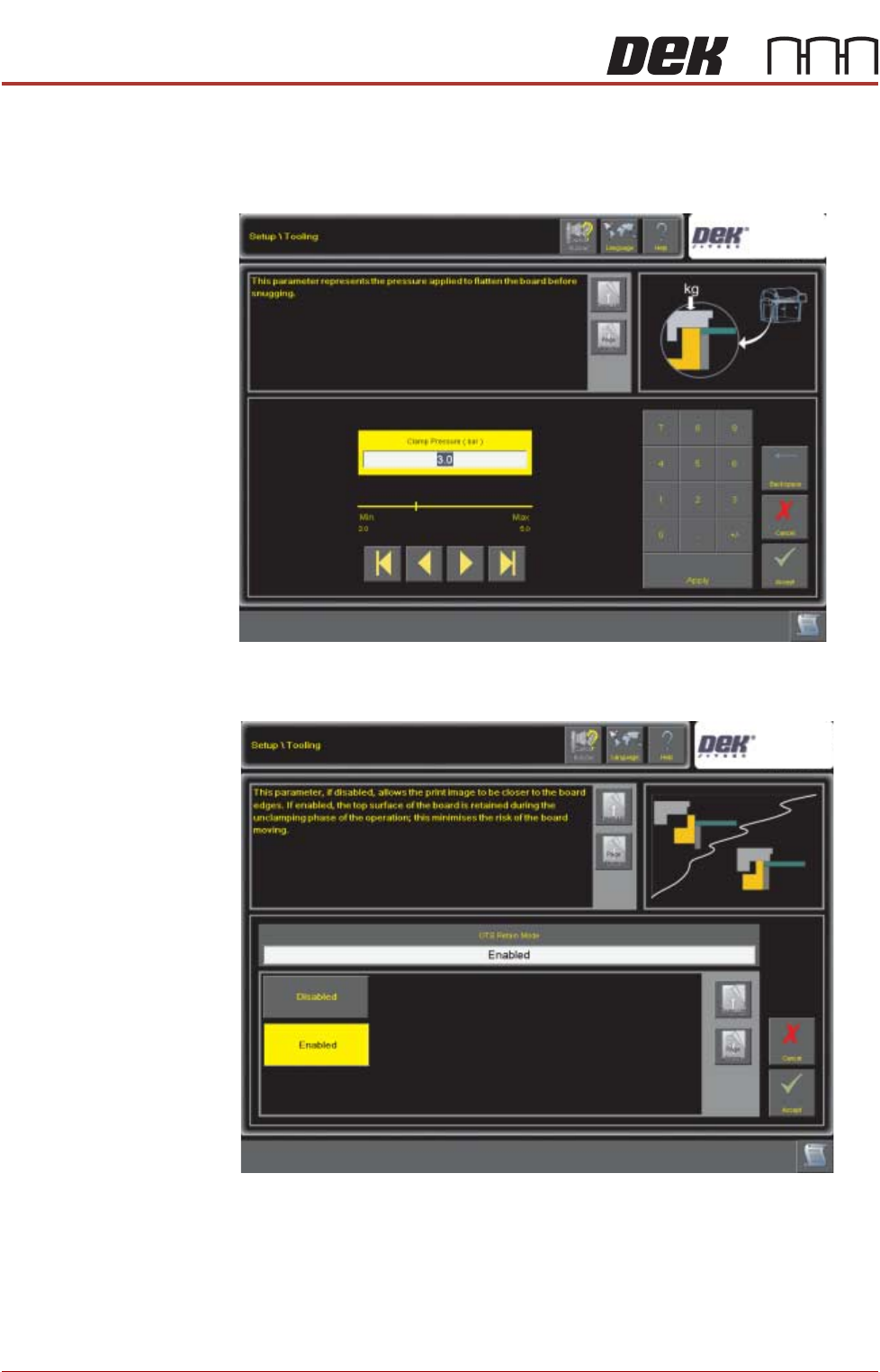

Clamp Pressure The over the top clamp is placed over the board and pressure is applied so that
when the board is fed into the machine and the snugger operates, the top of the
board is held level with the snugger. A minimum of 2 and maximum of 5 bar can
be set. Two bar of pressure is required to overcome the balance valve.
OTS Retain Mode Over top clamp retain mode can be enabled or disabled; disabled is the default
option (see OTS Sequence for details.)
PROGRAMMING
DIAGNOSTICS
Chapter Issue 3 Aug 14 Over the Top Snuggers (OTS) Manual 2.5
DIAGNOSTICS

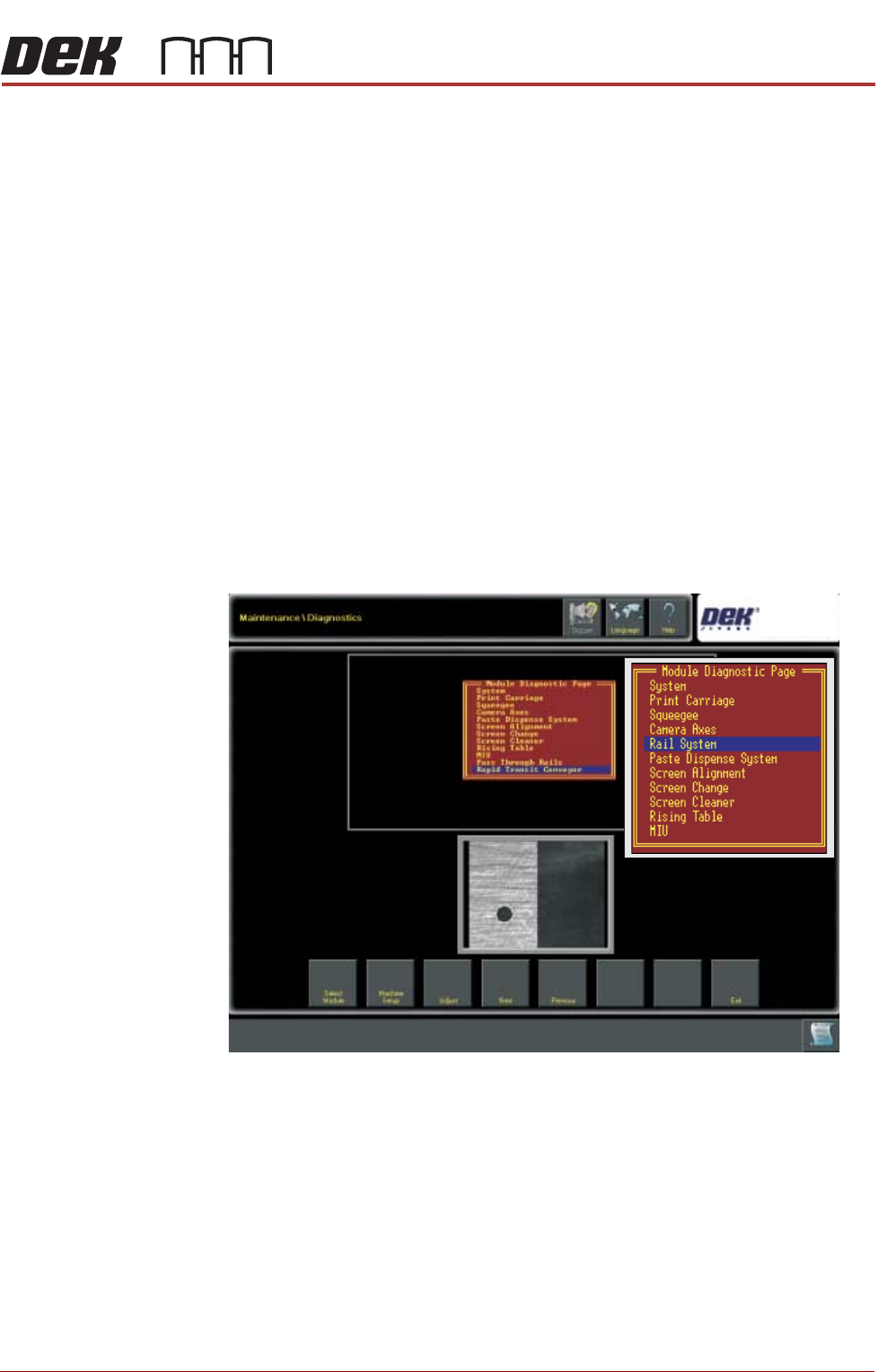

The diagnostic function is an aid to the user to allow individual access and
control of motors and modules. It allows the user to control the sequence of
the machine so that a particular module can be exercised.
Rapid Transit
Conveyor/MTR
Rail Diagnostics
The OTS diagnostics have been grouped under the rapid transit conveyor
diagnostics.
1. Select Maintenance
2. Select Diagnostics
3. Using the Next/Previous buttons select Print Carriage
4. Select Select Module
5. Using the Next/Previous buttons select Drive Carriage To Rear Position
6. Select Run Diagnost
7. Select Exit
8. Using the Next/Previous buttons select Rapid Transit Conveyor or MTR
(See inset).
NOTE
The Clamp Type and OTS Types can be set by selecting the Adjust button.
