SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50282
8/17
Fig 3.5 Feeder Maintenance Notice (error rate)
Fig 3.6 Feeder Maintenance Stop (error rate)
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50282
9/17
3.2 Notification on the Feeder ID Log screen
On the [Unit log] – [Feeder ID] screen （the [Operator] tab and the [Service] tab）, feeders
of the maintenance level are displayed in different colors.
・ Yellow means that the feeder has reached “Notice Cnt”, “Notice Correct X”, “Notice
Correct Y”, and “Notice Err Rate”.
・ Red means that the feeder has reached “Stop Cnt”, “Stop Correct X”, “Stop Correct Y”,
and “Stop Err Rate”.
If you don’t need this notification, release the [Maintain Notice] button, so that feeder
maintenance notice is not displayed. However, feeder maintenance stop is still displayed.
- This function refers to the pickup error rate only on the [Service] tab.
Fig 3.7 the [Unit log] – [Feeder ID] screen
“After Adjust Drive Cnt”, “After Adjust Drive Cnt” and “Feeder MACS Correct” are not
initialized by the [RESET] button on the [Operator]/[Service] tab.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50282
10/17
3.3 Production Monitor screen
On the [Monitor] – [Production] screen, feeders of stop level are displayed in Red.
Only the feeders attached and used for production are displayed.
Maintenance stop function is enabled on Machine Setting（4.2 See Machine Setting）.
In initial setting, maintenance stop function is disabled.
Also, when there is a feeder that reaches stop level, auto-running cannot start.
Exchange target feeder to adjusted feeder or adjust on SS Tune-up Station.

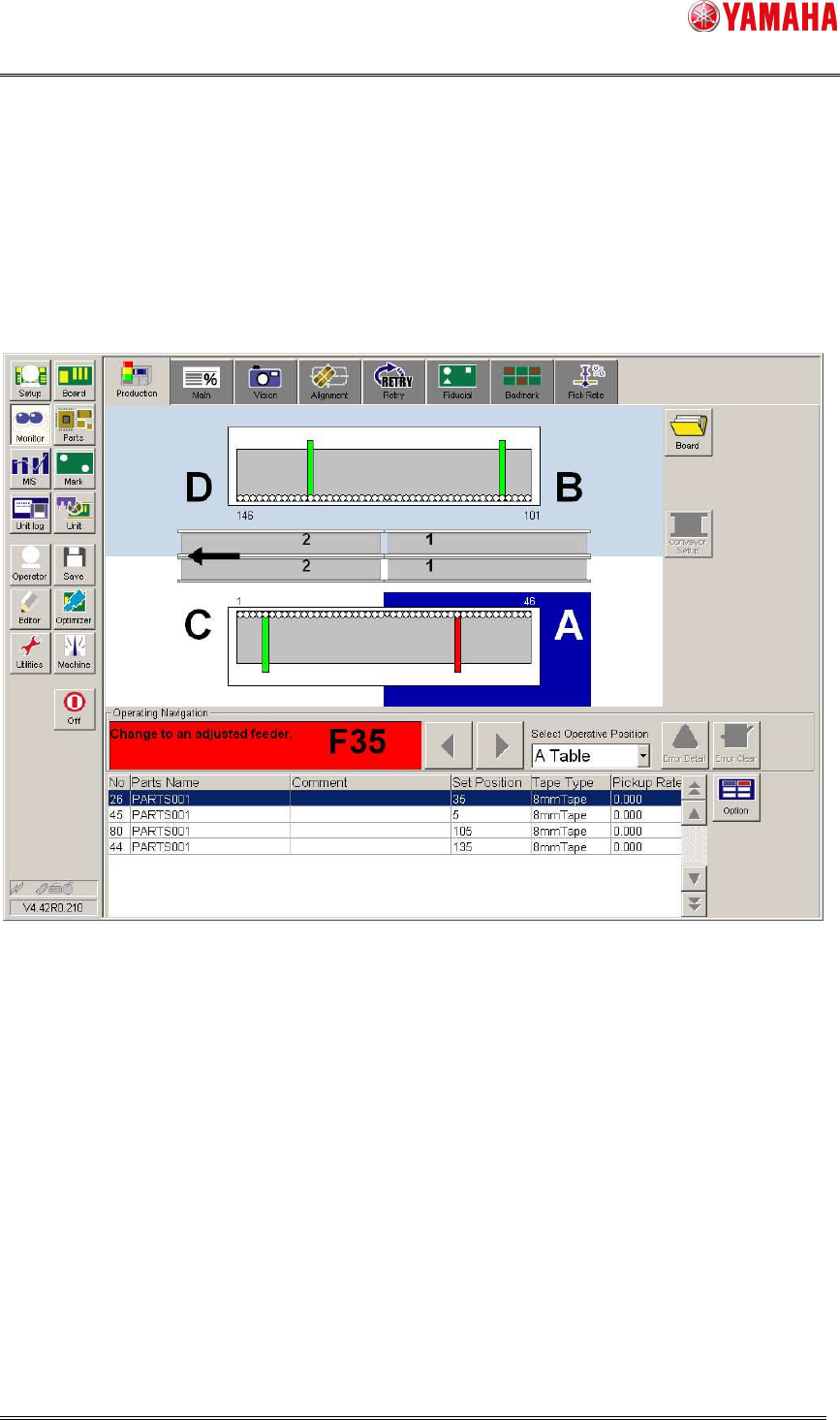

Fig 3.8 the [Monitor] – [Production] screen
