3 1. SP ECIFICATIONS TS 5624DMP Size See below illustration Weight 0.25 lb. (113 g) Fluid Inle t Port Luer lo ck female Fluid Outle t Port Luer lo ck male Air I nlet Port 10 -32 UNF Auxiliary A ir I nlet Port 10 -32 UNF …
2
CONTENTS
Page number
1. Specifications…………………..………………………………….…………
2. Unpacking and Inspection……………………………………………………
3. Description...…………………………………………………….….………...
4. Theory of Operation…………………………………………….….…………
5. Setup Instructions……………………………………………….….…………
6. Typical System Set-Up……………………..……..…….……….……………
7. Disposable Material Path Removal/Replacement….………………………….
8. Maintenance of Air Cylinder O-Ring…………………………………………
9. Spare Parts…………………………………………………………………...
10. Accessories…………………………………………………………………..
11. Troubleshooting……………………………………………………………...
12. Warranty……………………………………………………………………..
3
4
4
4
5
6
7
8
9
10
11
12
3
1. SPECIFICATIONS
TS5624DMP
Size
See below illustration
Weight
0.25 lb. (113g)
Fluid Inlet Port
Luer lock female
Fluid Outlet Port
Luer lock male
Air Inlet Port
10-32 UNF
Auxiliary Air Inlet Port
10-32 UNF
Minimum Air Pressure
70 psi (4.8bar)
Maximum Fluid Pressure
60 psi (4.1bar)
Operating Frequency
Exceeds 400 cycles/min.
Mounting Port
10-32 UNF
Wetted Parts
Black Polyethylene Compound.
Black Nylon (Elbow).
Figure 1.0
Dimensions are in inches [mm]
4
2. UNPACKING AND INSPECTION
Carefully unpack the valve and examine the items contained in the carton. These
will include:
Valve assembly.
Mounting bracket and mounting screw.
1 x Disposable Material Path.
2 x Hex keys (1/8” & 9/64”).
Sample tip kit.
Fluid line and air hose.
User guide.
3. DESCRIPTION
The TS5624DMP Diaphragm Valve is designed to dispense low to medium
viscosity fluids. An internal spring return makes the valve fully adaptable for use
with any time/pressure controller. A short opening stroke provides extremely fast,
positive shut-off. An external stroke control adjustment makes it easy to fine tune
shot sizes. The TS5624DMP Diaphragm Valves compact design allows for
mounting flexibility and easy integration into automated applications.

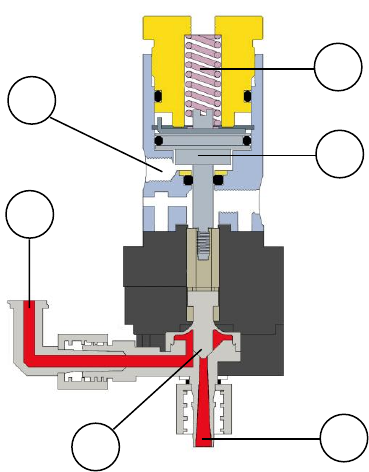

4. THEORY OF OPERATION (Refer to figure 2.0)
The TS5624 Diaphragm Valve is normally closed, adjustable stroke valve. Input
air pressure of 70-90 psi (4.8 to 6.2bar) through air inlet port (1) drives the piston
assembly (2) back, opening the material path, allowing fluid flow from the
material inlet (3) to the material outlet (4). Relieving the input air pressure allows
the piston return spring (5) to close the diaphragm (6), ensuring rapid “fail-safe”
shut-off of fluid flow.
Figure 2.0
3
1
6
2
5
4
