Speed (Single-Sided) DLM-RV12 - Option 1 Installation Procedures 14 Assembly Instructions E by SIPLACE 2.1 2 . 1 I n s t a lla t io n P r o c e d u r e s Installation Procedures ► Mount "Nozzle station support"…
Speed (Single-Sided) DLM-RV12 - Option 1
Assembly Instructions E by SIPLACE 13
2
2 Speed (Single-Sided) DLM-RV12 - Option 1
Speed (Single-Sided) DLM-RV12 - Option 1

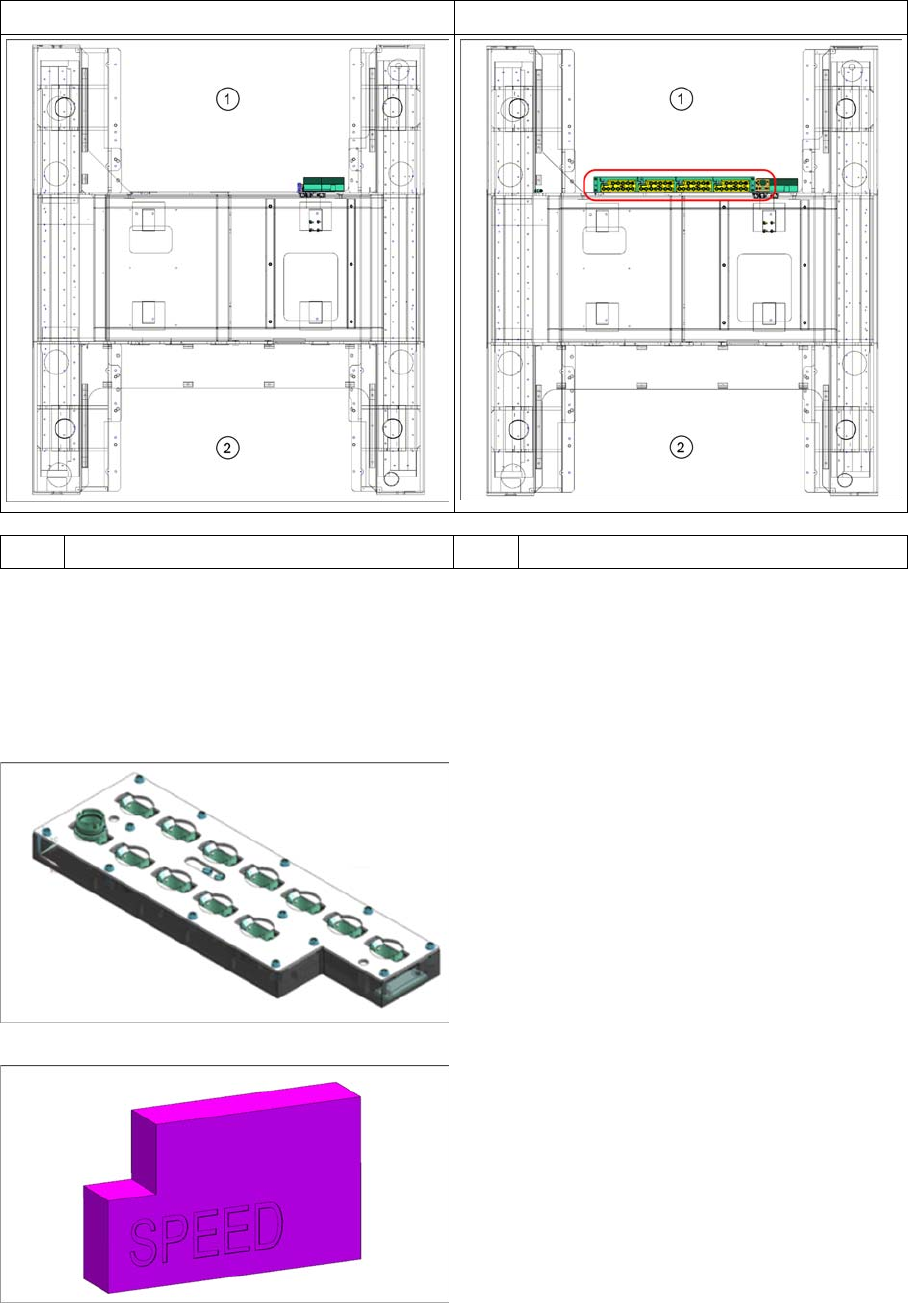

A standard single sided machine includes an "NC Speed kit reject bin small" [03113189-xx].
"NC SPEED RV12 LOC 1 cpl." [03113197
-
xx] is located in the highlighted area.
▪ It consists of a "single row nozzle changer" [03106322-xx] base plate with four "active nozzle mag
-
azines" [03081446
-
xx] as shown above.
▪ For an upgrade in the field, the height measurement block SPEED [03119428 xx] must also be or
-
dered.
Nozzle maga zine type 30xx fo r RV12 [03081446-xx]
Height measurement block SPEED [03119428-xx]
Standard Speed (SS) RV12 Speed (SS) RV12 Option 1
1 Location 1 2 Location 2
Active nozzle magazine type (quick reference)
▪ Nozzle magazine type 30xx for RV12
[03081446
-
xx]
Height measurement block SPEED [03119428
-
xx]
Speed (Single-Sided) DLM-RV12 - Option 1
Installation Procedures
14 Assembly Instructions E by SIPLACE
2.1
2.1 Installation Procedures
Installation Procedures
► Mount "Nozzle station support" [03105456-xx] onto "NC mounting bracket FLEX 1 Left" [03109945-
xx] using two M4x10 countersunk screws.
► Mount "NC mounting bracket SPEED right" [03108035-xx] onto the machine base frame using an
M5x30 cap screw.
► Mount one shim cover [03108393 xx] each on "NC mounting bracket Speed left" [03108126 xx] and
"NC mounting bracket Speed" right [03108035 xx].
Speed (Single-Sided) DLM-RV12 - Option 1
Installation Procedures
Assembly Instructions E by SIPLACE 15
► Place the "Height measurement block SPEED" [03119428 xx] onto the shim cover and move the
head holder manually toward the block with care.
► Use a feeler gauge to determine the gap and the number of "NC shims" [03108395 xx] required.
► Place the required shims (1) underneath the shim cover and fasten them with an M3x8 countersunk
screw.
