Speed (Single-Sided) DLM-RV12 - Option 1 Installation Procedures Assembly Instructions E by SIPLACE 17 ► Connect the cable [03102710 - xx] to the cable of the nozzle ch anger "NC single row for DLM4 RV6/ 12, C&P…
Speed (Single-Sided) DLM-RV12 - Option 1
Installation Procedures
16 Assembly Instructions E by SIPLACE
► Place the "Reject Device" [03109608-xx] (1) onto the shim cover after the height has been adjusted
and secure it with two M4x20 countersunk screws.
► Remove the red cover shown and locate the nozzle changer control cable [03102710
-
xx].
Speed (Single-Sided) DLM-RV12 - Option 1
Installation Procedures
Assembly Instructions E by SIPLACE 17
► Connect the cable [03102710
-
xx] to the cable of the nozzle changer "NC single row for DLM4 RV6/
12, C&P14 P" [03106322
-
xx].
► Mount the nozzle changer onto the shim covers on both ends and secure it with four M5x14 cap
screws.
► Assemble the active nozzle magazines.
► Remove the yellow covers shown.
Speed (Single-Sided) DLM-RV12 - Option 1
Installation Procedures
18 Assembly Instructions E by SIPLACE

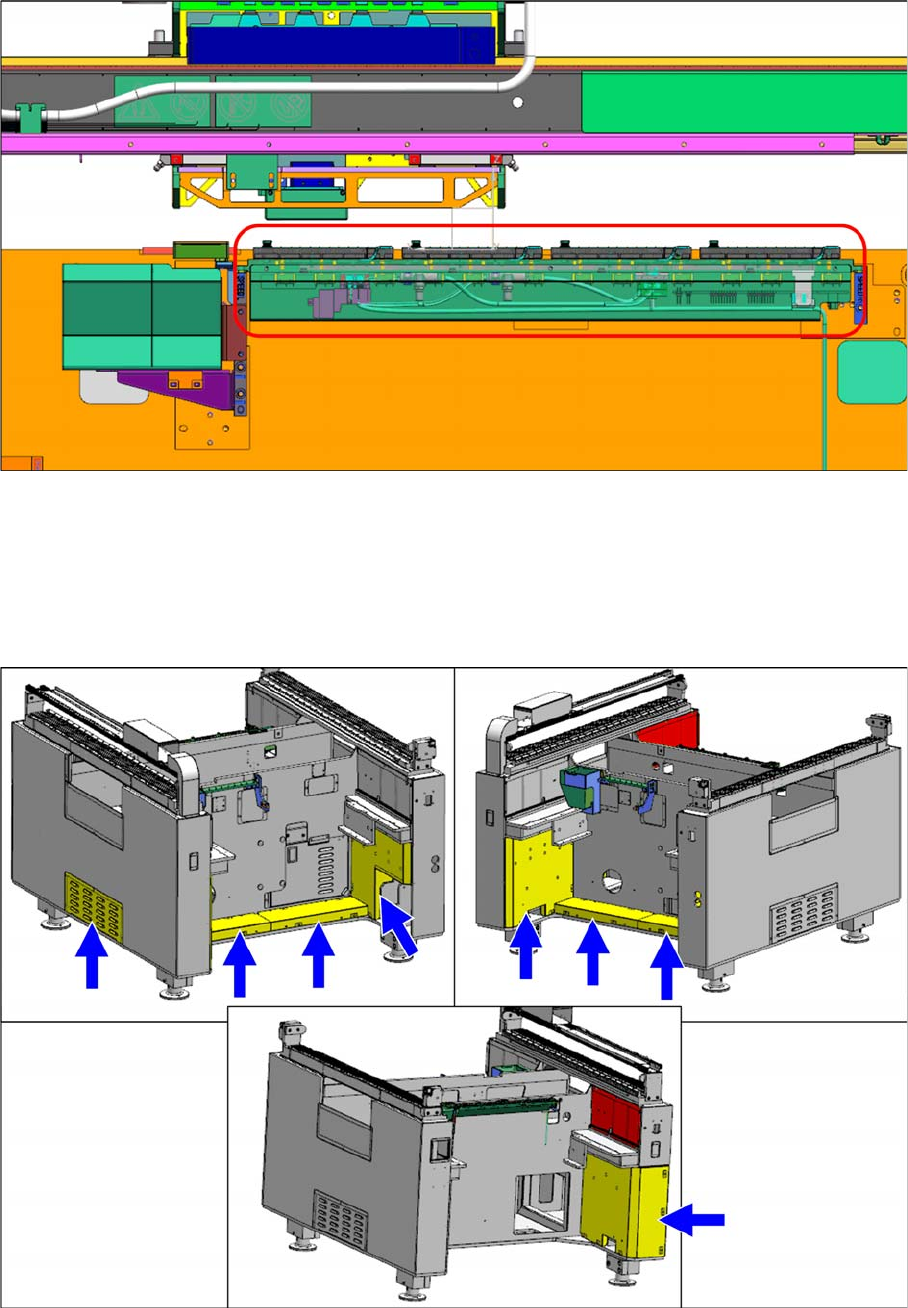

► Connect the diameter 6 mm tube "Tube Nozzle Changer LOC1" [03102149
-
xx] to port 3 of the air
service unit located in location 2.
Port 3 is the port shown in yellow in the below picture.
► Route the tube [03102149
-
xx] from the air service unit to the indicated area in location 1.
► Connect the tube [03102149
-
xx] to the tube of the nozzle changer via the provided "6-4 reducer fit
-
ting" [00386293
-
xx].
► Refit all the removed covers.
