Station Software 706.1 SP1/705.05 SP1 / Installation Manual Ausgabe 02/2013 Edition

5.2.2 Changing the Display Settings

► Select Start



Settings



Control Panel



Display.

► Click the Settings tab.

► Set the Screen resolution slider to 1024 by 768 pixels.

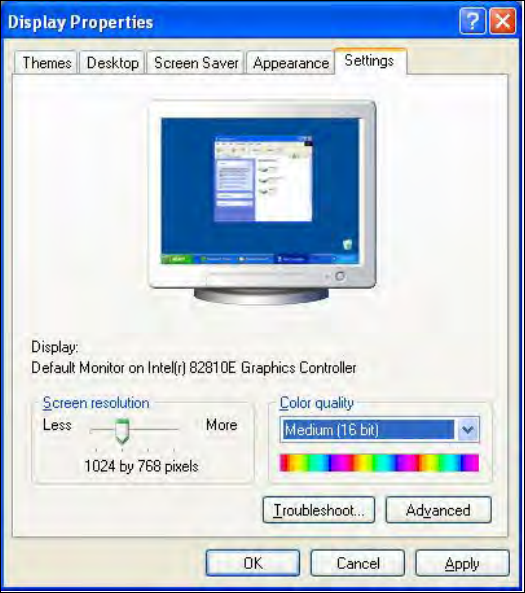

Figure 5-2: Screen settings

► Confirm the settings by clicking OK.

Station Software 706.1 SP1/705.05 SP1 / Installation Manual Ausgabe 02/2013 Edition

5.2.3 Calibrating the Touchscreen

► Select Start



Settings



Control Panel



Elo to go to EloTouchscreen Properties:

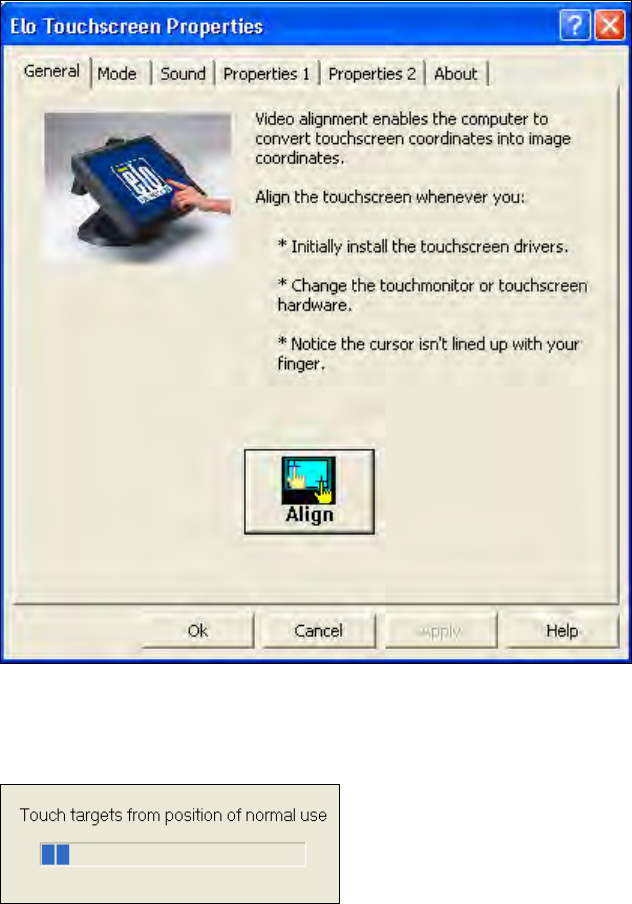

Figure 5-3: Elo Touchscreen properties

► Click the Align button.

The following message then appears:

Figure 5-4: Instruction for the screen to be calibrated

► Follow the instructions on the screen.

Station Software 706.1 SP1/705.05 SP1 / Installation Manual Ausgabe 02/2013 Edition

5.3 Performing BIOS Update/Settings on the Machine Computer and

Vision Computer

The image files for the BIOS update/BIOS settings and the corresponding installation instruction

(readme file) are available on the V1.0 BIOS CD that can be ordered via the service technician or

downloaded from the SIPLACE Download Center.
