5 Installing the machine computer

5.1 Installation sequence

See section 5.2.

See separate Installation Manual for details on installing the

Windows XP operating system (item no. 00196151-xx)

For details on calibrating the touchscreen, see section 5.3.3.

See sections 5.3 and 5.4.

See section 5.4.7.

27 of 58

Installation Manual, Station Software Version 703.02 12/2009 Edition

28 of 58

5.2 Performing automatic BIOS update/settings on the machine computer

and Vision computer

The image files for the automatic BIOS update/BIOS settings and the corresponding installation instruction

(readme file) are available on the V1.0 BIOS CD, that can be ordered for download via the service

technician or SecuFEx.

Installation Manual, Station Software Version 703.02 12/2009 Edition

5.3 Preparations for installing the software

5.3.1 Requirements

Requirements for installing the SIPLACE software and the Vision computer software:

- The Windows XP Professional operating system with Service Pack 3 and all current hotfixes

(SIPLACE Hotfix CD) must be installed on the machine computer and in two-computer operation on the

Vision computer (see the Installation Manual for the Windows XP operating system, item number

00196151-xx).

The default Windows display settings must be changed and the touchscreen must be calibrated. You

must be logged on as the Administrator

in order to be able to carry out this work.

5.3.2 Changing the display settings

→ Choose Start Æ Settings Æ Control Panel Æ Display.

→ Click the Settings tab.

→ Set the "Screen resolution" slider to "1024 by 768 pixels".

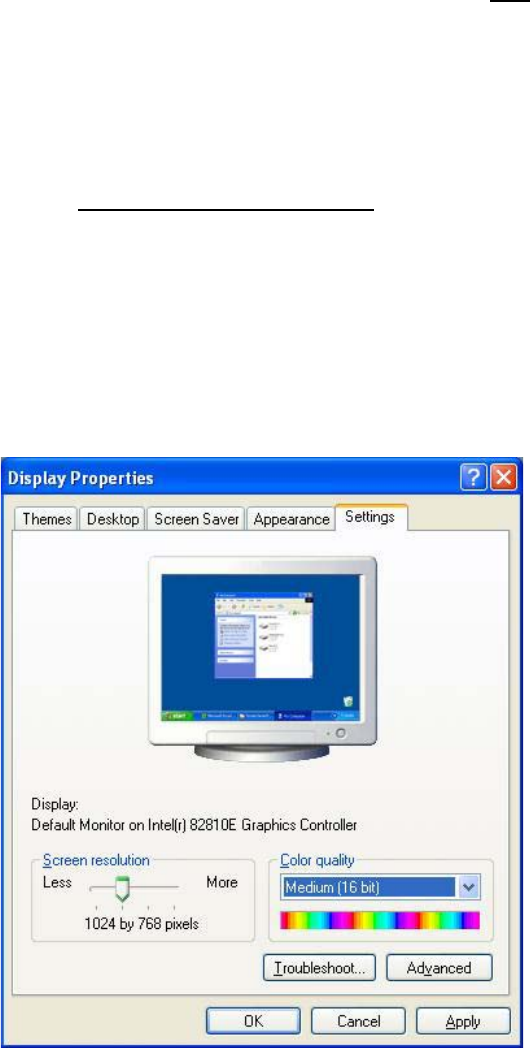

Fig. 5-1: Screen settings

→ Confirm the settings by clicking OK.
