Installation Manual, Station Software Version 703.02 12/2009 Edition
→ Click the Machine service button and enter the password to change into this activity level.
The following window is displayed for the X-series machines. Here you can edit, confirm or reject the Auto-
configuration.
Fig. 7-4: Confirming Auto-configuration for X-series
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
46 of 58
Installation Manual, Station Software Version 703.02 12/2009 Edition
For the placement machine SX1/SX2 the following window is displayed, in which the Manual selection
required note informs, that the table configuration has to be selected manually, as this is not detected
automatically.
Fig. 7-5: Selecting table configuration
→ Click the ? question mark next to Location 2.
The selectable table configurations are displayed.
Fig. 7-6: Possible table configurations
→ Select a table configuration with or .
→ Click the Accept button.
→ Repeat the steps for Location 1.
47 of 58
Installation Manual, Station Software Version 703.02 12/2009 Edition
When you have selected all table configurations the following window is displayed, in which you confirm
the Auto-configuration.

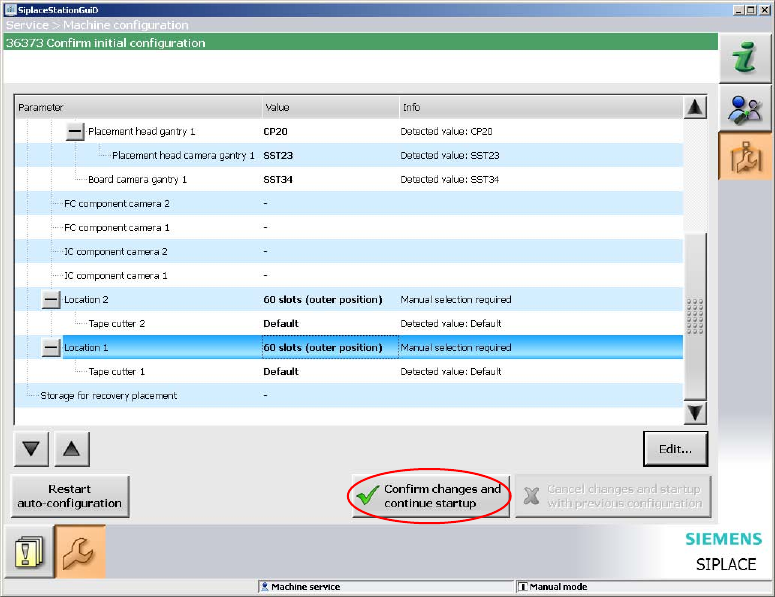

Fig. 7-7: Confirming Auto-configuration for SX-Serie
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
7.1 Checking/Updating the embedded software
- Check the firmware versions of the embedded software and download if necessary.
- Start an overall reference run for the machine.
7.2 Storage location of the machine files (calibration data etc.)
The machine-specific configuration, measurement and parameter data is stored in XML files under
C:\Sirio\Work\Individual. These XML files contain all the calibration data.
