ProcessMate 100 Vacuum Pick-Up System 10 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide. Specifications NOTE: Specifications and technica…
9www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
ProcessMate 100 Vacuum Pick-Up System
Important Disposable Component Safety Information
All Nordson EFD disposable components, including syringe barrels, cartridges, pistons, tip caps, end caps,
and dispense tips, are precision engineered for one-time use. Attempting to clean and re-use components will
compromise dispensing accuracy and may increase the risk of personal injury.
Always wear appropriate protective equipment and clothing suitable for your dispensing application and adhere to
the following guidelines:
• Do not heat syringe barrels or cartridges to a temperature greater than 38° C (100° F).
• Dispose of components according to local regulations after one-time use.
• Do not clean components with strong solvents (MEK, acetone, THF, etc.).
• Clean cartridge retainer systems and barrel loaders with mild detergents only.
• To prevent fluid waste, use Nordson EFD SmoothFlow
™
pistons.
Action in the Event of a Malfunction
If a system or any equipment in a system malfunctions, shut off the system immediately and perform the following
steps:
1. Disconnect and lock out system electrical power. If using hydraulic and pneumatic shutoff valves, close and
relieve pressure.
2. For Nordson EFD air-powered dispensers, remove the syringe barrel from the adapter assembly. For Nordson
EFD electro-mechanical dispensers, slowly unscrew the barrel retainer and remove the barrel from the actuator.
3. Identify the reason for the malfunction and correct it before restarting the system.
Disposal
Dispose of equipment and materials used in operation and servicing according to local codes.
Nordson EFD Product Safety Statement (continued)
ProcessMate 100 Vacuum Pick-Up System
10 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Specifications
NOTE: Specifications and technical details are subject to change without prior notification.
Item Specification
Cabinet size 18.3
W x 5.1H x 8.6D cm (7.22W x 2.00H x 3.38D")
Weight 1.0 kg (2.2 lb)
Cycle rate Up to 600 cycles per minute
Input AC (to power supply) Universal Multi Voltage, 100/240 VAC, 50/60 Hz
Output DC (from power supply) 24 VDC, 1.04 Amp maximum
Power requirements 24 VDC, 0.83 Amp maximum
Internal voltage 24 VDC
Foot pedal Voltage: 24 VDC
Current: 20 mA
Cycle initiate Foot pedal, finger switch
Input air pressure 7.0 bar (100 psi) maximum
Air output 0–110 inH
2
0 dependent on user setting
Vacuum output 0–110 inH
2
0 dependent on user setting
Ambient operating conditions Temperature: 5–45° C (41–113° F)
Humidity: 85% RH at 30° C non-condensing
Height above sea level: 2,000 m maximum (6,562 ft)
Product classification Installation category II
Pollution degree 2
Approvals CE, UKCA, TÜV, RoHS, WEEE, China RoHS
RoHS标准相关声明标准相关声明 (China RoHS Hazardous Material Declaration)
产品名称
Part Name
有害物质及元素
Toxic or Hazardous Substances and Elements
铅
Lead
(Pb)
汞
Mercury
(Hg)
镉
Cadmium
(Cd)
六价铬
Hexavalent
Chromium
(Cr6)
多溴联苯
Polybrominated
Biphenyls
(PBB)
多溴联苯醚
Polybrominated
Diphenyl Ethers
(PBDE)
外部接口
External Electrical
Connectors
X 0 0 0 0 0
O: 表示该产品所含有的危险成分或有害物质含量依照EIP-A, EIP-B, EIP-C
的标准低于SJ/T11363-2006 限定要求。
Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this part, according to EIP-A, EIP-B, EIP-C is below the
limit requirement in SJ/T11363-2006.
X: 表示该产品所含有的危险成分或有害物质含量依照EIP-A, EIP-B, EIP-C
的标准高于SJ/T11363-2006 限定要求.
Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this part, according to EIP-A, EIP-B, EIP-C is above the
limit requirement in SJ/T11363-2006.
WEEE Directive
This equipment is regulated by the European Union under WEEE Directive (2012/19/EU). Refer to
www.nordsonefd.com/WEEE for information about how to properly dispose of this equipment.
11www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
ProcessMate 100 Vacuum Pick-Up System

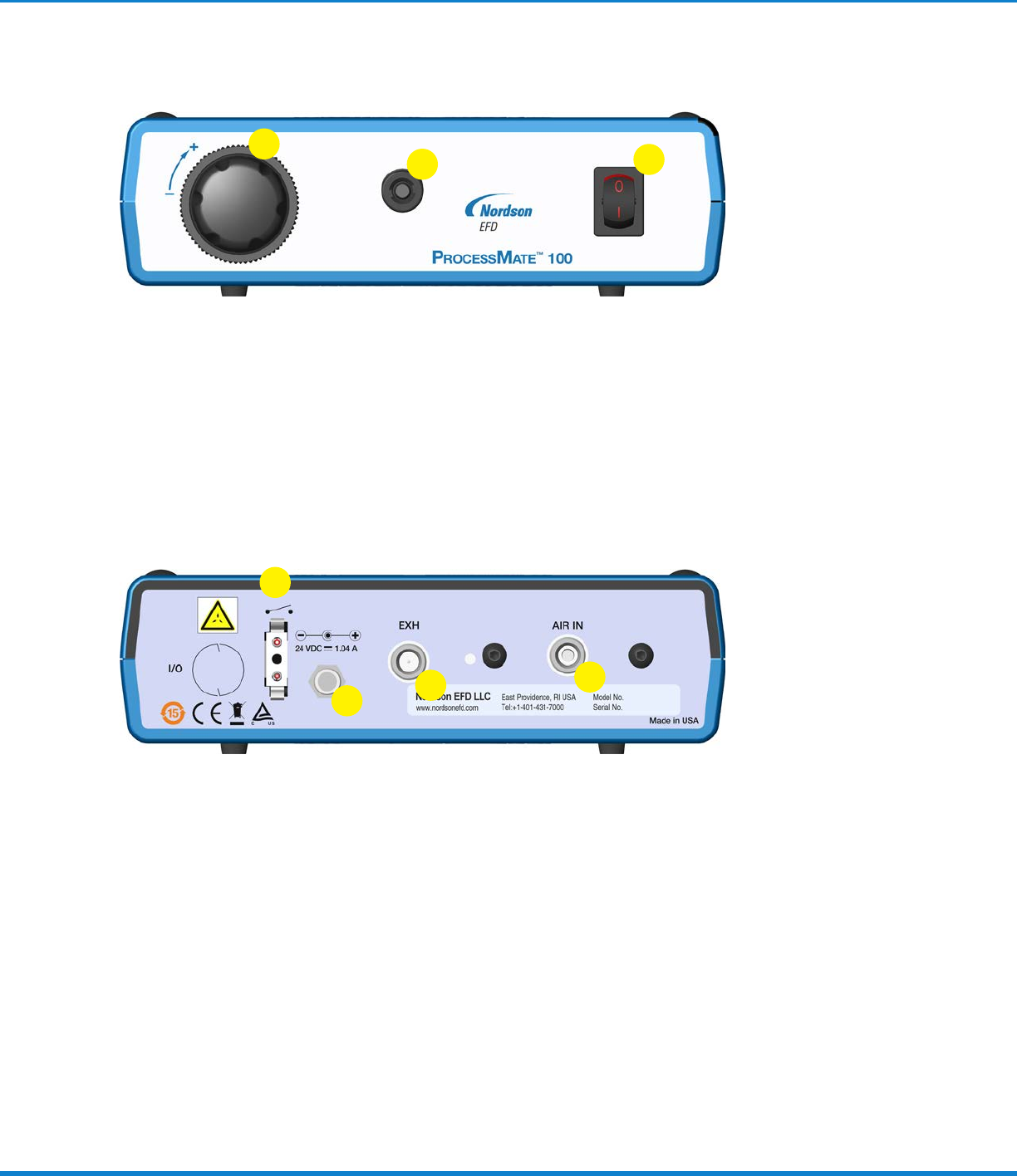

Operating Features
1. Vacuum air regulator adjustment knob — Controls vacuum level
2. Output quick connector — Vacuum pickup pen / wand connection
3. Power switch — Main DC power control switch
2
1
3
4. Foot pedal / finger switch connector — Connection for actuating device
5. Power input jack — DC power input
6. Vacuum exhaust port — vacuum air exit
7. Air input push-in fitting — Main filtered air supply input
4
5
7
6
