ProcessMate 100 Vacuum Pick-Up System
12 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
a
d

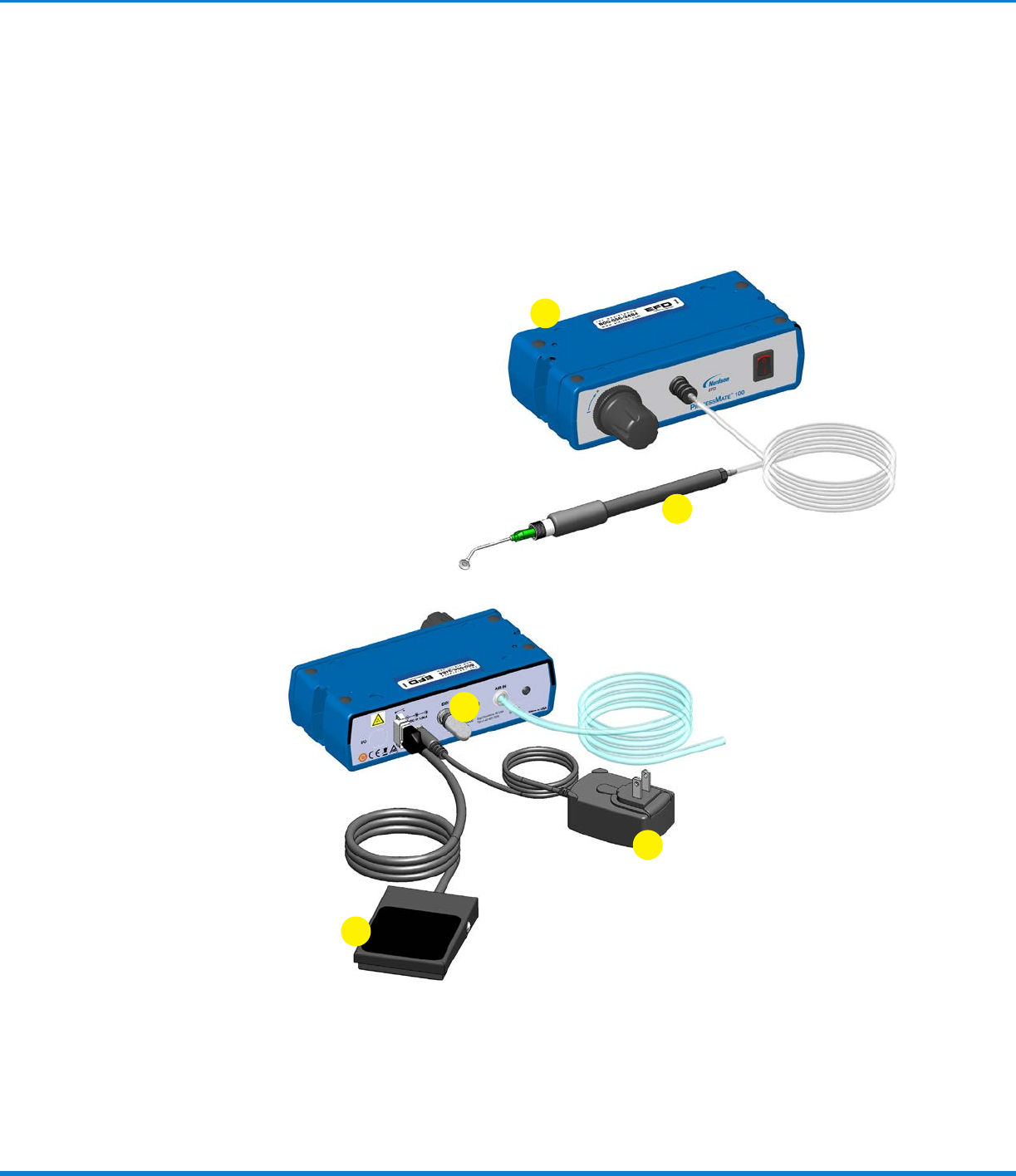

Unpack the Unit
Unpack the contents of the package and lay them out on a clean
workbench. The following items should be included with your
ProcessMate100 vacuum pickup system:
a. Vacuum unit
b. Foot pedal assembly
c. Power supply
d. Vacuum pickup pen / wand assembly
e. Muffler
1
Installation
b
c
e
13www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
ProcessMate 100 Vacuum Pick-Up System
2
Connect Air Supply
NOTE: Clean, dry filtered factory air is required to meet
warranty. If your air supply is not filtered, order the EFD
5-micron filter / regulator (#7002002).
a. Turn the air regulator adjustment knob to zero before
connecting the main air input to the ProcessMate100.
b. Push one end of the 6 mm air input hose into the AIR IN
input fitting on the back of the ProcessMate100.
c. Connect the other end of the hose to your plant air
supply.
d. Set the plant air supply from 5.5–6.9 bar (80–100 psi).
3
Connect Power
a. Locate the DC input connection on the back of your
ProcessMate100 vacuum pickup system.
b. Insert the DC Plug securely into the input connection.
c. Select the proper adapter from the power supply plug kit
and then connect the power supply to a grounded power
source.
NOTE: The power supply is multi-voltage, therefore no
external adjustments are required.
4
Connect Foot Pedal
The ProcessMate100 comes equipped with a foot pedal
cycle actuation device.
• Connect the foot pedal to the back of the
ProcessMate100.
NOTE: If you prefer, you can also operate the
ProcessMate100 with an optional finger switch (#7016718).
Installation (continued)
ProcessMate 100 Vacuum Pick-Up System
14 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
5
Attach Vacuum Pickup Pen / Wand
Assembly
a. Locate the air output quick connector located on the
front face of the ProcessMate100.
b. Attach the male quick connector on the vacuum pickup
pen / wand assembly to the output quick connector by
pushing and twisting.
Installation (continued)
6
Attach Tip & Suitable Vacuum Cup
• Twist on the appropriate pickup tip and select a cup to fit
the application need.
NOTE: A selection of pickup tips and cups was included
in the system package for your convenience. Please
contact an EFD Application Specialist should you need
assistance in selecting a special tip / cup to suit your
application needs.
7
Turn On Power to Unit
a. Locate the power switch on the front display panel of the
ProcessMate100.
b. To power the unit, simply switch the rocker switch to the
“red” position.
Your ProcessMate100 is now powered and ready to be
activated.
