ProcessMate 100 Vacuum Pick-Up System
18 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
1
2
3
4
5
6
7
8
9
10
11

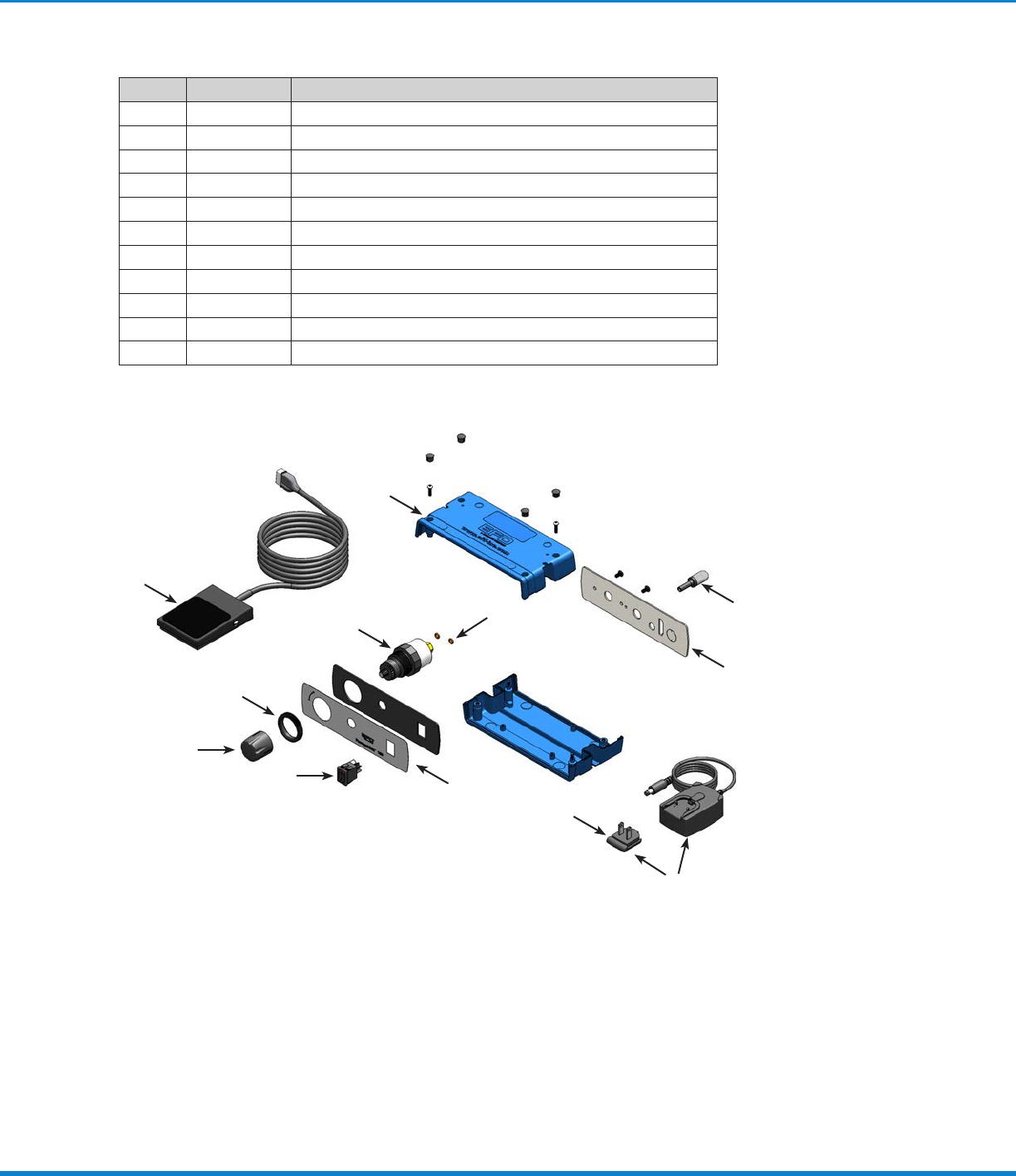

Replacement Parts
Item Part # Description
1 7012274 Regulator knob, black
2 — Regulator bezel
3 7012277 Regulator assembly, 0–100 psi
4 7014752 Regulator replacement O-rings
5 — On / off rocker switch assembly
6 — Overlay, front, PM100
7 — Panel, rear, PM100
8 7022009 Case, pack of 2 (top / bottom)
9 7015199 Universal power supply, power supply plug kit
10 7014865 Foot pedal assembly
11 — Muffler, 6 mm push-in
9
19www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
ProcessMate 100 Vacuum Pick-Up System
Troubleshooting
Problem Solution
No power Check the power supply connection and DC power supply to the unit.
No vacuum Check the main air supply and primary regulator.
Check to make sure that the main air supply is connected to the back of the unit and has not
come loose.
Check to make sure that the regulator is not turned off (fully counterclockwise).
Check the vacuum pickup pen wand assembly for possible contamination or clogs.
Check that the vacuum exhaust is not blocked or covered.
For heavier and larger items, use larger tips and cups and increase vacuum.
NORDSON EFD ONE YEAR LIMITED WARRANTY
This NordsonEFD product is warranted for one year from the date of purchase to be free
from defects in material and workmanship (but not against damage caused by misuse,
abrasion, corrosion, negligence, accident, faulty installation, or by dispensing material
incompatible with equipment) when the equipment is installed and operated in accordance
with factory recommendations and instructions.
NordsonEFD will repair or replace free of charge any defective part upon authorized return
of the part prepaid to our factory during the warranty period. The only exceptions are those
parts which normally wear and must be replaced routinely, such as, but not limited to, valve
diaphragms, seals, valve heads, needles, and nozzles.
In no event shall any liability or obligation of NordsonEFD arising from this warranty exceed
the purchase price of the equipment.
Before operation, the user shall determine the suitability of this product for its intended use,
and the user assumes all risk and liability whatsoever in connection therewith. NordsonEFD
makes no warranty of merchantability or fitness for a particular purpose. In no event shall
NordsonEFD be liable for incidental or consequential damages.
This warranty is valid only when oil-free, clean, dry, filtered air is used, where applicable.
