ProcessMate 100 Vacuum Pick-Up System
16 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

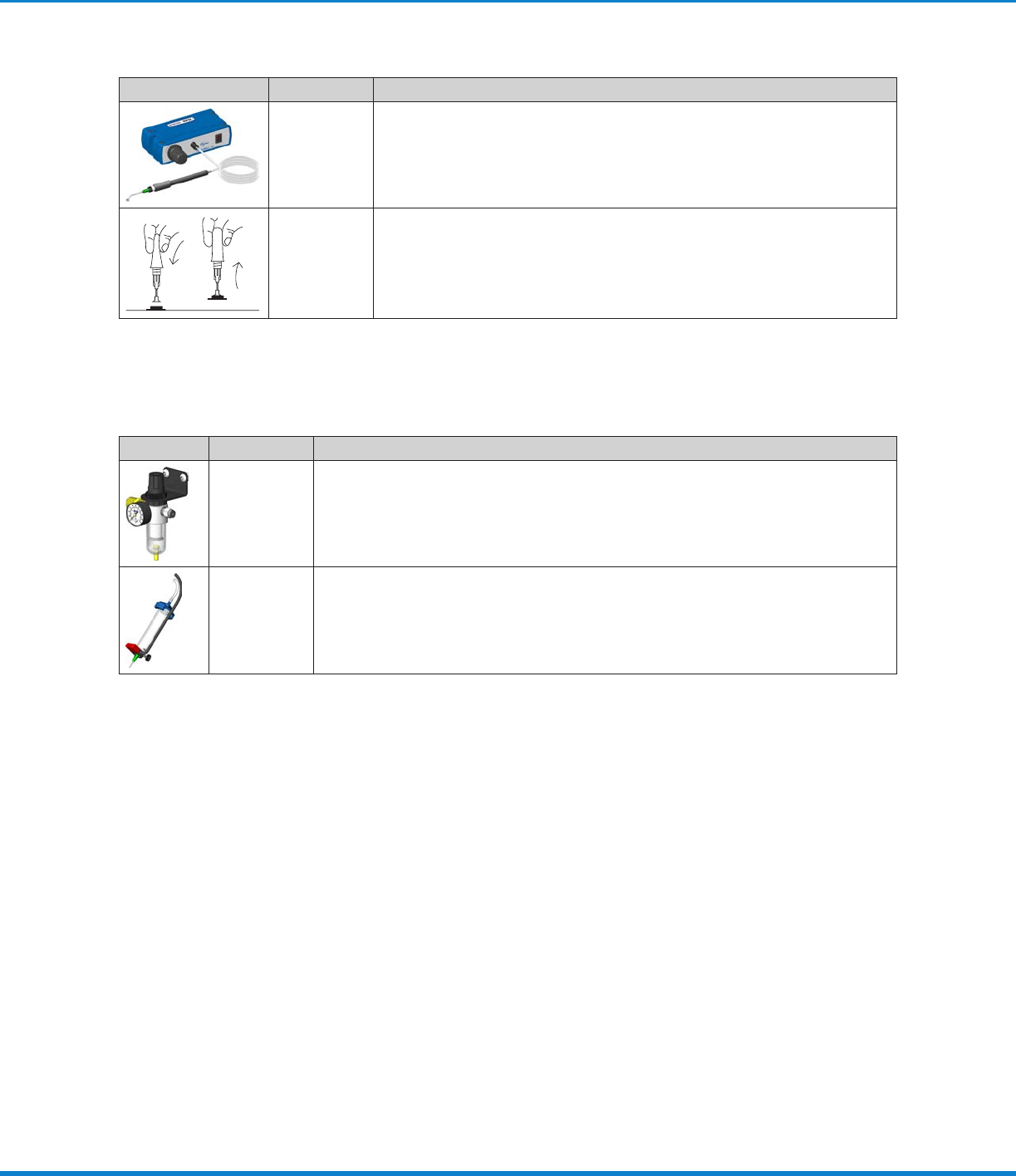

Part Numbers
Item Part # Description
7012329 ProcessMate100 Vacuum Pickup System
Includes assorted anti-static tips and vacuum cups.
7024803 VacTweezer
™
Pickup Tool
This kit includes the same assortment of silicone rubber vacuum cups and
tips, along with a small squeeze bulb with a luer fitting that attaches to the
tips to generate vacuum.
Accessories
Item Part # Description
7002002 5-micron filter regulator
Required for production areas where clean, dry filtered factory air is not available, or
to stabilize the plant air supply for more consistent deposits.
7016718 Finger switch
Replaces the foot pedal in applications where operators prefer to initiate the vacuum
cycle by hand.
17www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
ProcessMate 100 Vacuum Pick-Up System
Vacuum Pickup Pen
Part # Description
7016107 Vacuum pickup pen (complete)
Vacuum Straight Tips (does not include vacuum cups)
Part # Size Description Quantity
7018043 14 gauge Tips (olive) 50/box
7018233 21 gauge Tips (purple) 50/box
Vacuum Pickup Tips, 45º Angled (does not include vacuum cups)
Part # Size Description Quantity
7016906 14 gauge Tips (olive) 50/box
7016908 18 gauge Tips (green) 50/box
7016910 21 gauge Tips (purple) 50/box
Vacuum Cups
Part # Size Description Quantity
7016889 0.0938" diameter Vacuum cups 10/box
7016883 0.1250" diameter Vacuum cups 10/box
7016887 0.1875" diameter Vacuum cups 10/box
7016881 0.2500" diameter Vacuum cups 10/box
7016891 0.3750" diameter Vacuum cups 10/box
Accessories (continued)
ProcessMate 100 Vacuum Pick-Up System
18 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
1
2
3
4
5
6
7
8
9
10
11
Replacement Parts
Item Part # Description
1 7012274 Regulator knob, black
2 — Regulator bezel
3 7012277 Regulator assembly, 0–100 psi
4 7014752 Regulator replacement O-rings
5 — On / off rocker switch assembly
6 — Overlay, front, PM100
7 — Panel, rear, PM100
8 7022009 Case, pack of 2 (top / bottom)
9 7015199 Universal power supply, power supply plug kit
10 7014865 Foot pedal assembly
11 — Muffler, 6 mm push-in
