38 Technical Data Transport and Delivery Configuration Description The machine and the compo- nent changeover tables will be supplied on two pa llets on mainland Europe. They will be dispatched overseas in two robust woo…
37
Technical Data

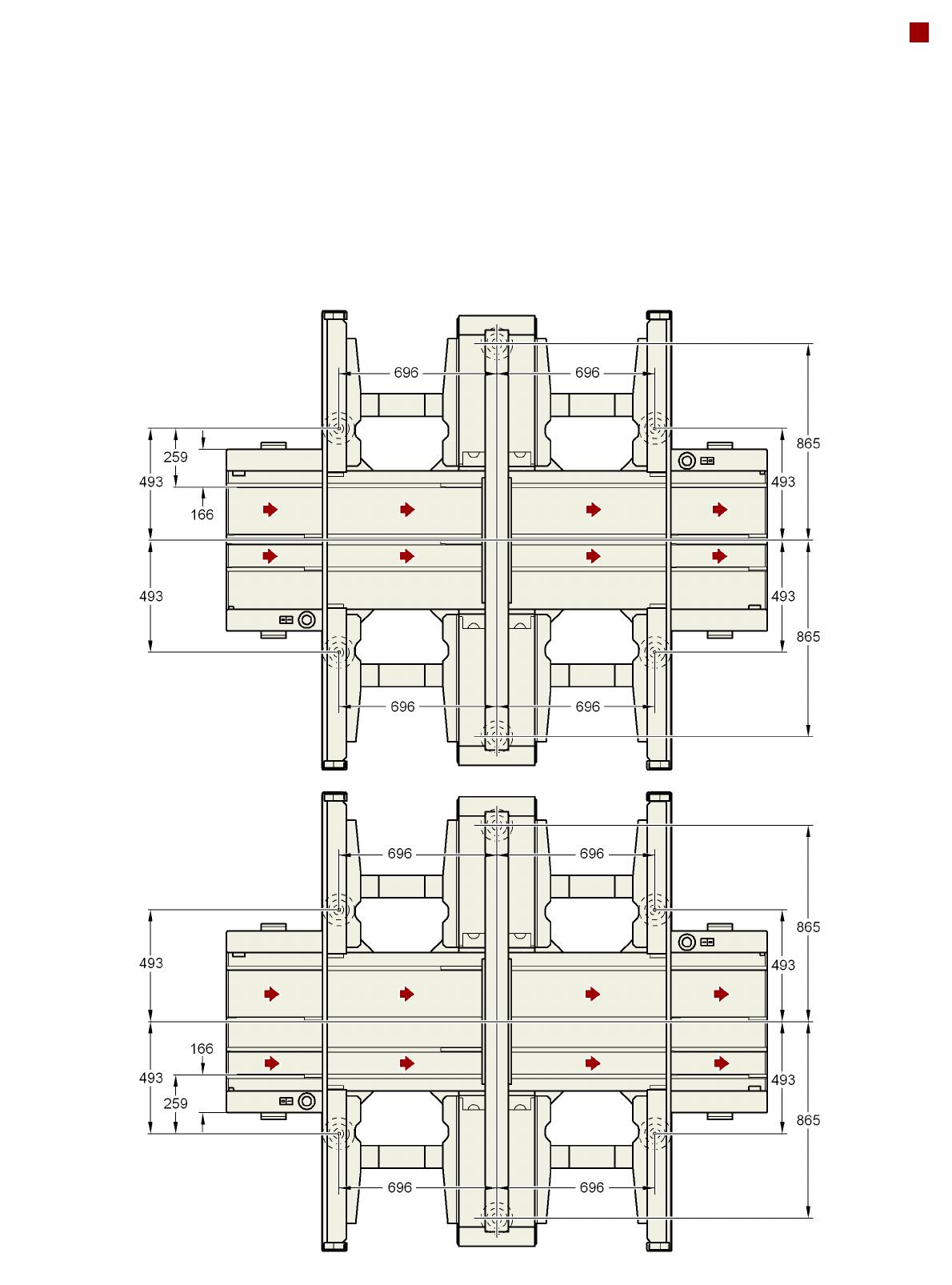

Spacing Distances for the Flexible
Dual Conveyor
Stationary conveyor
side right
Stationary conveyor
side left
38
Technical Data
Transport and Delivery Configuration
Description
The machine and the compo-
nent changeover tables will
be supplied on two pallets on
mainland Europe. They will
be dispatched overseas in
two robust wooden crates.
Configuration when
delivered
• Both keyboards and the
monitors are discon-
nected.
• Both main fault indicators
are disconnected.
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
Transport dimensions and weight
Crate for the machine Crate for the CO changeover tables
Length
Width
Height
2590 mm
2410 mm
1610 mm
1705 mm
1200 mm
1300 mm
Weight Dispatch within Europe Dispatch overseas
Placement machine 3326 kg 3594 kg
Component changeover
table
462 kg 556 kg

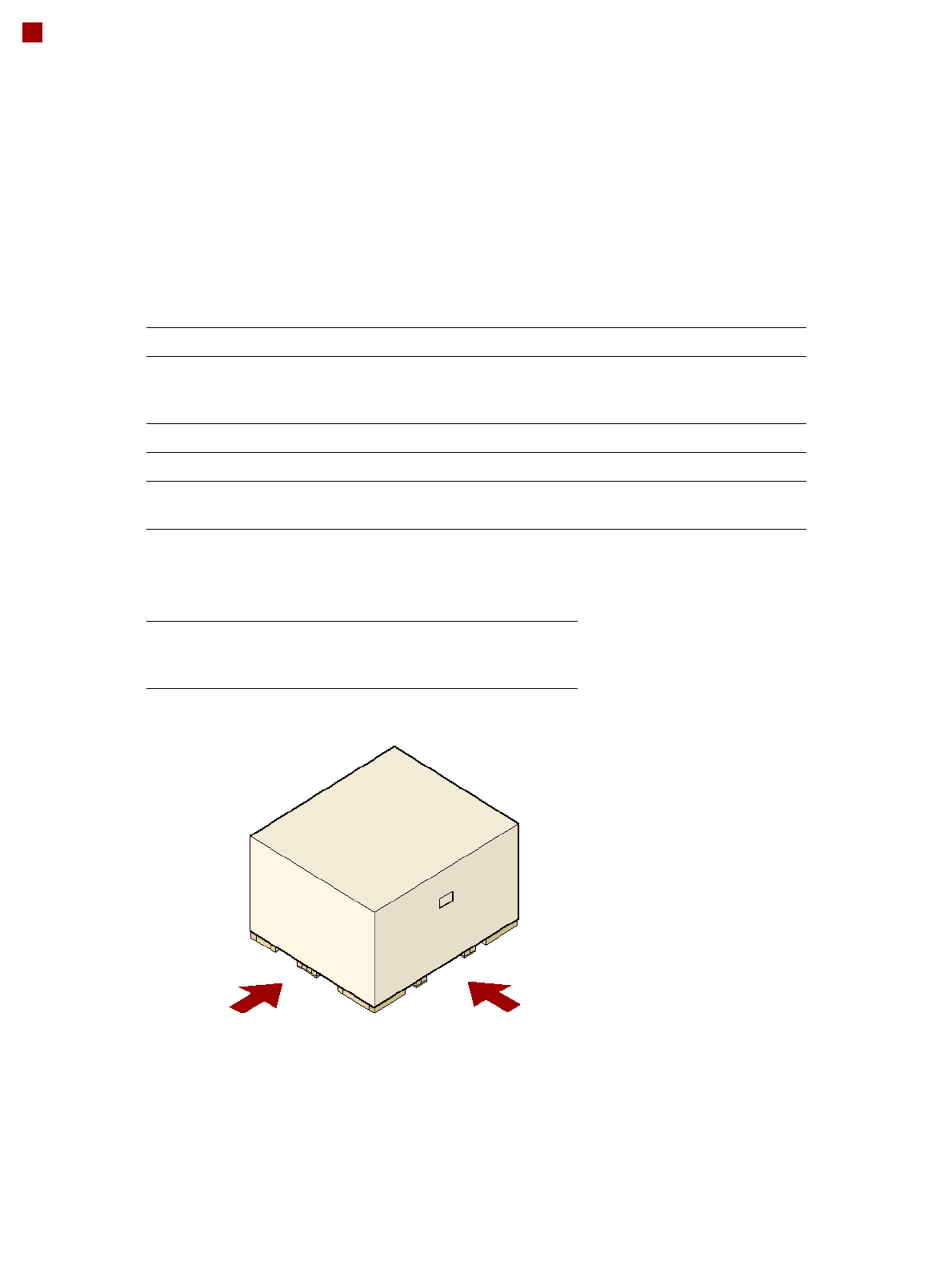

Engagement point
for the fork-lift
Engagement point
for the fork-lift
39
Standard List
The following functions are included with the SIPLACE D4 as standard at no additional cost:
SIPLACE D4 standard features
Vacuum sensor X
Force sensor X
Fiducial & ink spot recognition X
Set of standard nozzles per head X
Service box X
Single conveyor, stationary side right X
Single conveyor, stationary side left X
PCB buffer function on conveyor X
PCB stopper laser light barrier X
Automatic electrical width adjustment X
Operation on both sides X
LCD monitors X
Touch-screen monitor X
Indicator lamp X
Tape cutter with reject bin X
Tape separating plates X
Multicolor PCB camera X
Magnetic pin support X
