FlexTRAK Series 2MB Electrode Fixtur in g Addendum Parts Replacement 8 © 2023 Nordson Corporation Item Description 7 ELECTRODE PLATE 8 ELECTRODE STANDOFF 9 ELECTRODE STANDOFF Figure 3-4 Aluminum Electrode Fixturing Assem…
FlexTRAK Series 2MB Electrode Fixturing Addendum Parts Replacement
© 2023 Nordson Corporation 7
Item Description
4 ELECTRODE PLATE
5 ELECTRODE STANDOFF

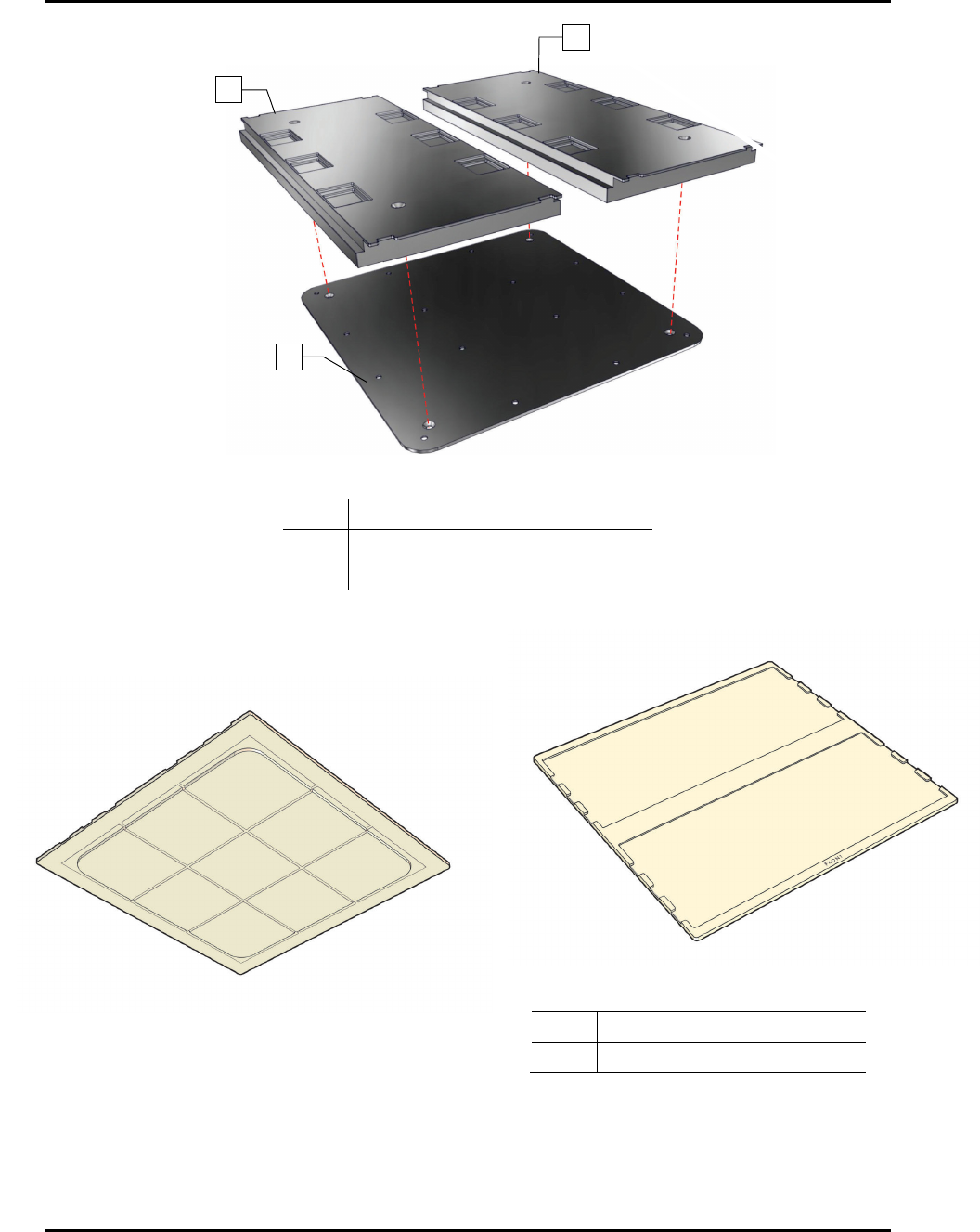

Figure 3-2 Aluminum Electrode Fixturing Assembly for 136mm-Process Carrier
Item Description
6 ELECTRODE STANDOFF
Figure 3-3 Ceramic Electrode Fixturing Assembly for 136mm-Process Carrier
5
4
5
FlexTRAK Series 2MB Electrode Fixturing Addendum Parts Replacement
8 © 2023 Nordson Corporation
Item Description
7 ELECTRODE PLATE
8 ELECTRODE STANDOFF
9 ELECTRODE STANDOFF

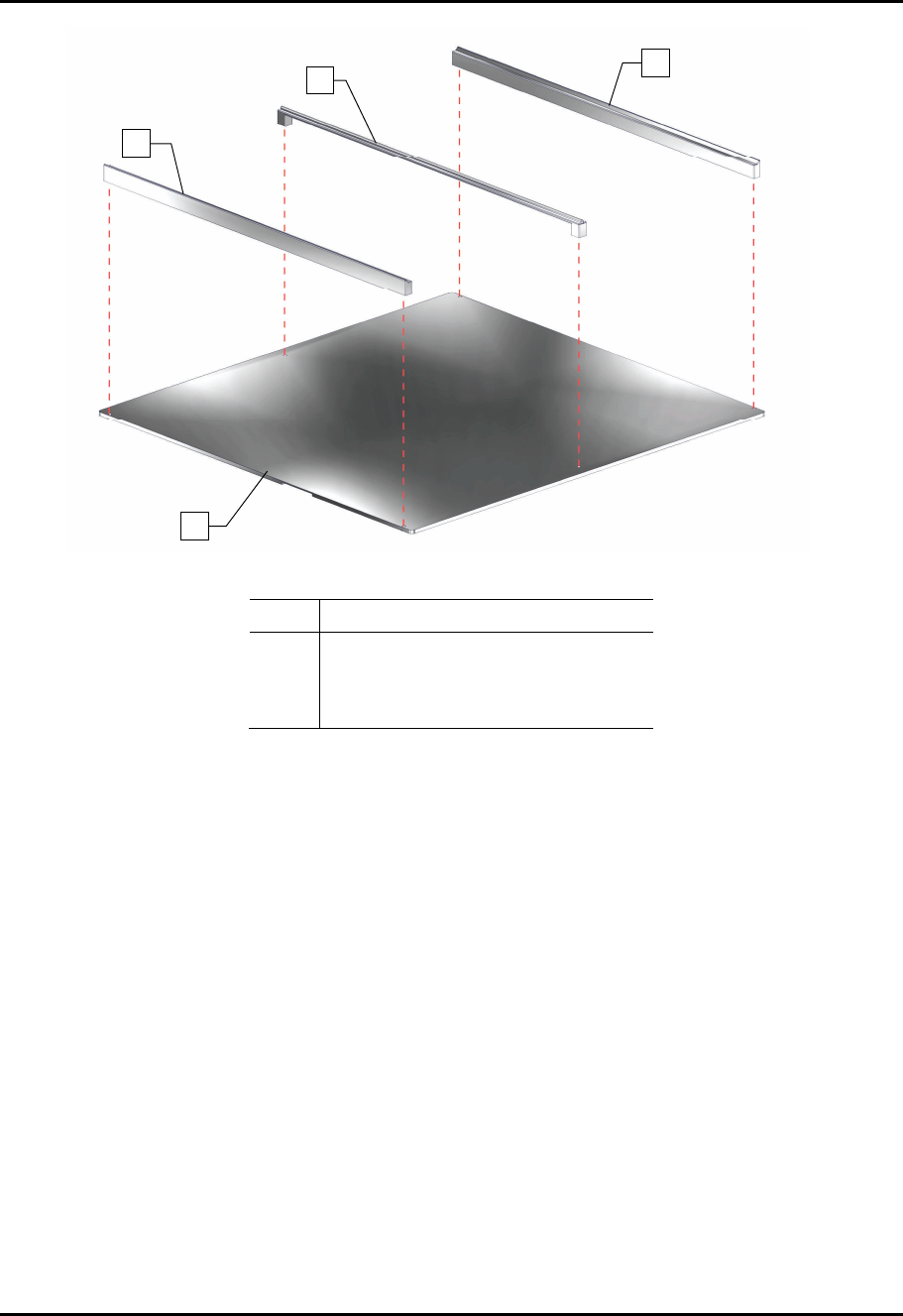

Figure 3-4 Aluminum Electrode Fixturing Assembly for 160mm-Process Carrier
8
7
8
9
9 © 2023 Nordson Corporation
4 - Recommended Maintenance
4.1 Overview
User-performed maintenance required for the FlexTRAK-2MB Electrode Fixturing
Assembly is minimal. However, regular attention to the suggested maintenance tasks
listed in Table 4-1 will help to ensure proper operation and maximum availability of
the system.
Note: Maintenance interval depends on the level of system use. Intervals specified
in Table 4-1 are for systems averaging 12 hours or more per day.
Table 4-1 Recommended Maintenance
Task List Interval Reference Section
Electrode Plate Quarterly See 4.2 Inspection and Cleaning
Electrode Standoff Quarterly See 4.2 Inspection and Cleaning
Tools and Materials Needed
r
Isopropyl
a
lcohol
r
Personal
p
rotective
e
quipment
r
Clean, lint
-
free cloth
r
Phillips
screw driver
4
