Installation Manual for Windows 2000 Professional (manual setup) Edition 10/2005 US
→ Select the upper option “Users must enter a user name and password to use this computer”.
→ Click the button Next.
Finish the wizard.
Fig. 2-16: Finish wizard
→ Click the button Next.
The computer will reboot and installation will be completed.
The logon screen will appear.
Fig. 2-17: Logon
→ Please logon to complete this part of installation.
15
Installation Manual for Windows 2000 Professional (manual setup) Edition 10/2005 US
2.2 Configure Network parameters
Windows will always configure the network configuration parameters automatically, if it can do that.
When no network infrastructure, like a DHCP Server, is available it will use some default values.
Normally it is necessary to adjust these parameters.
→ Start Configuration by selecting Start Æ Settings Æ Network and Dial-up Connections
You will see a Connection for every network card in your computer
Fig. 2-18: Network configuration
Note:
Normally you will see one network connection “Local Area Connection”.
→ Click on “Local Area Connection”
Fig. 2-19: Local Area Connection
16
Installation Manual for Windows 2000 Professional (manual setup) Edition 10/2005 US

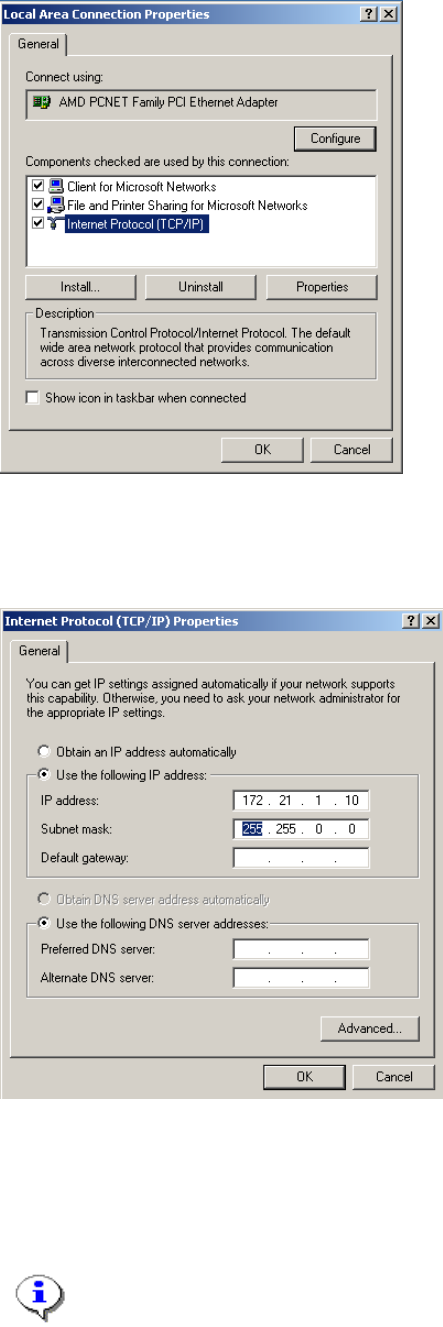

Fig. 2-20: Configure Network connection
→ Select the network component “Internet Protocol (TCP/IP)”
→ Select the button Properties
Fig. 2-21: TCP IP Configuration
→ Select the option “Use the following IP address”
→ Select the button Properties
→ Enter the IP address as well as the network mask.
Note:
This configuration is for an island configuration. The customer might have other
configuration parameter here for you to enter.
→ Click the button Ok and close all opened dialogs.
