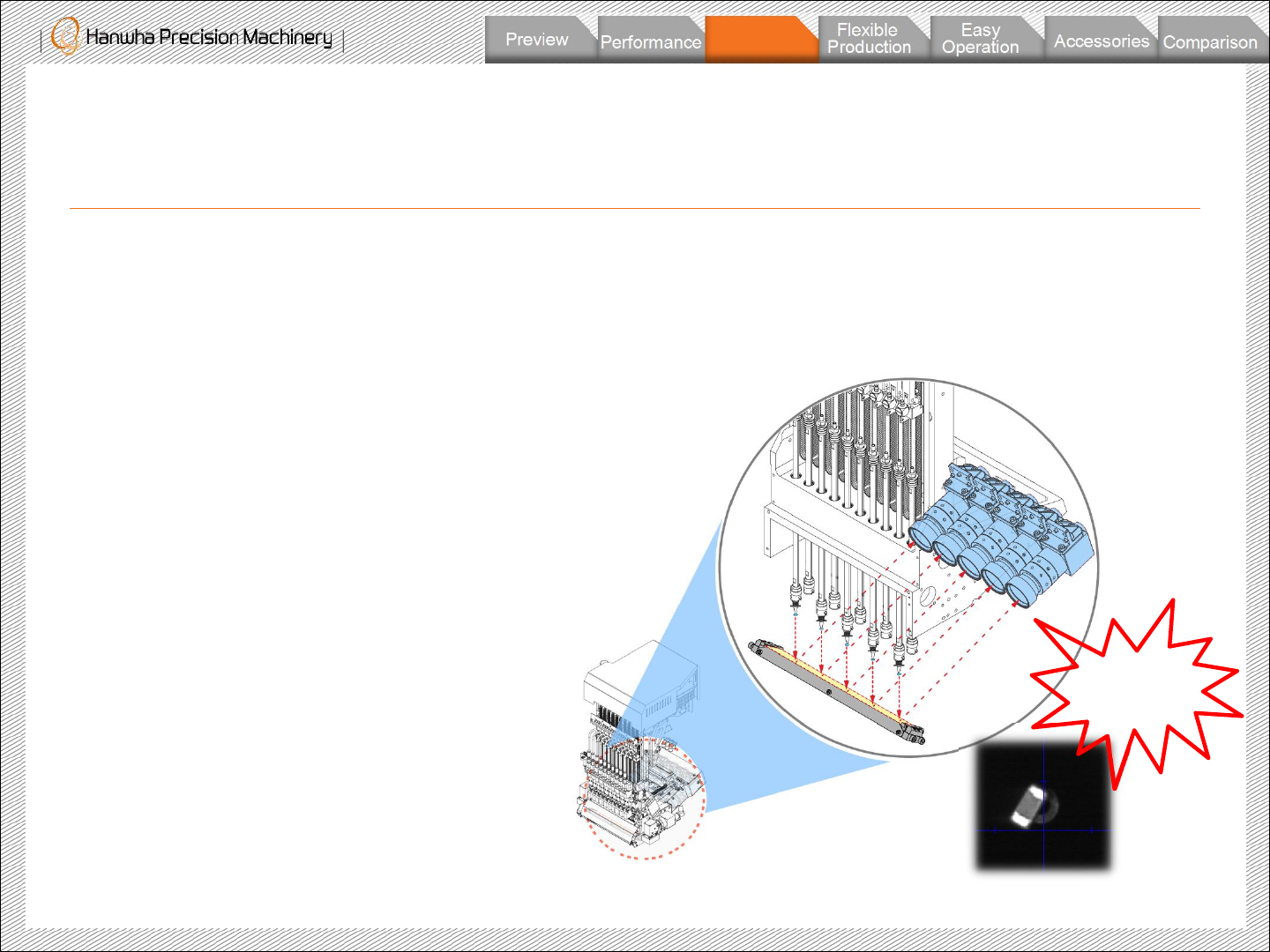

▌FVS(Fly Vision Verification System)
- 生产过程中在特定时点利用Fly Camera检查吸嘴状态地防止吸取/贴装错误
- 检查吸嘴污染时点
ANC 前/后
贴装元件 前/后
抛料后
- 用对象
CN065(Chip 1608), CN040(Chip 1005),
CN030(Chip 0603), CN020(Chip 0402)
High Reliability
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
提高贴装精度

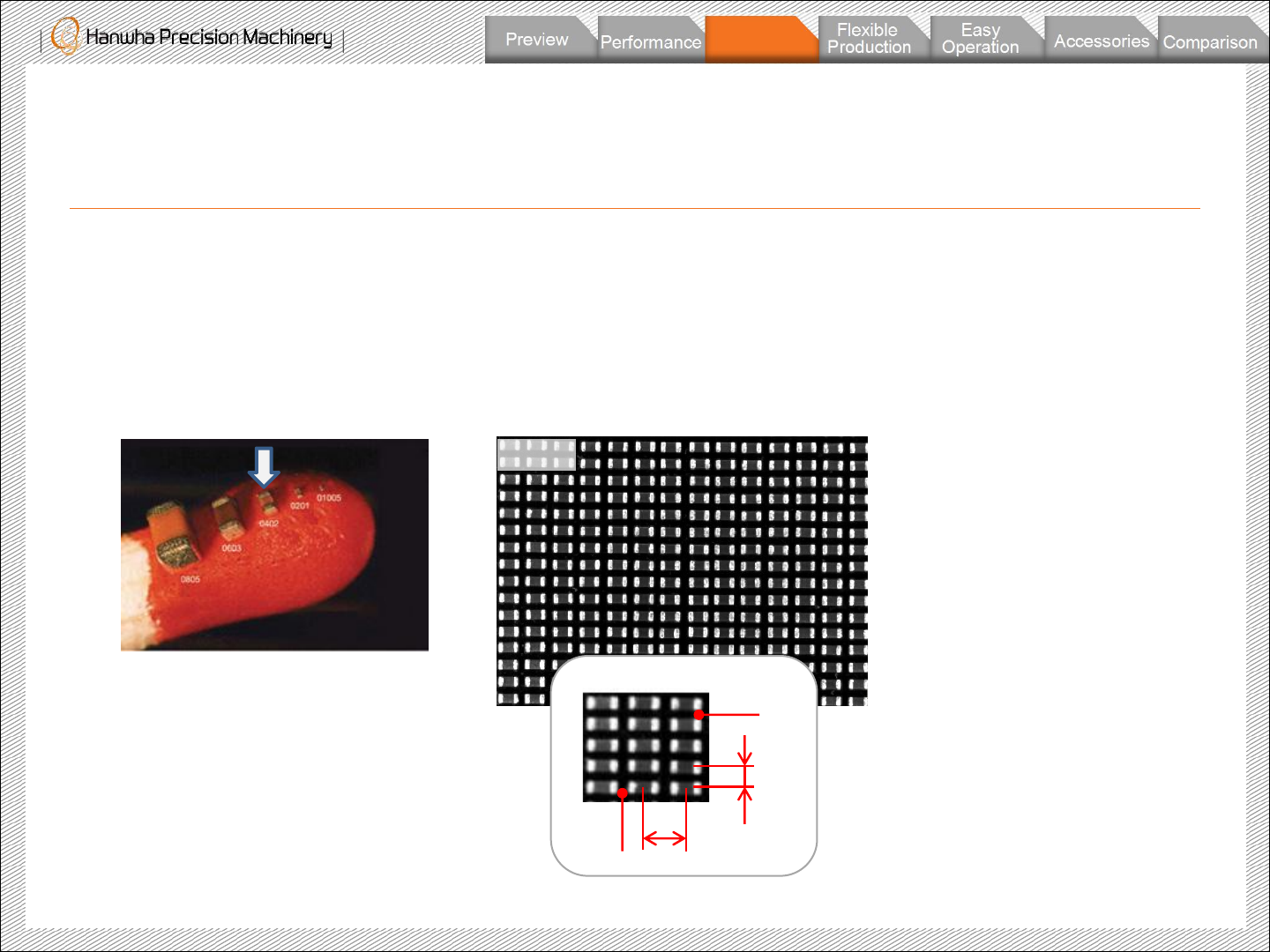

▌实现贴装精度±40㎛(0402)
- 设备本身提供CPK测量功能，将测量结果适用于Mount Offset，实现高精度
0402
0.5mm
0.3mm
0.1mm
0.1mm
Preview
Flexible
Production
Easy
Operation
Comparison
Accessories
Performance
Reliability
0402 chi
p
High Reliability
