Copyright ⓒ 201 7 Hanwha Precision M achinery Co., Ltd. a ll rights reserved. Summar y ▌ High Perform ance - 更改 X 、 Y 轴马达:速度 相比于 SM 481 提高了 2.6% ▌ High Reliabi lity - 利用 Fl y Camer a 检查吸嘴 状态 - Accura cy: ± 40u m, Cpk≥ 1.…
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
▌High Performance
- 大幅提高了小型基板生产效率(Dual Lane)
- 更改X、Y轴马达:速度相比于SM471提高了4%
▌High Reliability
- 利用Fly Camera检查吸嘴状态
- Accuracy: ±40um, Cpk≥1.0 (0402)
▶ SM471: ±50um, Cpk≥1.0 (0402)
▌Flexible Production
- 支持各种基于生产特性的生产模式
- 可应对PCB尺寸: L610 x W460mm
▌Easy Operation
- 可以混合使用气压式/电动式供料器
- 改善MMI功能
NPE, Panorama View, Multi-Vendor
l Structure 2 Gantries x 10 spindles/Head
l Speed 78,000 CPH (Optimum)
l Accuracy ±40㎛ Cpk≥1.0 (0402)
±50㎛ Cpk≥1.0 (QFP)
l Parts Size 0402 ~ □14mm, H12mm (Fly Cam.)
l PCB Size: Max. 510 x 460 (Standard)
Max. 610 x 460 (Option)
Summary
Performance
Preview
Reliability
Flexible
Production
Easy
Operation
Comparison
Accessories

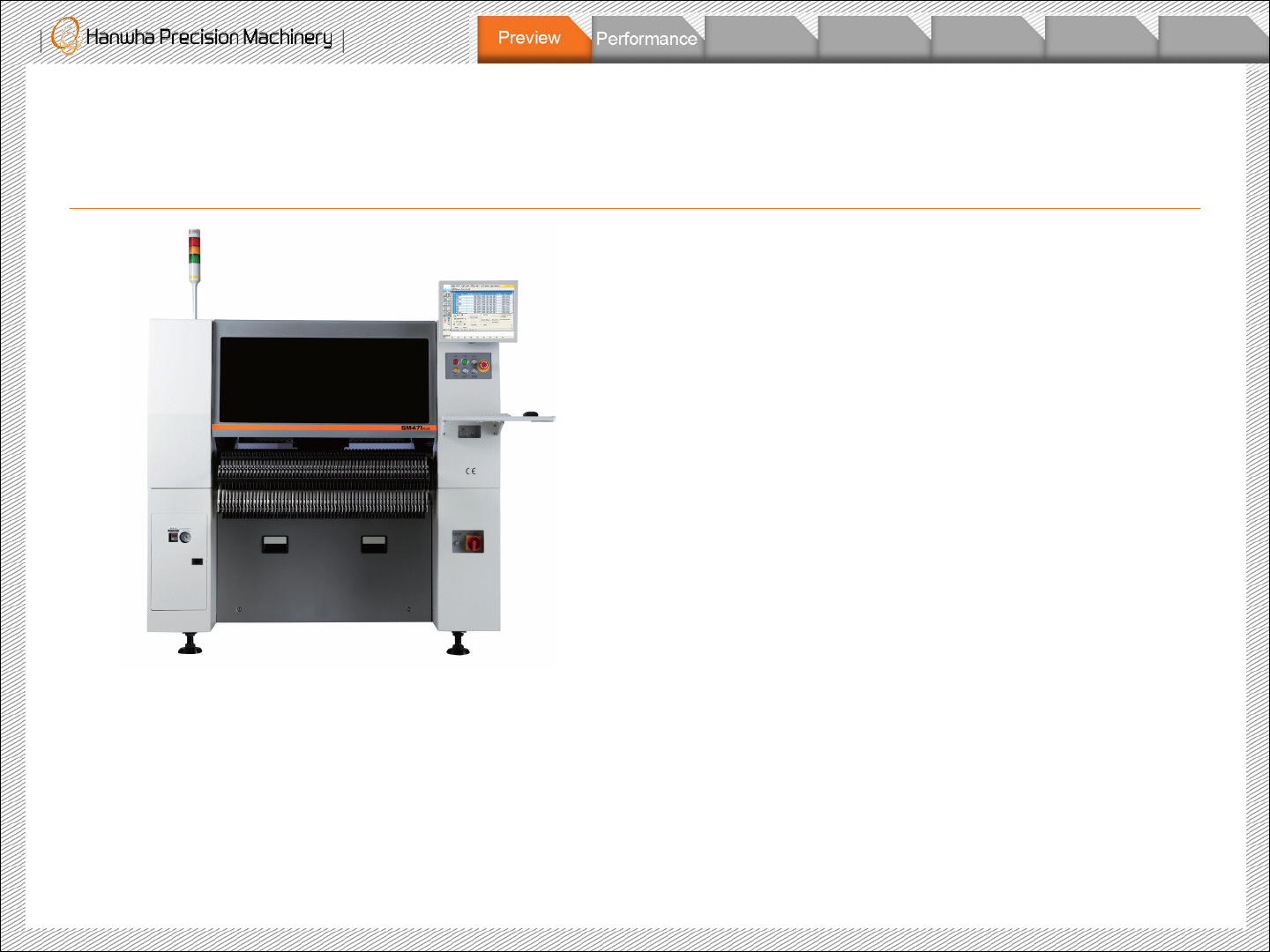

SM471 PLUS: Fast Chip Shooter
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
Summary
▌High Performance
- 更改X、Y轴马达:速度相比于SM481提高了2.6%
▌High Reliability
- 利用Fly Camera检查吸嘴状态
- Accuracy: ±40um, Cpk≥1.0 (0402)
▶ SM481: ±50um, Cpk≥1.0 (0402)
▌Flexible Production
- 可应对PCB尺寸: L740 x W460mm
Max. (L)1,500 x (W)460 (预定适用到2017.05为止)
▌Easy Operation
- 可以混合使用气压式/电动式供料器
- 改善MMI功能
NPE, Panorama View, Multi-Vendor
Performance
Preview
Reliability
Flexible
Production
Easy
Operation
Comparison
Accessories
l Structure 1 Gantry x 10 spindles/Head
l Speed 40,000 CPH (Optimum)
l Accuracy ±40㎛ Cpk≥1.0 (0402)
±30㎛ Cpk≥1.0 (IC, Fix Camera)
l Parts Size 0402 ~ □16mm, H10mm (Fly Cam.)
~ □42mm, H15mm (Fix Cam. , Option)
l PCB Size: Max. 460 x 400 (Standard)
Max. 740 x 460 (Option)

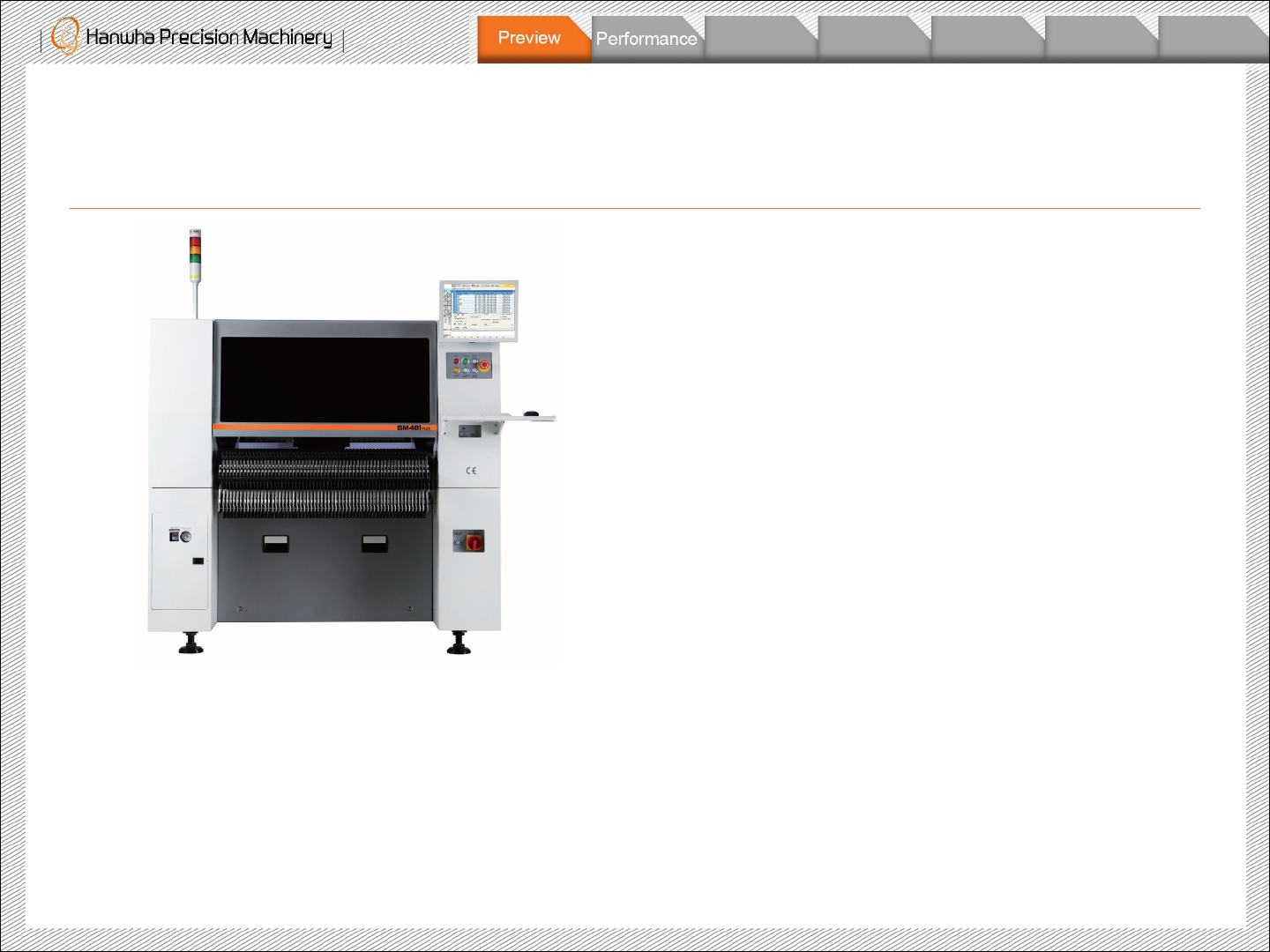

SM481 PLUS: Flexible Placer
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
Summary
Performance
Preview
Reliability
Flexible
Production
Easy
Operation
Comparison
Accessories
l Structure 1 Gantry x 6 spindles/Head
l Speed 30,000 CPH (Optimum)
l Accuracy ±40㎛ Cpk≥1.0 (0402)
±30㎛ Cpk≥1.0 (IC, Fix Camera)
l Parts Size 0603 ~ □22mm, H12mm (Fly Cam.)
~ □55mm, L75mm, H15mm (Fix Cam. , Option)
l PCB Size: Max. 460 x 400 (Standard)
Max. 740 x 460 (Option)
SM482 PLUS: Multi-Functional Placer
▌High Performance
- 更改X、Y轴马达:速度相比于SM482提高了7%
▌High Reliability
- 利用Fly Camera检查吸嘴状态
- Accuracy: ±40um, Cpk≥1.0 (0402)
▶ SM482: ±50um, Cpk≥1.0 (0402)
▌Flexible Production
- 可应对PCB尺寸: L740 x W460mm
Max. (L)1,200 x (W)460 (预定适用到2017.05为止)
▌Easy Operation
- 可以混合使用气压式/电动式供料器
- 改善MMI功能
NPE, Panorama View, Multi-Vendor
