Copyright ⓒ 201 7 Hanwha Precision M achinery Co., Ltd. a ll rights reserved. Preview Performa nce Reliability Flexible Production Easy Operation Accessories Comparison Item SM482 PLUS YS12F Comparison Spindle / Gantry 6…
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
Preview
Performance
Reliability
Flexible
Production
Easy
Operation
Accessories
Comparison
Item
SM481 PLUS
YS12
Comparison
Spindle / Gantry
10 Spindles×1 Gantry
10 Spindles × 1 Gantry
-
Speed
(Optimum / IPC9850)
40,000 CPH
/ 32,000 CPH
36,000 CPH
/ 20,000 CPH
▲
Vision
Fly/Fix
Fly/Fix
-
Accuracy
(Cpk≥1.0)
Chip
±40㎛(0402,Cpk>1.0)
±30㎛(0402,Cpk>1.0)
▼
IC
±30㎛(Cpk>1.0)
±30㎛(Cpk>1.0)
-
Applicable
Component
Size
0402 ~ □16mm
(Option : ~□42mm)
0402 ~ □8mm
(Option : ~□32mm)
△
Height
10mm (Option : 15mm)
6.5mm
▲
Conveyor System
Single Lane
Single Lane
-
Max. PCB (L×W, mm)
460(L)×400(W)
Max. 740(L)×460(W) (Option)
510(L)×460(W)
▲
Feeder Slot (8mm Tape)
120 Slots
(D/Cart : 56*2=112 Slots)
120 Slots
-
设备规格对比 : SM481 PLUS vs YS12
Comparison with Competitor’s
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
Preview
Performance
Reliability
Flexible
Production
Easy
Operation
Accessories
Comparison
Item
SM482 PLUS
YS12F
Comparison
Spindle / Gantry
6 Spindles ×1 Gantry
5 Spindles × 1 Gantry
-
Speed (Optimum)
30,000 CPH
20,000 CPH
▲
Vision
Fly/Fix
Fix
-
Accuracy
(Cpk≥1.0)
Chip
±40㎛(0402,Cpk>1.0)
±30㎛(0402,Cpk>1.0)
▼
IC
±30㎛(Cpk>1.0)
±30㎛(Cpk>1.0)
-
Applicable
Component
Size
0402 ~ □14
(Option : ~□55mm,
75mm Connector)
0402 ~ 45*100mm
-
Height
15mm
15mm
-
Conveyor System
Single Lane
Single Lane
-
Max. PCB (L×W, mm)
460(L)x400(W)
Max.760(L)x460(W)(Option)
510(L)×460(W)
▲
Feeder Slot (8mm Tape)
120 Slots
(D/Cart : 56*2=112 Slots)
106 Slots
-
设备规格对比 : SM482 PLUS vs YS12F
Comparison with Competitor’s
Copyright ⓒ 2017 Hanwha Precision Machinery Co., Ltd. all rights reserved.
SM471/481/482 PLUS
YS24/12/12F

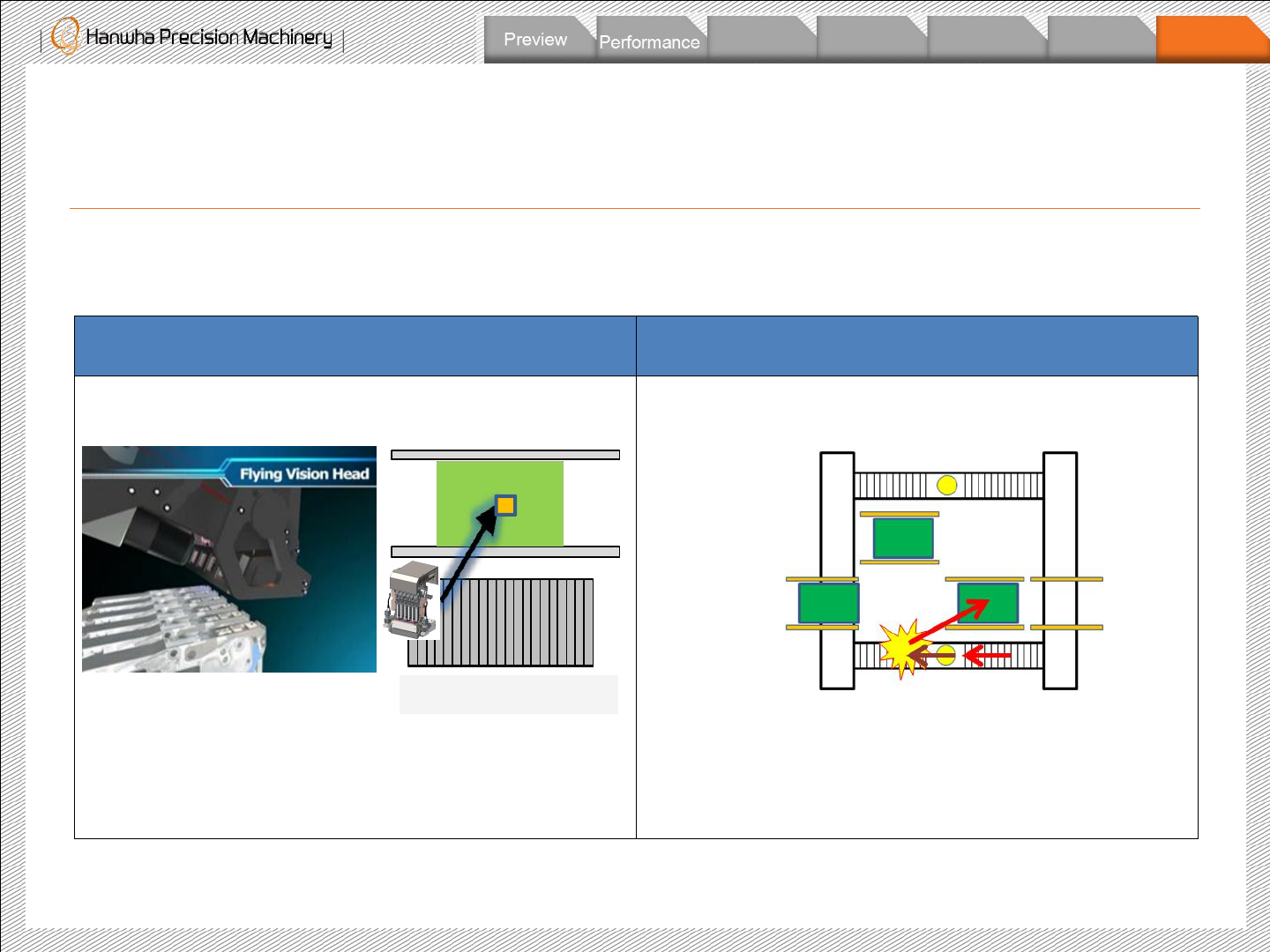

视觉系统 (On the Fly)
Comparison with Competitor’s
Preview
Performance
Reliability
Flexible
Production
Easy
Operation
Accessories
Comparison
▌大幅减少了吸取位置与贴装位置之间的移动时间
Fly Camera识别
Short Strok
e
• 14㎜以下的元件以Fly Camera识别
• 超过14㎜的元件则以Fix Camera识别
SM481/482PLUS
• 8㎜以下的元件以Fly Line Scan识别
• 超过8㎜的元件则以Stage Camera识别
