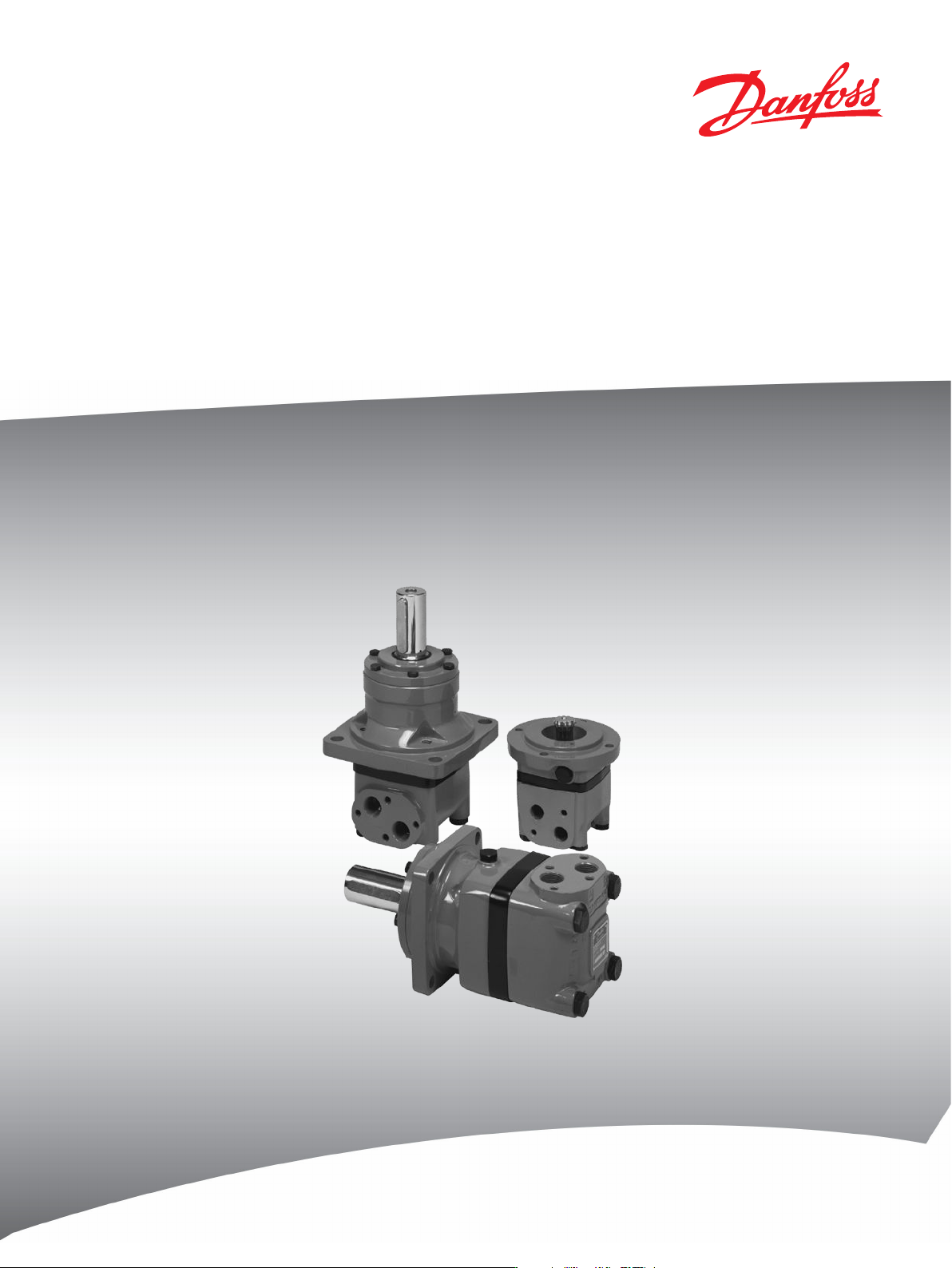

MAKING MODERN LIVING POSSIBLE T e c h n i c a l I n f o r m a t i o n Orbital Motors OMS, OMT and OMV powersolutions.danfoss.com
Speed, torque and output
80 100 125 160 200 250 315 400 500 160 200 250 315 400 500 315 400 500 630 800
80 100 125 160 200 250 315 400 500 160 200 250 315 400 500 315 400 500 630 800
80 100 125 160 200 250 315 400 500 160 200 250 315 400 500 315 400 500 630 800
800
600
400
200
22000
20000
18000
16000
14000
12000
10000
8000
6000
4000
2000
2400
2200
2000
1800
1600
1400
1200
1000
800
600
400
200
80
60
40
20
60
50
40
30
20
10
OMS OMT OMV
151-1407.11
hp kW
lbf•in
min
-1
(rpm)
Nm
Max. speed
Max. Torque
Max. output
Intermittend values Continuous values
The bar diagrams above are useful for a quick selection of relevant motor size for the application. The
final motor size can be determined by using the function diagram for each motor size.
•
OMS Function diagrams on page 18
•
OMT Function diagrams on page 54
Technical Information
OMS, OMT and OMV Orbital Motors
OMS, OMT and OMV
520L0407 • Rev 0601 • February 2016 7
•
OMV Function diagrams on page 81
The function diagrams are based on actual tests on a representative number of motors from our
production. The diagrams apply to a return pressure between 5 and 10 bar [75 and 150 psi] when using
mineral based hydraulic oil with a viscosity of 35 mm²/s [165 SUS] and a temperature of 50°C [120°F]. For
further explanation concerning how to read and use the function diagrams, please consult the paragraph
"Selection of motor size" in the technical information "General Orbital motors" 520L0232.
