Technical data for OMT, OMTW, OMTS, OMT FX OMT FL and OMT FH (continued) Type OMT OMTW OMTS OMT FX OMT FL OMT FH OMT OMTW OMTS OMT FX OMT FL OMT FH OMT OMTW OMTS OMT FX OMT FL OMT FH OMT OMTW OMTS OMT FX OMT FL OMT FH OM…

100%1 / 33
151-1405.10

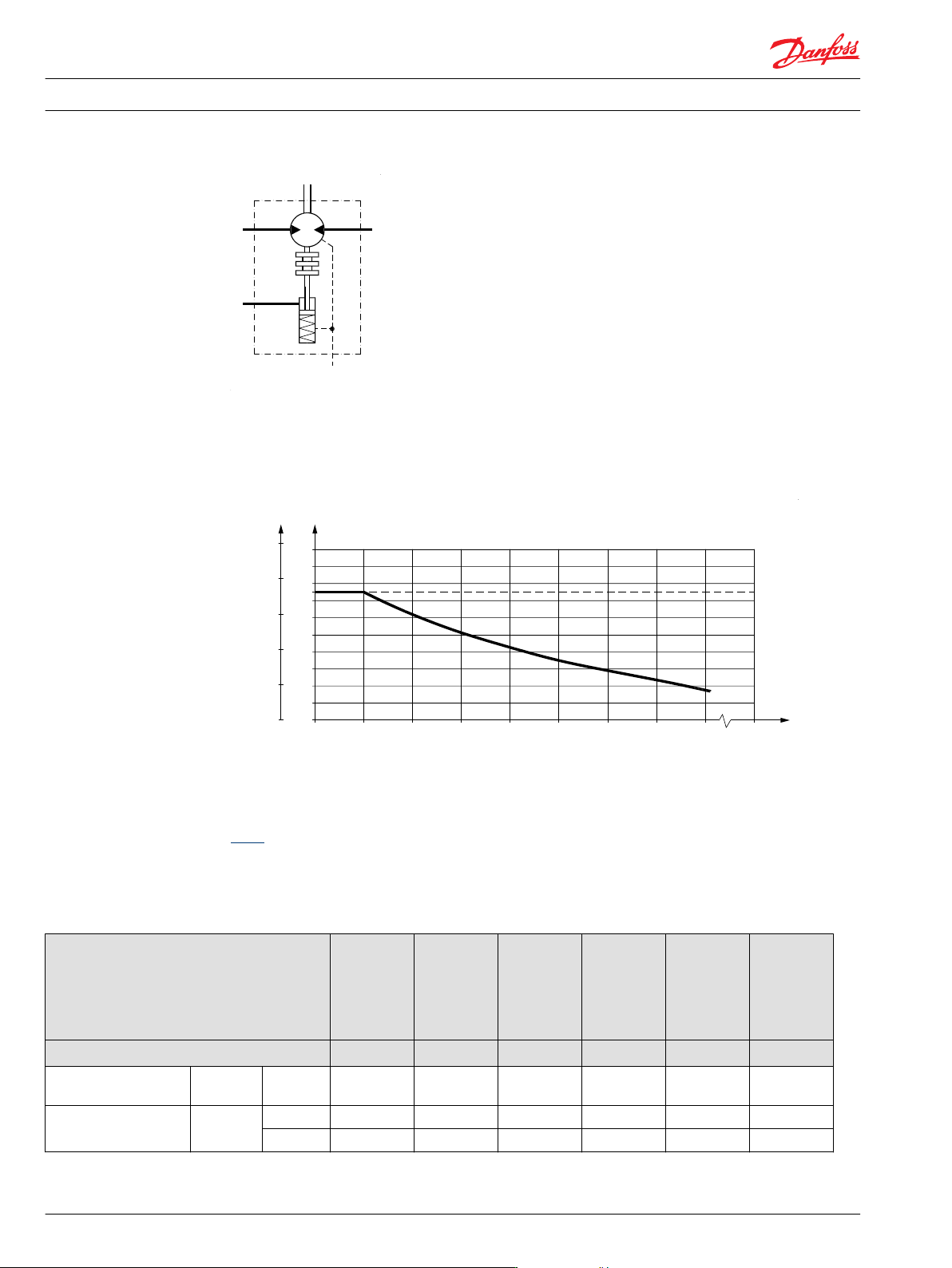

Maximum return pressure
The shaft seal pressure equals the pressure on the drain line.
Maximum return pressure without drain line or maximum pressure in the drain line
– – – – Intermittent operation: the permissible values may occur for max. 10% of every minute.
Continuous operation
151-1674.10
0 100 200 300 400 500 600 700 800 max.
1500
1200
900
600
300
0
100
90
80
70
60
50
40
30
20
10
0
psi bar
P P
min
-1
(rpm)
OMT, OMTW, OMTS, OMT FX OMT FL and OMT FH
Technical data for OMT, OMTW, OMTS, OMT FX OMT FL and OMT FH
Type OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
Motor size 160 200 250 315 400 500
Geometric displacement cm
3
[in
3
]
161.1
[9.83]
201.4
[12.29]
251.8
[15.37]
326.3
[19.91]
410.9
[25.07]
523.6
[31.95]
Maximum speed min
-1
[rpm]
cont. 625 625 500 380 305 240
int
1)
780 750 600 460 365 285
Technical Information OMS, OMT and OMV Orbital Motors
OMT
48 520L0407 • Rev 0601 • February 2016
Technical data for OMT, OMTW, OMTS, OMT FX OMT FL and OMT FH (continued)
Type OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
OMT
OMTW
OMTS
OMT FX
OMT FL
OMT FH
Motor size 160 200 250 315 400 500
Maximum torque Nm
[lbf·in]
cont. 470
[4160]
590
[5220]
730
[6460]
950
[8410]
1080
[9560]
1220
[10800]
int.
1)
560
[4960]
710
[6280]
880
[7790]
1140
[10090]
1260
[11150]
1370
[12130]
Maximum output kW
[hp]
cont. 26.5
[35.5]
33.5
[44.9]
33.5
[44.9]
33.5
[44.9]
30.0
[40.2]
26.5
[35.5]
int.
1)
32.0
[42.9]
40.0
[53.6]
40.0
[53.6]
40.0
[53.6]
35.0
[46.9]
30.0
[40.2]
Maximum pressure drop bar
[psi]
cont. 200
[2900]
200
[2900]
200
[2900]
200
[2900]
180
[2610]
160
[2320]
int.
1)
240
[3480]
240
[3480]
240
[3480]
240
[3480]
210
[3050]
180
[2610]
peak
2)
280
[4060]
280
[4060]
280
[4060]
280
[4060]
240
[3480]
210
[3050]
Maximum oil flow l/min
[USgal/min]
cont. 100
[26.4]
125
[33.0]
125
[33.0]
125
[33.0]
125
[33.0]
125
[33.0]
int.
1)
125
[33.0]
150
[39.6]
150
[39.6]
150
[39.6]
150
[39.6]
150
[39.6]
Maximum starting
pressure with unloaded
shaft
bar
[psi]
10
[145]
10
[145]
10
[145]
10
[145]
10
[145]
10
[145]
Minimum starting torque at maximum pressure
drop cont.
Nm [lbf·in]
340
[3010]
430
[3810]
530
[4690]
740
[6550]
840
[7430]
950
[8410]
at maximum pressure
drop int.
1)
Nm [lbf·in]
410
[3630]
520
[4600]
630
[5580]
890
[7880]
970
[8590]
1060
[9380]
1) Intermittent operation: the permissible values may occur for max. 10% of every minute.
2) Peak load: the permissible values may occur for max. 1% of every minute.
For maximum permissible combination of flow and pressure, see function diagram for actual motor.
Type Maximum inlet pressure Maximum return pressure
with drain line
OMT, OMTW, OMTS, OMT
FX, OMT FL, OMT FH
bar
[psi]
cont. 210
[3050]
140
[2030]
bar
[psi]
int.
1)
250
[3630]
175
[2540]
bar
[psi]
peak
2)
300
[4350]
210
[3050]
Technical Information OMS, OMT and OMV Orbital Motors
OMT
520L0407 • Rev 0601 • February 2016 49
Brake motors
Type Maximum presssure in
drain line
3)
Holding torque
4)
Brake-release pressure
3)
Maximum pressure in
brake line
OMT FX, OMT FL 5 bar
[70 psi]
1200 Nm
[10620 lbf·in]
12 bar
[170 psi]
30 bar
[440 psi]
OMT FH 5 bar
[70 psi]
1200 Nm
[10620 lbf·in]
30 bar
[440 psi]
280 bar
[4060 psi]
1) Intermittent operation: the permissible values may occur for maximum 10% of every minute.
2) Peak load: The permissible values may occur for maximum 1% of every minute.
3) Brake motors must always have a drain line. The brake-release pressure is the difference between the
pressure in the brake line and the pressure in the drain line.
4) For the supply of motors with holding torques higher than those stated, please contact the Danfoss
sales organization.
For maximum permissible combination of flow and pressure, see function diagram for actual motor.

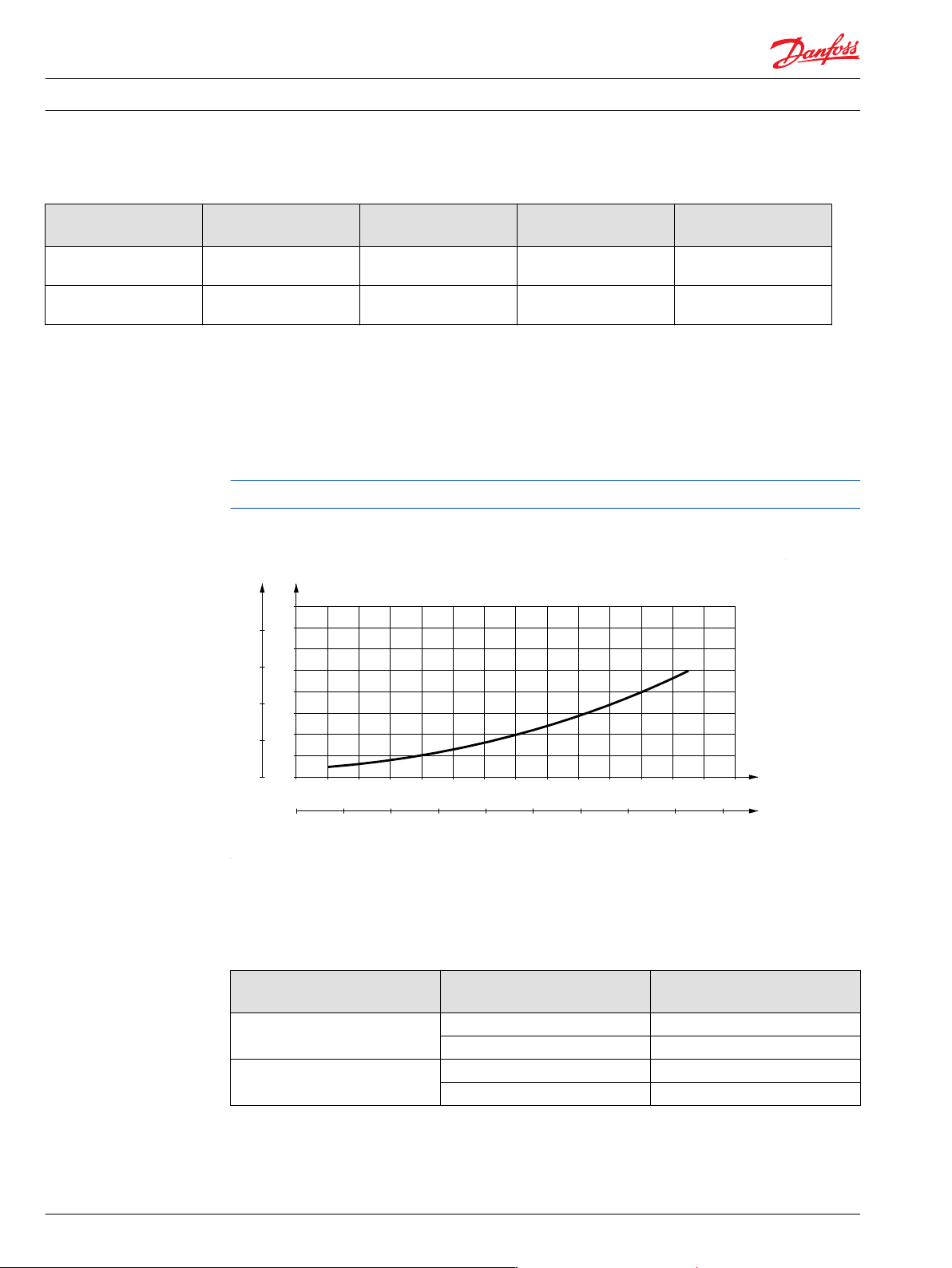

Pressure drop in motor
151-1409.10
0 20 40 60 80 100 120 140 l/min
0 4 8 12 16 20 24 28 32 36 US gal/min
200
150
100
50
0
16
14
12
10
8
6
4
2
0
psi bar
∆ p ∆ p
Q
Q
The curve applies to an unloaded motor shaft and an oil viscosity of 35 mm
2
/s [165 SUS]
Oil flow in drain line
Maximum oil flow in the drain line at a return pressure less than 5-10 bar [75-150 psi]
Pressure drop
bar [psi]
Viscosity
mm
2
/s [SUS]
Oil flow in drain line
l/min [US gal/min]
140
[2030]
20 [100] 2.5 [0.66]
35 [165] 1.5 [0.40]
210
[3050]
20 [100] 5.0 [1.32]
35 [165] 3.0 [0.79]
