CONT ENTS No. DRAW ING NAME DRAWI NG No. No. DRAWI NG NAME DRAWI NG No. 1 1. LOAD WIRING DI A GRAM 1-1 BASE SECTIO N 1-1-1 BLOCK D IAGRAM ........................... ...................... N 610017889AA-E0011-00 1-1-2 AC…
∗
Case 2

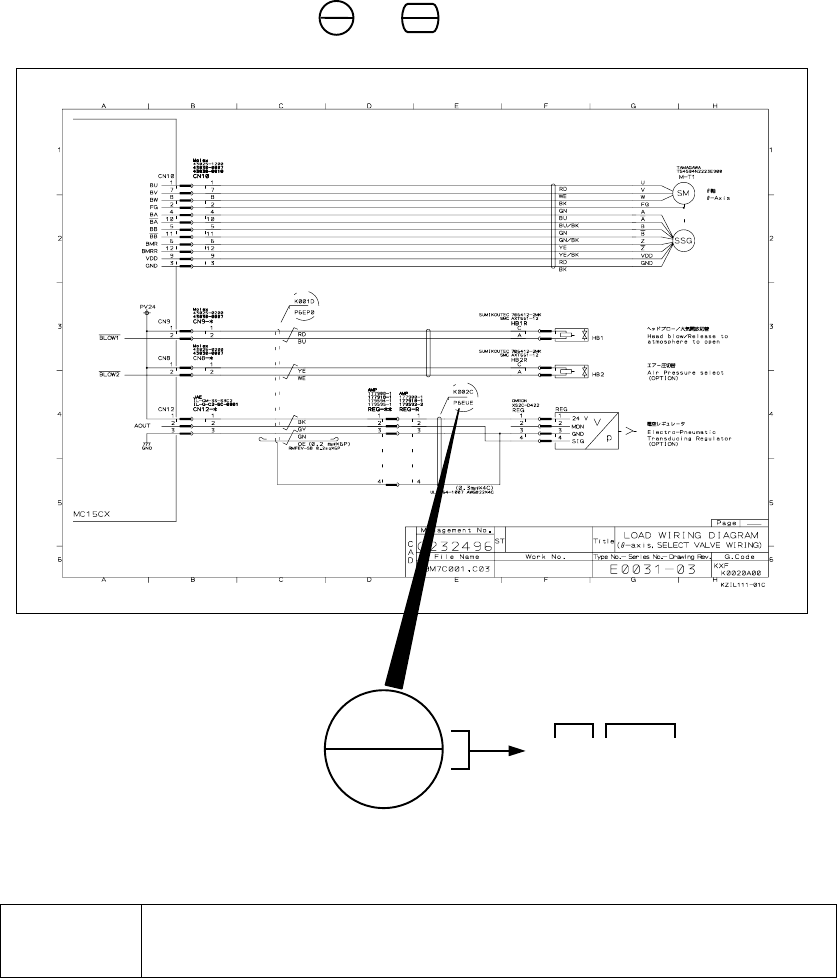

When placing an order for cables, please affix the prefix “KXF” to the
lower number in the mark or on the wiring diagram and let us
know their numbers.
Order number
Example e
KXF +
5-digit lower part number starting with P
(in alphanumerics)
EJM1A-906E
e
KXF P6EP0
K001D
P6EP0
CONTENTS
No. DRAWING NAME DRAWING No. No. DRAWING NAME DRAWING No.
1
1. LOAD WIRING DIAGRAM
1-1 BASE SECTION
1-1-1
BLOCK DIAGRAM................................................. N610017889AA-E0011-00
1-1-2
AC200 V INPUT..................................................... N610017889AA-E0021-01
1-1-3
AC100 V INPUT..................................................... N610017889AA-E0031-02
1-1-4
A STAGE FRONT X-axis ....................................... N610017889AA-E0041-01
1-1-5
A STAGE FRONT Y-axis ....................................... N610017889AA-E0051-00
1-1-6
A STAGE REAR X-axis.......................................... N610017889AA-E0061-01
1-1-7
A STAGE REAR Y-axis.......................................... N610017889AA-E0071-00
1-1-8
VACUUM PUMP WIRING...................................... N610017889AA-E0081-00
1-1-9
NF0FCX to PNF0AF #1 ......................................... N610017889AA-E0091-00
1-1-10
A STAGE WIDTHADJUSTING MOTOR................. N610017889AA-E0101-00
1-1-11
EMG SWITCH WIRING ......................................... N610017889AA-E0111-01
1-1-12
COVER SWITCH WIRING..................................... N610017889AA-E0121-00
1-1-13
Ast COVER SW & SAFETY RELAY WIRING......... N610017889AA-E0131-00
1-1-14
Ast UNDER SUPPORT BLOCK DETECTION SENSOR..................................
.............................................................................. N610017889AA-E0141-00
1-1-15
Ast - MAIN PCB HOLDER VALVE WIRING ........... N610017889AA-E0151-00
1-1-16
Ast - SUB PCB HOLDER VALVE WIRING............. N610017889AA-E0161-00
1-1-17
LINE CAMERA #1 WIRING.................................... N610017889AA-E0171-01
1-1-18
LINE CAMERA #2 WIRING.................................... N610017889AA-E0181-01
1-1-19
PCB RECOGNITION CAMERA #1, #2 WIRING..... N610017889AA-E0191-00
1-1-20
Ast FRONT X-axis ENCODER WIRING................. N610017889AA-E0201-00
1-1-21
Ast PCB RECOGNITION LED LAMP WIRING....... N610017889AA-E0211-02
1-1-22
LINE CAMERA #1 LED LAMP WIRING..................N610017889AA-E0221-00
1-1-23
LINE CAMERA #2 LED LAMP WIRING..................N610017889AA-E0231-00
1-1-24
FRONT TOUCH PANEL WIRING...........................N610017889AA-E0241-01
1-1-25
FRONT SERVO SWITCH WIRING.........................N610017889AA-E0251-00
1-1-26
REAR TOUCH PANEL WIRING .............................N610017889AA-E0261-01
1-1-27
REAR SERVO SWITCH WIRING...........................N610017889AA-E0271-00
1-1-28
FDD WIRING..........................................................N610017889AA-E0281-00
1-1-29
HUB WIRING .........................................................N610017889AA-E0291-01
1-1-30
M/C to MC15CX #1 WIRING ..................................N610017889AA-E0301-01
1-1-31
M/C to MC15CX #2 WIRING ..................................N610017889AA-E0311-01
1-1-32
Ast VALVE REGULATOR WIRING.........................N610017889AA-E0321-01
1-1-33
RING COMMUNICATION WIRING 1......................N610017889AA-E0331-00
1-1-34
CONVEYOR WIRING 1..........................................N610017889AA-E0341-00
1-1-35
CONVEYOR WIRING 2..........................................N610017889AA-E0351-00
1-1-36
POWER DC12 V, 24 V WIRING 1 ..........................N610017889AA-E0361-02
1-1-37
POWER DC12 V, 24 V WIRING 2 ..........................N610017889AA-E0371-00
1-1-38
CN00 WIRING........................................................N610017889AA-E0381-01
1-1-39
CN01 WIRING........................................................N610017889AA-E0391-01
1-1-40
MULTI FUNCTION HEAD A WIRING .....................N610017889AA-E0401-01
1-1-41
OUTPUT for FAN MOTOR .....................................N610017889AA-E0411-00
1-2 FEEDER SECTION
1-2-1
BLOCK DIAGRAM..................................................N610017892AA-E0011-00
1-2-2
Ast FRONT CART I/F WIRING ...............................N610017892AA-E0021-00
1-2-3
NF2ECX #1 WIRING 1 ...........................................N610017892AA-E0031-01
CONTENTS
No. DRAWING NAME DRAWING No. No. DRAWING NAME DRAWING No.
2
1-2-4
NF2ECX #1 WIRING 2........................................... N610017892AA-E0041-01
1-2-5
NF2ECX #1 WIRING 3........................................... N610017892AA-E0051-00
1-2-6
NF2ECX #1 WIRING 4........................................... N610017892AA-E0061-00
1-2-7
NF2ECX #1 WIRING 5........................................... N610017892AA-E0071-00
1-2-8
Ast REAR CART I/F WIRING................................. N610017892AA-E0081-00
1-2-9
NF2ECX #2 WIRING 1........................................... N610017892AA-E0091-01
1-2-10
NF2ECX #2 WIRING 2........................................... N610017892AA-E0101-03
1-2-11
NF2ECX #2 WIRING 3........................................... N610017892AA-E0111-00
1-2-12
NF2ECX #2 WIRING 4........................................... N610017892AA-E0121-00
1-2-13
NF2ECX #2 WIRING 5........................................... N610017892AA-E0131-00
1-3 CONVEYOR WIRING
1-3-1
BLOCK DIAGRAM................................................. N610017893AA-E0011-00
1-3-2
PNF0AF #1
∼
EL1ACA #1A WIRING ..................... N610017893AA-E0021-00
1-3-3
EL1ACA #1A
∼
EL1ACA #5A WIRING ................... N610017893AA-E0031-00
1-3-4
PNF0AF #1
∼
EL1ACA #2A WIRING ..................... N610017893AA-E0041-00
1-3-5
EL1ACA #2A
∼
EL1ACA #6A WIRING ................... N610017893AA-E0051-00
1-3-6
EL1ACA #1A, #2A WIRING ................................... N610017893AA-E0061-00
1-3-7
EL1ACA #5A, #6A WIRING ................................... N610017893AA-E0071-00
2. CONTROL BOX DIAGRAM
2-1 CPU BOX
2-1-1
BLOCK DAIAGRAM............................................... N610012399AA-C0013-01
2-1-2
POWER IN/OUT, AC100 V, DC5 V, 12 V, 24 V...... N610012399AA-C0023-02
2-1-3
NFV2CX to 3401P3 ............................................... N610012399AA-C0033-00
2-2 POWER UNIT
2-2-1
BLOCK DAIAGRAM ...............................................N610009033AA-C0014-00
2-2-2
AC200 V INPUT .....................................................N610009033AA-C0024-02
2-2-3
OUTPUT for VACUUM PUMP ................................N610009033AA-C0034-01
2-2-4
OUTPUT for SARVO DRIVER 1-4..........................N610009033AA-C0044-01
2-2-5
PNF0AF INPUT/OUTPUT ......................................N610009033AA-C0054-00
2-2-6
TERMINAL BLOCK WIRING ..................................N610009033AA-C0064-02
3. JUMPER CONFIGURATION DIAGRAM
3-1 CM401-L (SET UP DIAGRAM)
3-1-1
SCV1ER................................................................ N610012076AA-G0012-00
3-1-2
ELV4EA................................................................. N610012342AA-G0013-00
3-1-3
ELV3EA................................................................................E000T-G0010-00
3-1-4
SCV4EA............................................................................... E0008-G0012-00
3-1-5
MR-MC01 (3401P3) ............................................................ K00AP-G0012-00
3-1-6
NFV2CG................................................................ N610050355AA-G0013-00
3-1-7
VMEJ1 BUS BOARD............................................. N510036830AA-G0010-00
3-1-8
NF2ECA...............................................................................E00HJ-G0020-00
3-1-9
PNF0AF ................................................................ N610012675AA-G0020-00
3-1-10
EL1ACA ............................................................................... E000J-G0012-00
3-1-11
LED CONTOROLLER BOARD.............................. N610080208AA-G0012-02
3-1-12
NF3ACB................................................................ N610012673AA-G0010-00
3-1-13
NF0CCA............................................................................... E0002-G0012-00
3-1-14
NF28CA .............................................................................. E000D-G0012-00
