MACHINE PC
REAR PANEL CONNECTOR FUNCTIONS
Chapter Issue 1 Sep 02 Technical Reference Manual 5.15
REAR PANEL CONNECTOR FUNCTIONS

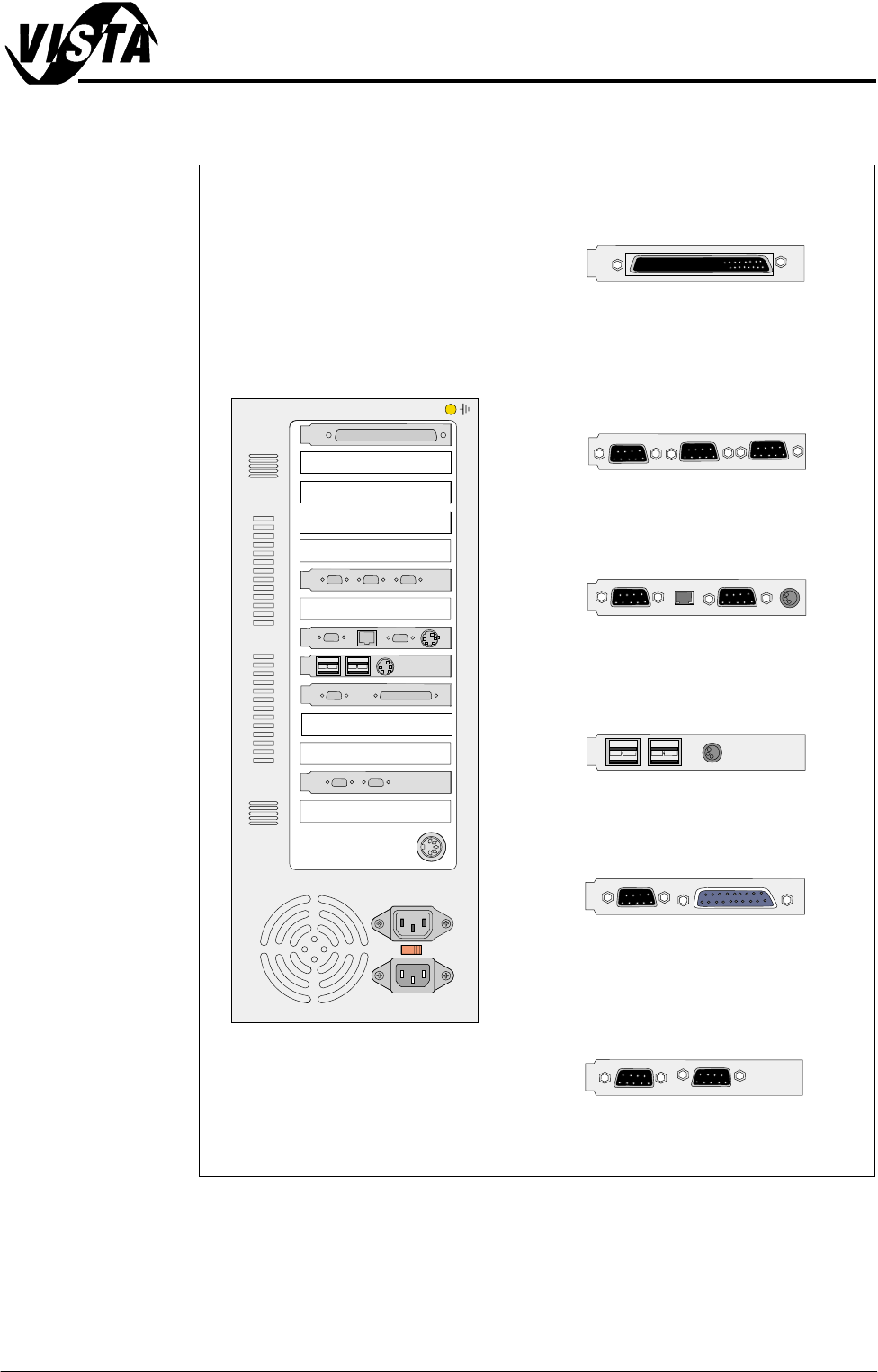

Figure 5-7 PC Enclosure Rear Panel Connectors
PC Enclosure
Rear Panel
230V
ISA 2
ISA 1
PCI 1
ISA 3
ISA 4
ISA 5
ISA 6
ISA 7
ISA 8
ISA 9
ISA 10
PCI 2
PCI 3
PCI 4
ISA 10
3SK12
NextMove
ISA 10
3SK10
Camera Lighting
COM 2
3SK40
Not Used
3PL11
Camera Lighting
Supply & Trigger
ISA 5
3SK04
Keyboard
3SK05
SVGA
3SK02
LAN
3PL03
Touchscreen
COM1
ISA 3
3SK06
Printer
3PL39
Not Used
ISA 1
3SK08
Camera 0
3SK09
Camera 1
PCI 3
ISA 5
ISA 3
ISA 2
ISA 1
PCI 3
3SK07
Mouse
ISA 2
3SK37, 36
Not Used
3SK35, 34
Not Used
MACHINE PC
REAR PANEL CONNECTOR FUNCTIONS
5.16 Technical Reference Manual Chapter Issue 1 Sep 02
NextMove ISA 10
3SK12 Yamaichi 100 Way Connector
Connector 3SK12 Left Row Connector 3SK12 Right Row
PIN 1 ANALOG GND PIN 1 ADC2
PIN 2 ADC1 PIN 2 ADC0
PIN 3 ADC3 PIN 3 ADC6
PIN 4 ADC5 PIN 4 ADC4
PIN 5 ADC7 PIN 5 DAC2
PIN 6 DAC1 PIN 6 DAC0
PIN 7 DAC3 PIN 7 DOP1
PIN 8 DOP0 PIN 8 ANALOG GND
PIN 9 DOP2 PIN 9 DOP5
PIN10 DOP4 PIN10DOP3
PIN 11 DOP6 PIN 11 DOP9
PIN 12 DOP8 PIN 12 DOP7
PIN 13 DOP10 PIN 13 USR GND
PIN 14 USER V+ PIN 14 DOP11
PIN 15 CAN WIRE+ PIN 15 ENCO.1
PIN 16 !EXT.INT.U PIN 16 CAN WIRE-
PIN 17 ENCO!! PIN 17 ENCO.A
PIN 18 ENCO!B PIN 18 ENCO.B
PIN19 ENCO!A PIN 19 ENC1.B
PIN 20 ENC1!! PIN 20 ENC1.1
PIN 21 ENC1 !B PIN 21 ENC2.1
PIN 22 ENC1 !A PIN 22 ENC1.A
PIN 23 ENC2!! PIN 23 ENC2.A
PIN 24 ENC2 !B PIN 24 ENC2.B
PIN 25 ENC2 !A PIN 25 ENC3.B
PIN 26 ENC3!! PIN 26 ENC3.1
PIN 27 ENC3 !B PIN 27 USR V+
PIN 28 ENC3 !A PIN 28 ENC3.A
PIN 29 PULSE 0 PIN 29 PULSE 1
PIN 30 BOOST 0 PIN 30 DIR 0
PIN 31 DIR1 PIN 31 DIR 2
PIN 32 PULSE 2 PIN 32 BOOST 0
PIN 33 BOOST 2 PIN BOOST 3
PIN 34 DIR 3 PIN 34 PULSE 3
PIN 35 USER GND PIN 35 DIG.IN.2
PIN 36 DIG.IN.1 PIN 36 DIG.IN.0
PIN 37 DIG.IN.3 PIN 37 DIG.IN.6
PIN 38 DIG.IN.5 PIN 38 DIG.IN.4
MACHINE PC
REAR PANEL CONNECTOR FUNCTIONS
Chapter Issue 1 Sep 02 Technical Reference Manual 5.17
PCA-6180 ISA 2/3
Video Connector 3SK05 (15 Way Condensed D Type)
RS232 Touchscreen COM 1 3PL03 (9 Way D Type)
Keyboard Port 3SK04 (6 Way Mini-DIN)
PIN 39 DIG.IN.7 PIN 39 DIG.IN.10
PIN 40 DIG.IN.9 PIN 40 DIG.IN.8
PIN 41 DIG.IN.11 PIN 41 DIG.IN.14
PIN 42 DIG.IN.13 PIN 42 DIG.IN.12
PIN 43 DIG.IN.15 PIN 43 DIG.IN.18
PIN 44 DIG.IN.17 PIN 44 DIG.IN.16
PIN 45 DIG.IN.19 PIN 45 DIG.IN.22
PIN 46 DIG.IN.21 PIN 46 DIG.IN.20
PIN 47 DIG.IN.23 PIN 47 GND
PIN 48 +5V O/P PIN 48 GND
PIN 49 +5V O/P PIN 49 RELAY NO
PIN 50 RELAY N/C PIN 50 RELAY COM
Pin No. Signal Pin No. Signal
1 Analog Red 9 Not Used
2 Analog Green 10 0 Volts (GND)
3 Analog Blue 11 Not Used
4 Not Used 12 Not Used
5 0 Volts (GND) 13 Horizontal Sync
6 0 Volts (GND) 14 Vertical Sync
7 0 Volts (GND) 15 Not Used
8 0 Volts (GND)
Pin No. Signal Pin No. Signal
1 Data Carrier Detect 6 Data Set Ready
2 Receive Data 7 Ready To Send
3 Transmit Data 8 Clear To Send
4 Data Terminal Ready 9 Ring Indicator or Power
5 Ground
Pin No. Signal Pin No. Signal
1 Keyboard Data 4 +5Volts (Fused)
2 Not Used 5 Keyboard Clock
3 Ground 6 Not Used
Connector 3SK12 Left Row Connector 3SK12 Right Row
