MACHINE PC PC ENCLOSURE Chapter Issue 1 Sep 02 Technical Reference Manual 5.5 PC ENCLOSURE Single Board Computer (SBC) The Single Board Compute r (SBC) fits in the PC backplane at sl ot ISA 3. This card provi des the mas…
MACHINE PC
ELECTRICAL SCHEMATIC
5.4 Technical Reference Manual Chapter Issue 1 Sep 02
ELECTRICAL SCHEMATIC

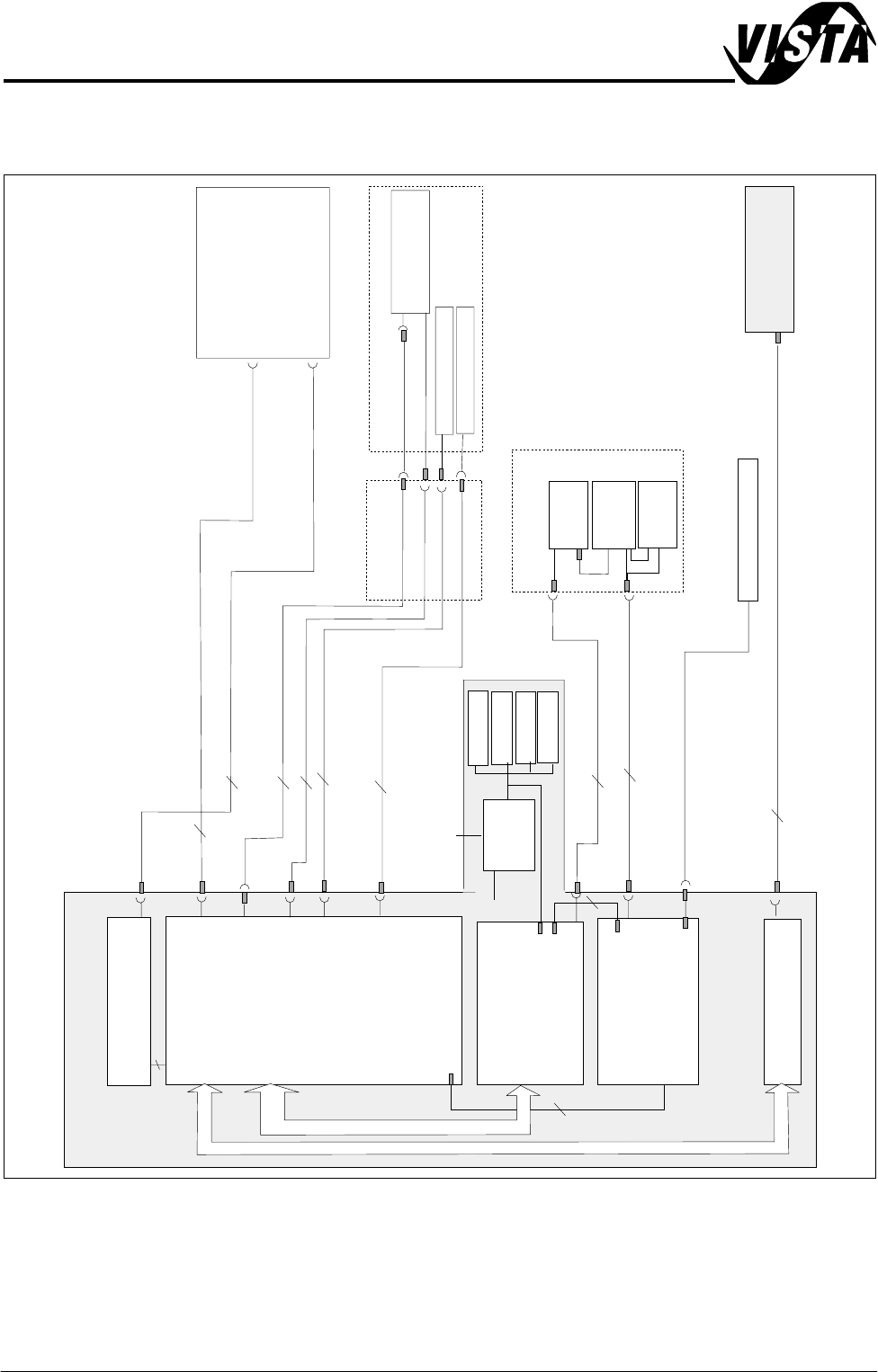

Figure 5-3 PC External Connections
Control
Enclosure
Loom 140544
Loom 181204
Loom 155638
Loom 155640
Loom 155642
Loom 155630
Vision PC Adaptor
ISA 5
ISA10
PC Enclosure
Drg 160001
SBC
ISA 3
Loom 155616
Loom 155370
24V Strobe Trigger
PL2 Power and Trigger
Loom 125374
Loom 155688
Rear Service Panel
Monitor Panel
Mouse options
Keyboard Options
MMI
Display Monitor
CN8 LAN
4
4
4
4
8
100
10
10
15
4
25
25
RJ45 Ethernet
LAN Port
3SK02
CN4
6SK13
6SK09
14PL02
14SK04
14SK05
14SK06
3SK05
3SK04
3SK07
3SK08
10SK17
10SK13
3SK10
3PL11
3SK12
CN10
SK1
PL3
M19PL16
3PL03
Host Comms
Host Comms
Parallel Printer
CN7 SVGA
CN11 Keyboard
CN33 PS2/Mouse
SK1 Camera Lighting
Control (Com2)
CN9 COM 1 RS232
COM 2 RS232
Camera Module
Camera
Upper
Lighting
Lower
Lighting
NextMove Card
PCI Bus
PSU
HDD
FDD
FAN
CD Drive
Mains In
Vision Card
PCI 3
Camera 0
J1 Power & Trigger
J2 Camera Supply
ISA Bus
ISA 1
Parallel Printer Exp“
3SK06
Parallel Printer
MACHINE PC
PC ENCLOSURE
Chapter Issue 1 Sep 02 Technical Reference Manual 5.5
PC ENCLOSURE
Single Board
Computer (SBC)
The Single Board Computer (SBC) fits in the PC backplane at slot ISA 3. This
card provides the master control of all machine functions, it houses the Central
Processing Unit (CPU) which is an Intel FC-PGA Pentium III 1GHz device.
The main features of this card are:
• VGA Video Output
• Ethernet 10/100Base-T output via an RJ-45 connector to LAN Host
Comms
• EIDE HDD fixed disk controller (CD ROM, HDD)
• Floppy Disk Drive Controller
• PCI / ISA Bus Interface (PICMG Compliant)
• Bi-directional Parallel Printer Port
• PS/2 Mouse and Keyboard Ports
• RS232 Interface (COM2) - Camera Lighting
• CMOS RAM with Lithium battery backup
• Serial Comms Port (COM 1) to Touchscreen
MACHINE PC
PC ENCLOSURE
5.6 Technical Reference Manual Chapter Issue 1 Sep 02
Figure 5-4 Processor Board
