1 PREVENTIVE MAINTENANCE
1.5 MONTHLY MAINTENANCE
56 MAINTENANCE MANUAL MICRON 11/2017
1.5.14.4 Monthly Hardware Check
Machine Safety Tick
Check operation of the cover interlock.
Check operation of the emergency stop button.
Examine the condition of the mains input lead.
Check all earth leads and bonding points are connected.
Toggle all beacon lights.
Pneumatics Tick
Check air pressure switch is set to 3 bar.
Check the air inlet regulator is set to 5 bar.
Check pipes for air leaks.
Check and empty the air line water trap.
Check and empty the air line water trap on the Grid-lok Control Unit.
Rising Table Tick
Inspect the condition of the rising table drive belt. See 2.1 "Rising Table Style 1" [}57]
or 2.2 "Rising Table Style 2" [}58].
Check for correct operation of the table brake.
Cycle the table, ensuring smooth running, no looms fouled.
Check the home setting.
Check the vision height of the table.
Check the print height of the table.
Vacuum Filtration Unit Tick
VF35i, replace the pre-filter and the carbon filter. See 3.1.2 "VF35i Vacuum Filtration
Unit" [}76].
VF30, replace the pre-filter and the carbon filter. See 3.1.3 "VF30 Vacuum Filtration
Unit" [}80]
VF25, replace the pre-filter and the carbon filter. See 3.1.4 "VF25 Vacuum Filtration
Unit" [}85].
VF10, replace the white HDPE foam filter. See 3.1.5 "VF10 Vacuum Filtration
Unit" [}88].
Summary/Remarks
.
.
.
.
.
.
If remarks added here, enter 'Yes' in the Summary/Remarks column of 1.1.1 "Monthly Mainten-
ance Completed" [}7].
2 CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
2.1 Rising Table Style 1
MAINTENANCE MANUAL MICRON 11/2017 57
2
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
2.1 RISING TABLE STYLE 1
2
1
3
4
5

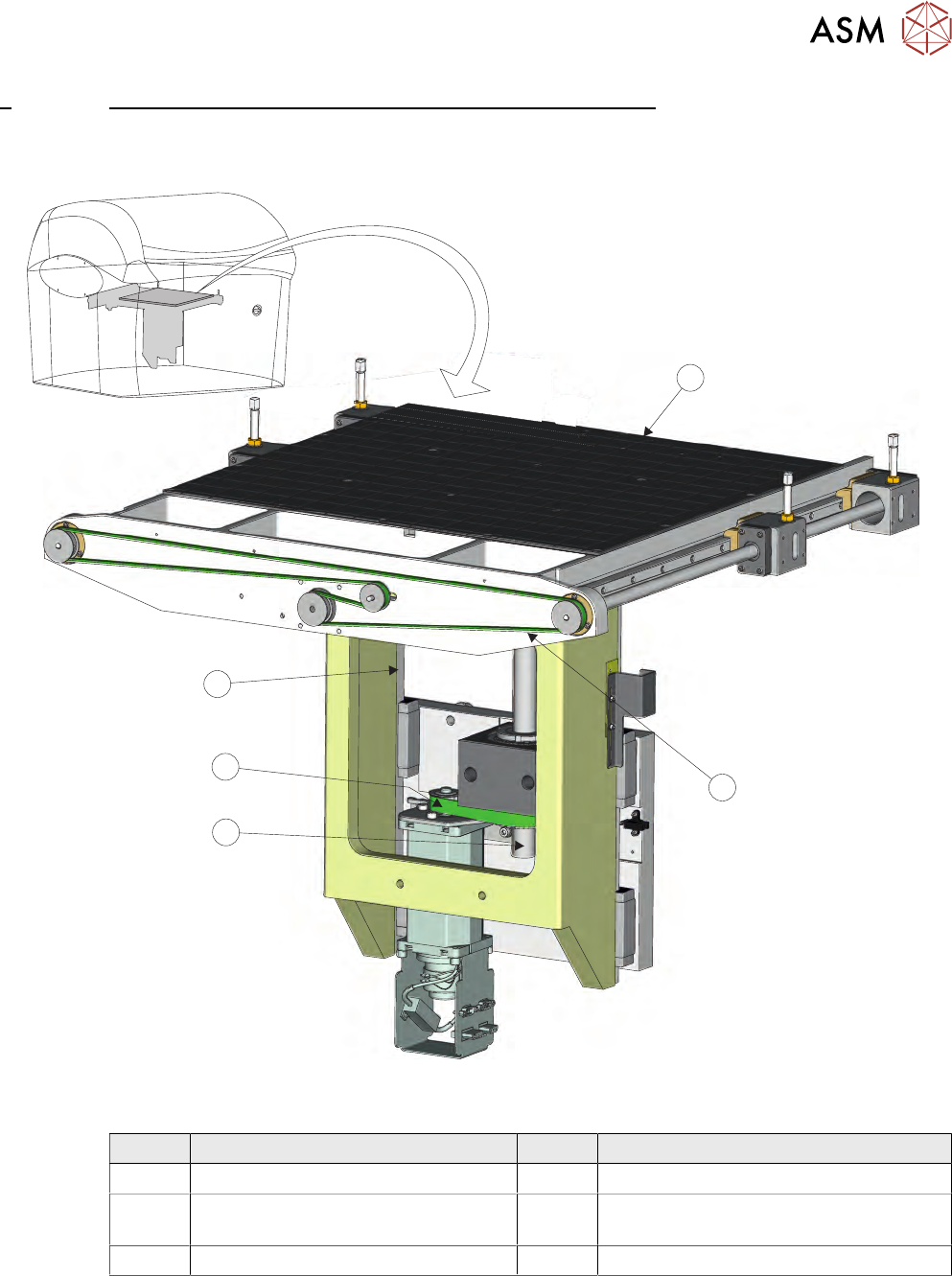

Fig.1: View on Rear of Rising Table
Item Description Item Description
1 Manual Tooling Plate 4 Rising Table Drive Belt
2 Transport Rail Drive Belt 5 Vertical Linear Bearing Guide (in 2 posi-
tions)
3 Rising Table Ballscrew
2 CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
2.2 Rising Table Style 2
58 MAINTENANCE MANUAL MICRON 11/2017
2.2 RISING TABLE STYLE 2
1
2
3
4

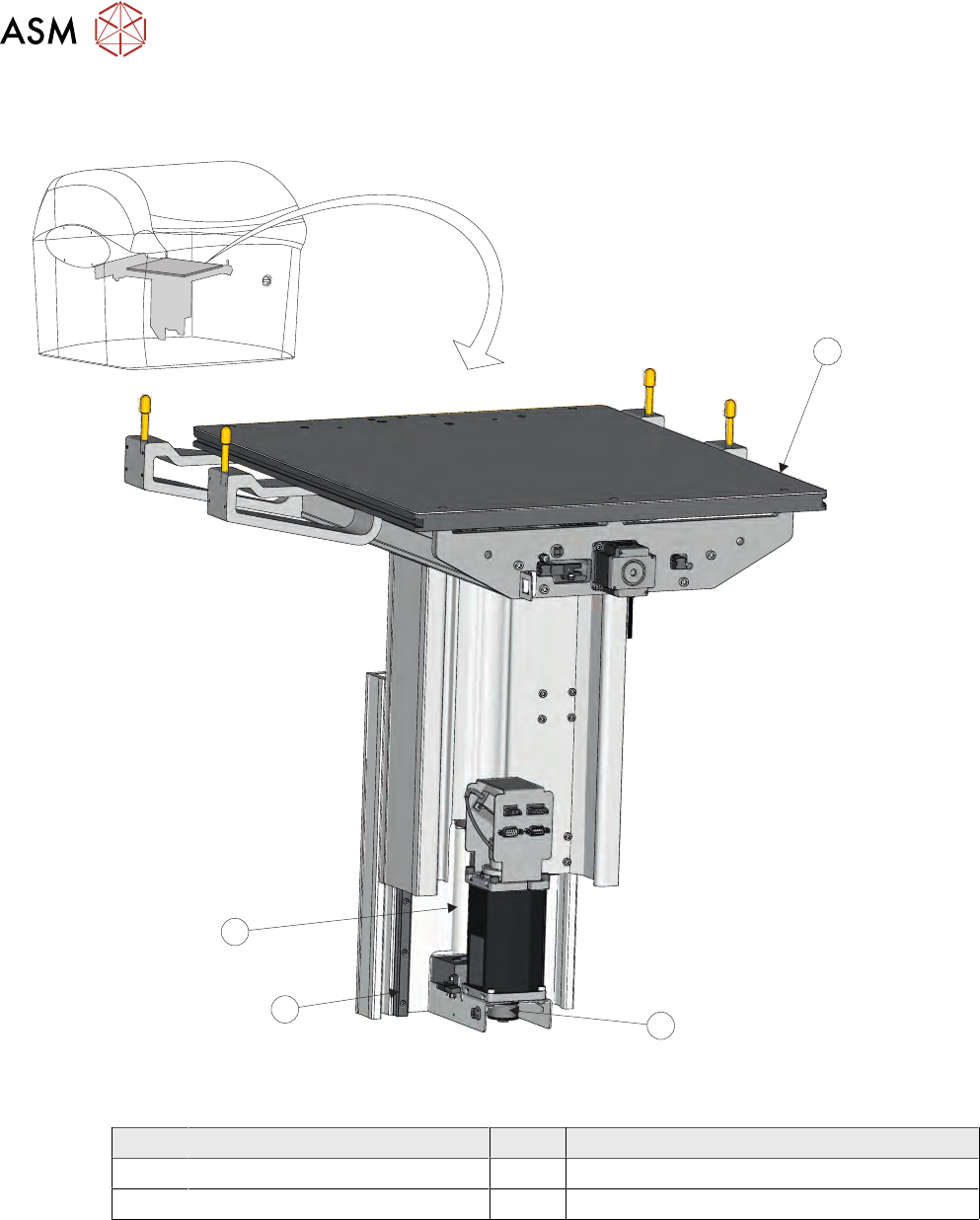

Fig.2: View on Rear of Rising Table
Item Description Item Description
1 Manual Tooling Plate 3 Vertical Linear Bearing Guide (in 2 positions)
2 Rising Table Drive Belt 4 Rising Table Ballscrew
