2 CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS 2.10 Adjustable Stencil Mount (ASM) 66 MAINTENANCE MANUAL MICRON 11/2017 2.10 ADJUSTABLE STENCIL MOUNT (ASM) 1 8 2 3 4 5 6 7 Fig.10: Adjustable Stencil Mount (ASM) Item D…
2 CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
2.9 Machined C Chase
MAINTENANCE MANUAL MICRON 11/2017 65
2.9 MACHINED C CHASE
1
2
3

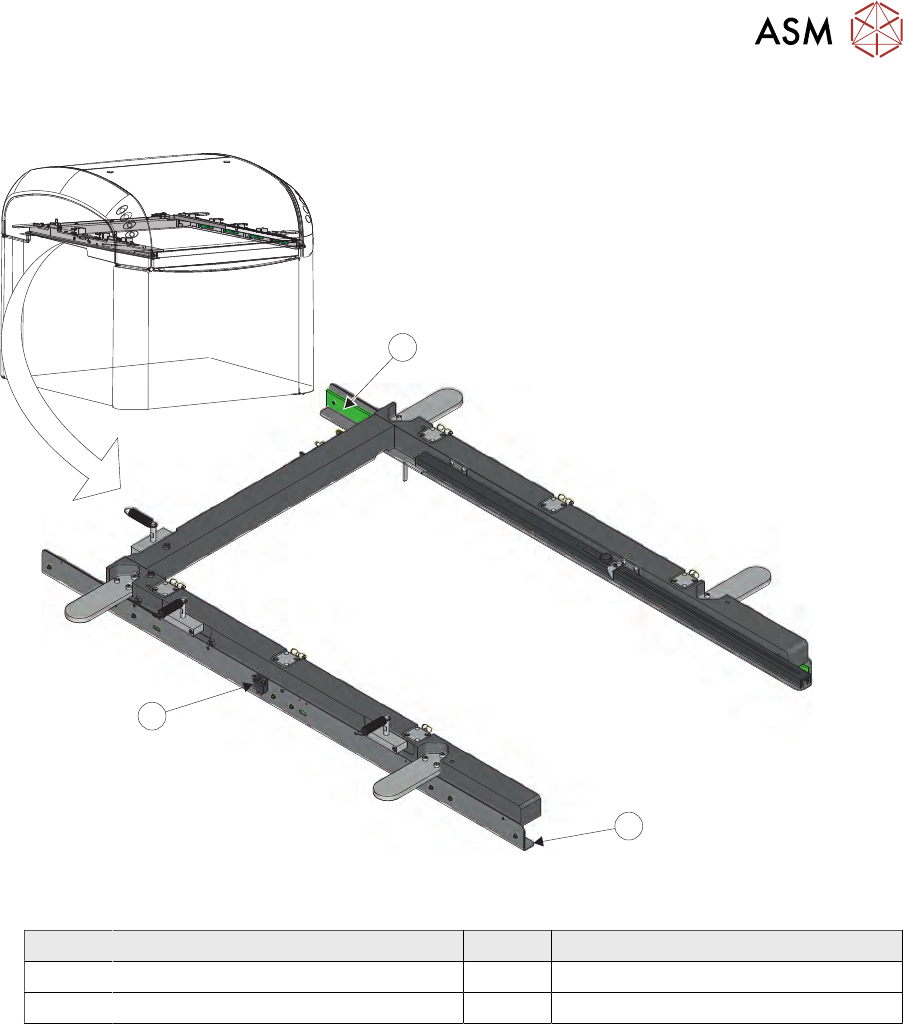

Fig.9: Top View of Chase
Item Description Item Description
1 Stencil Guide Strip 3 Stencil at Centre Sensor
2 Stencil Support Plate
2 CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
2.10 Adjustable Stencil Mount (ASM)
66 MAINTENANCE MANUAL MICRON 11/2017
2.10 ADJUSTABLE STENCIL MOUNT (ASM)
1
8
2
3
4
5
6
7

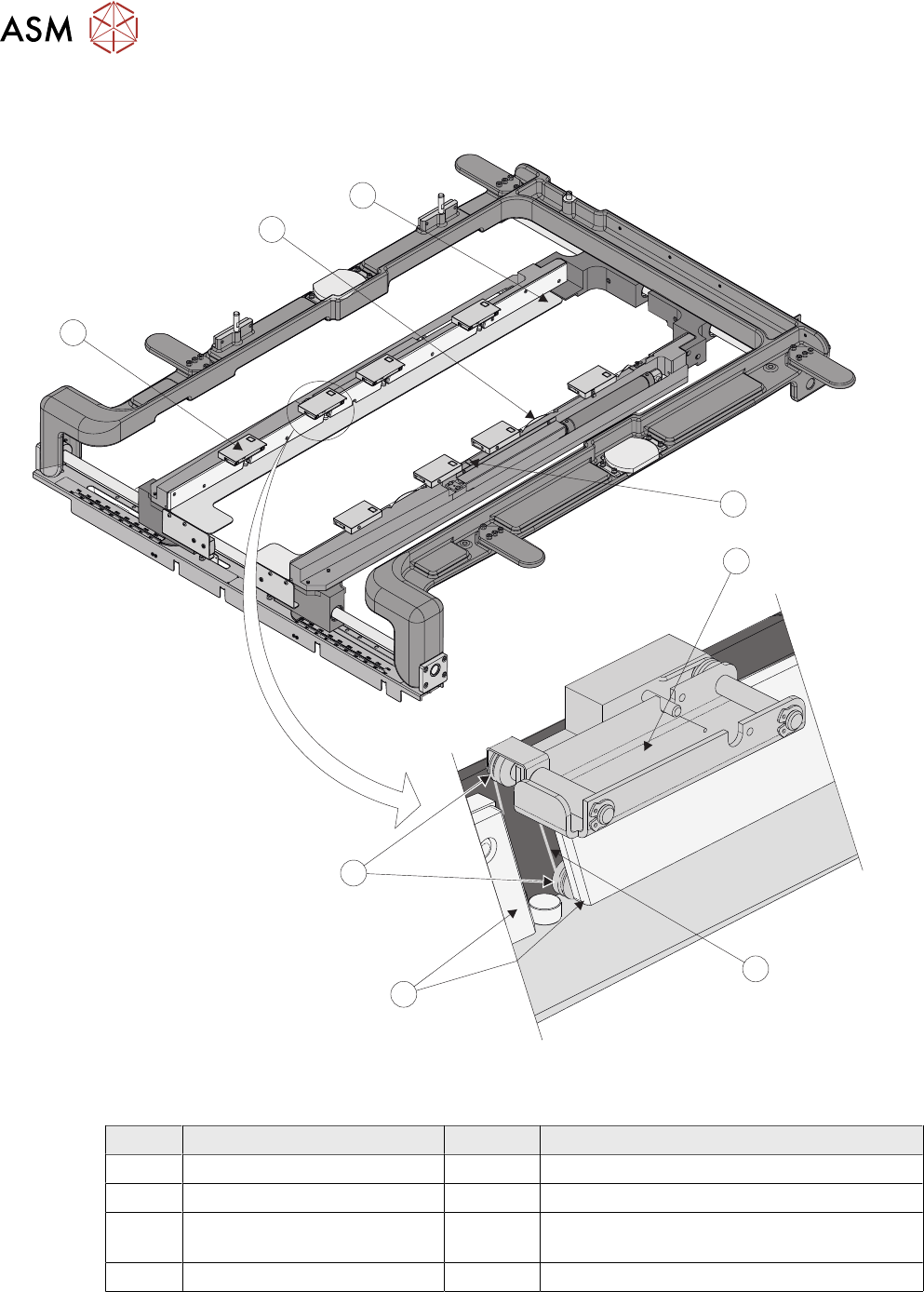

Fig.10: Adjustable Stencil Mount (ASM)
Item Description Item Description
1 Stencil at Centre Sensor 5 Pulleys (in 3 positions)
2 Flap Clamp (cover removed) 6 Flap Assembly (in 8 positions)
3 Flap Clamp Cord (in 2 posi-
tion)
7 Stencil Location Leaf Spring (in 3 positions)
4 Stencil Guide Strips 8 Stencil Support Plate (in 2 positions)
2 CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
2.11 Adjustable Width Stencil Mount (AWSM)
MAINTENANCE MANUAL MICRON 11/2017 67
2.11 ADJUSTABLE WIDTH STENCIL MOUNT (AWSM)
1
2
3
4
5

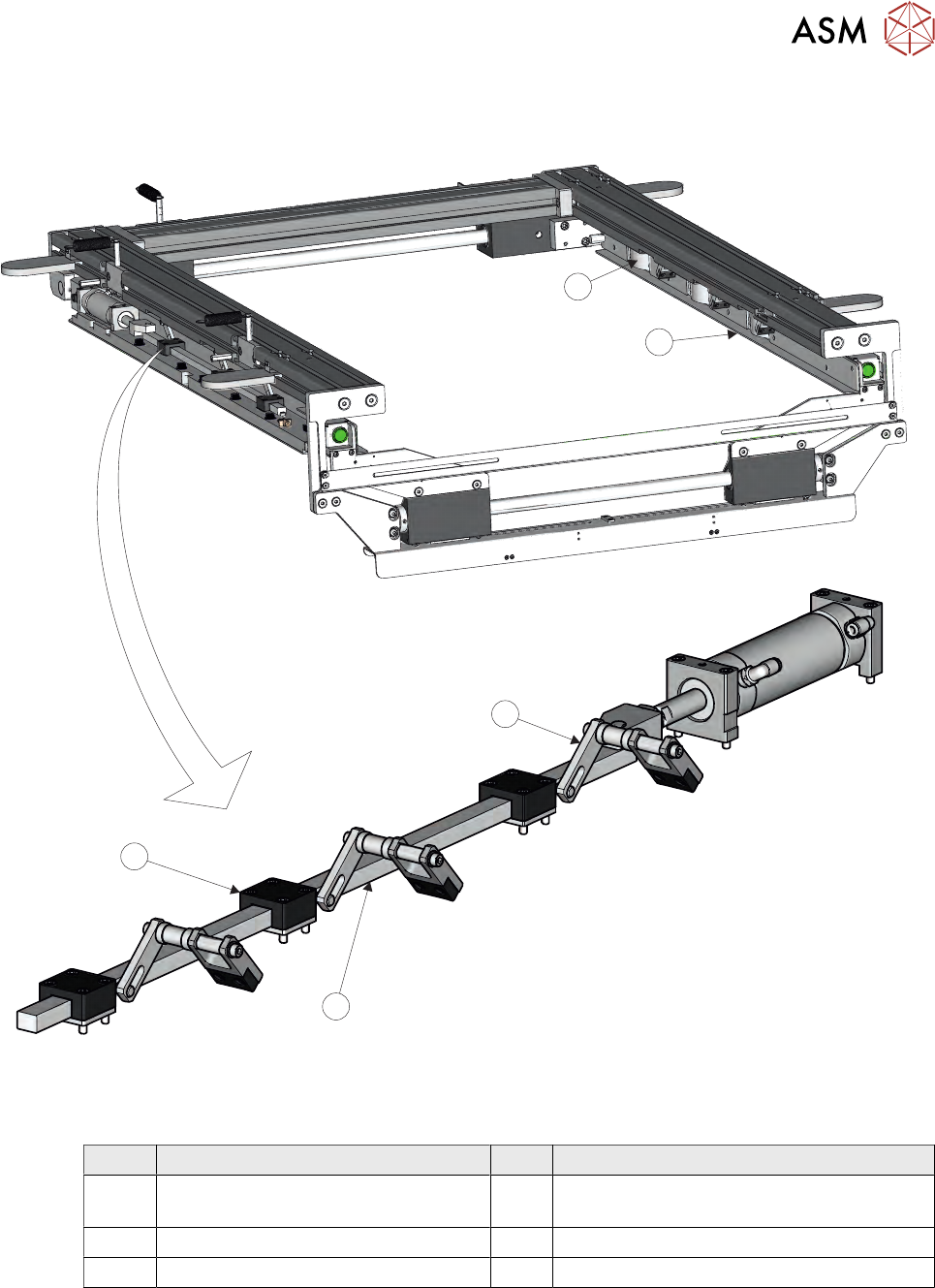

Fig.11: Top View of AWSM
Item Description Item Description
1 Stencil Guide Leaf Spring (in 3 posi-
tions)
4 Stencil Clamp Lever Actuator Bar (in 2 po-
sitions)
2 Stencil Support Plate (in 2 positions) 5 Stencil Clamp Lever Actuator Bar Guide
3 Stencil Clamp Lever (in 6 positions)
