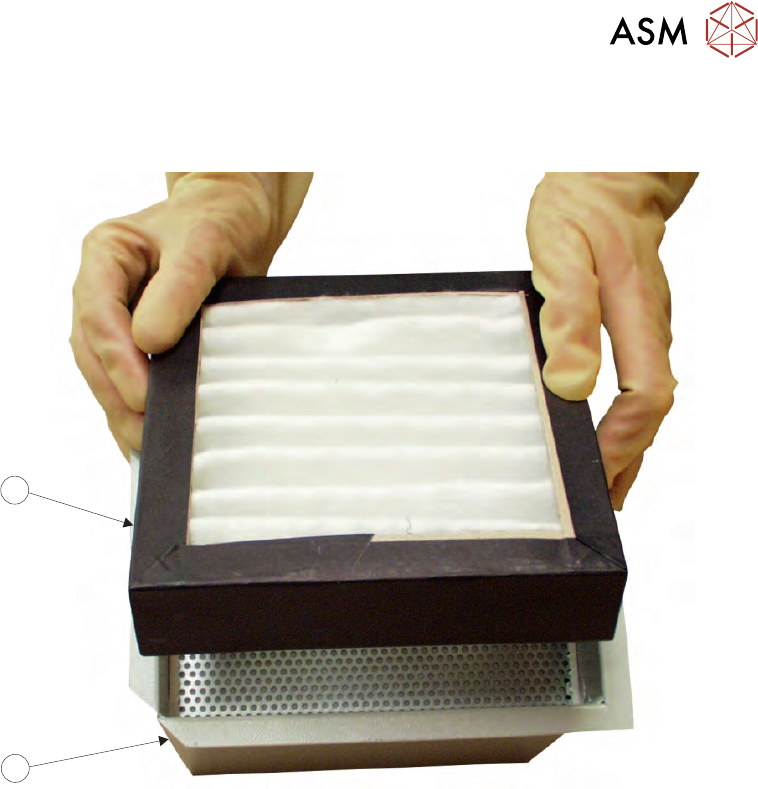

12. To separate the pre-filter unit (11) from the carbon filter unit (12), pull the filter upwards using
the pre-filter frame.
11
12
13. Replace the carbon\pre-filter as required and refit the pre-filter into the carbon filter unit.
14. Refit the air duct to the carbon filter unit.
15. Refit the carbon filter unit to the vacuum filtration unit.
16. Secure the carbon filter unit using the filter retaining clip.
17. Slide the vacuum filtration unit back into the printer approximately halfway and refit the va-
cuum tube.
18. Locate the vacuum filtration unit over its four securing holes and secure to the base of the
printer using four securing screws.
19. Reconnect the two earth leads and the mains connector.
20. Refit the panel removed in Step 2.
3 VACUUM FILTRATION UNITS
3.1 FILTER REPLACEMENT
88 MAINTENANCE MANUAL MICRON 11/2017
3.1.5 VF10 Vacuum Filtration Unit
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
1
2
3
4
Item Description Item Description
1 Printer Frame 3 Filter Case
2 Vacuum Tooling (If fitted) 2 VF10 Vacuum Filtration Unit
3 VACUUM FILTRATION UNITS
3.1 FILTER REPLACEMENT
MAINTENANCE MANUAL MICRON 11/2017 89
To replace the filter in the vacuum filtration unit, carry out the following:
NOTE
Numbers in brackets e.g. (1), refer to the numbers in the graphics in the procedure.
1. Ensure the printer is switched OFF.
2. Remove the printer front panel.
3. Unscrew the filter case (6) from the vacuum filtration unit.
4. Replace the white HDPE foam filter (5) and refit the filter case (6) to the vacuum filtration unit.
5
6
5. Refit the panel removed in Step 2.
