4.1.2 Checking conditions
Nozzle Health Check is performed based on the machine setting.

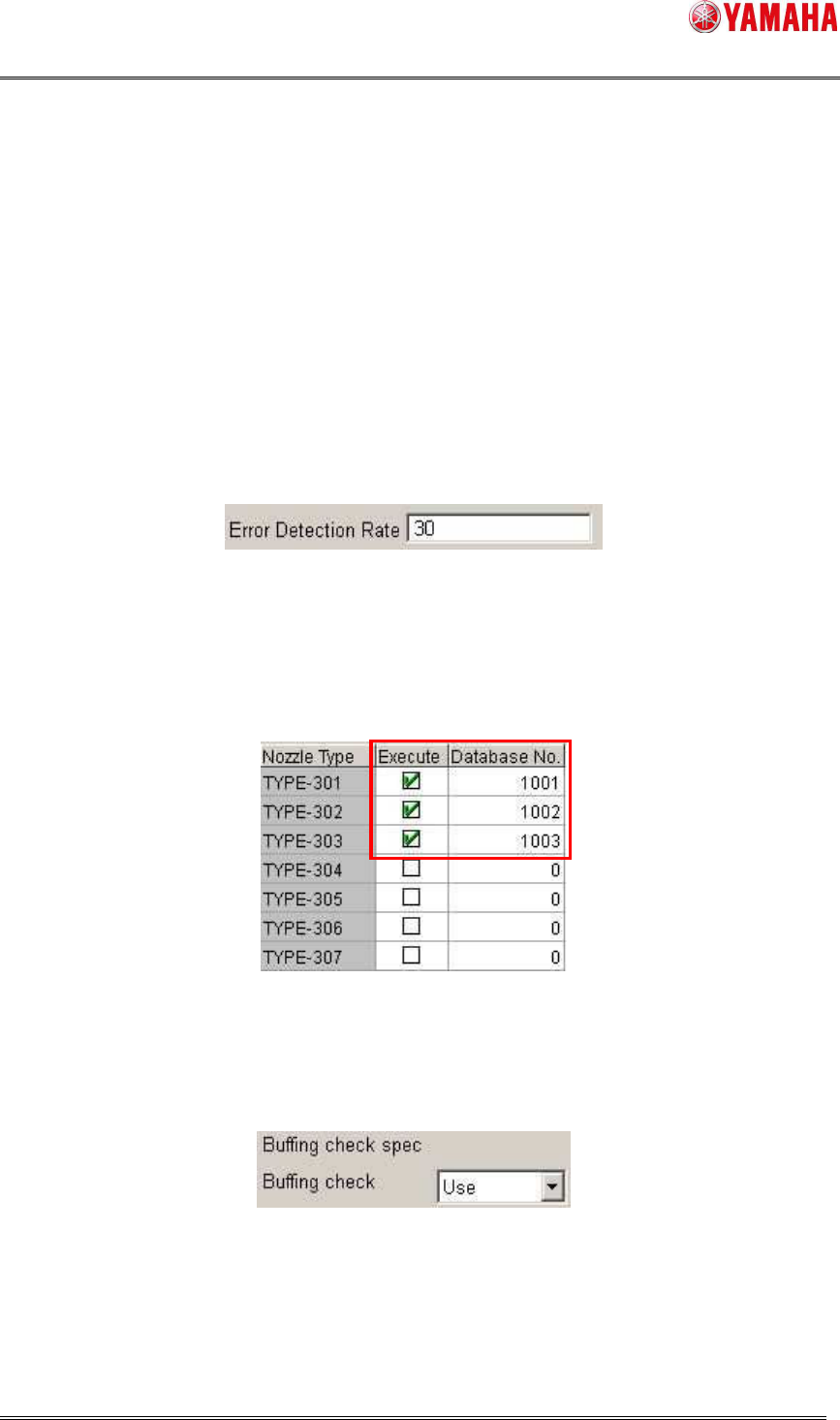

1) Vacuum Check
Error rate of vacuum check is calculated based on the setting of [Setting] - [Specification
Information] - [Schedule Specification] - [Vacuum Check]. In the sample below, if error rate of
vacuum check is over 30%, it is judged as “NG”. If smaller than that, it is judged as “OK”.
Error Detection Rate (%) = (Meaured – Minimum) / (Maximum – Minimum) x 100
※Minimum = Pick Level, Maximum = Mount Level
2) Nozzle Tip Dirt Check
Nozzle Tip Dirt Check is performed for a nozzle with [Setting] - [Specification Information] -
[Schedule Specification] - [Nozzle Tip Dirt Check] set to “Execute”.
3) Buffing Check
To execute Buffing Check, set [Setting] – [Specification Information] - [Buffing check spec] -
[Buffing check] to “Use”.
※ Nozzle Buffing Check works under the following conditions.
・On the following machines.
- YS12 series mounter
- YG12 series mounter
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD
MDOC-SOFT50394
9/13
- YS24 series mounter
- YS24X series mounter
・ [Setting] - [Machine Information] - [Installation] - [Cleaning Blow Unit] is set to “Exist”.
・ Head doesn’t have shaft buffing equipment.

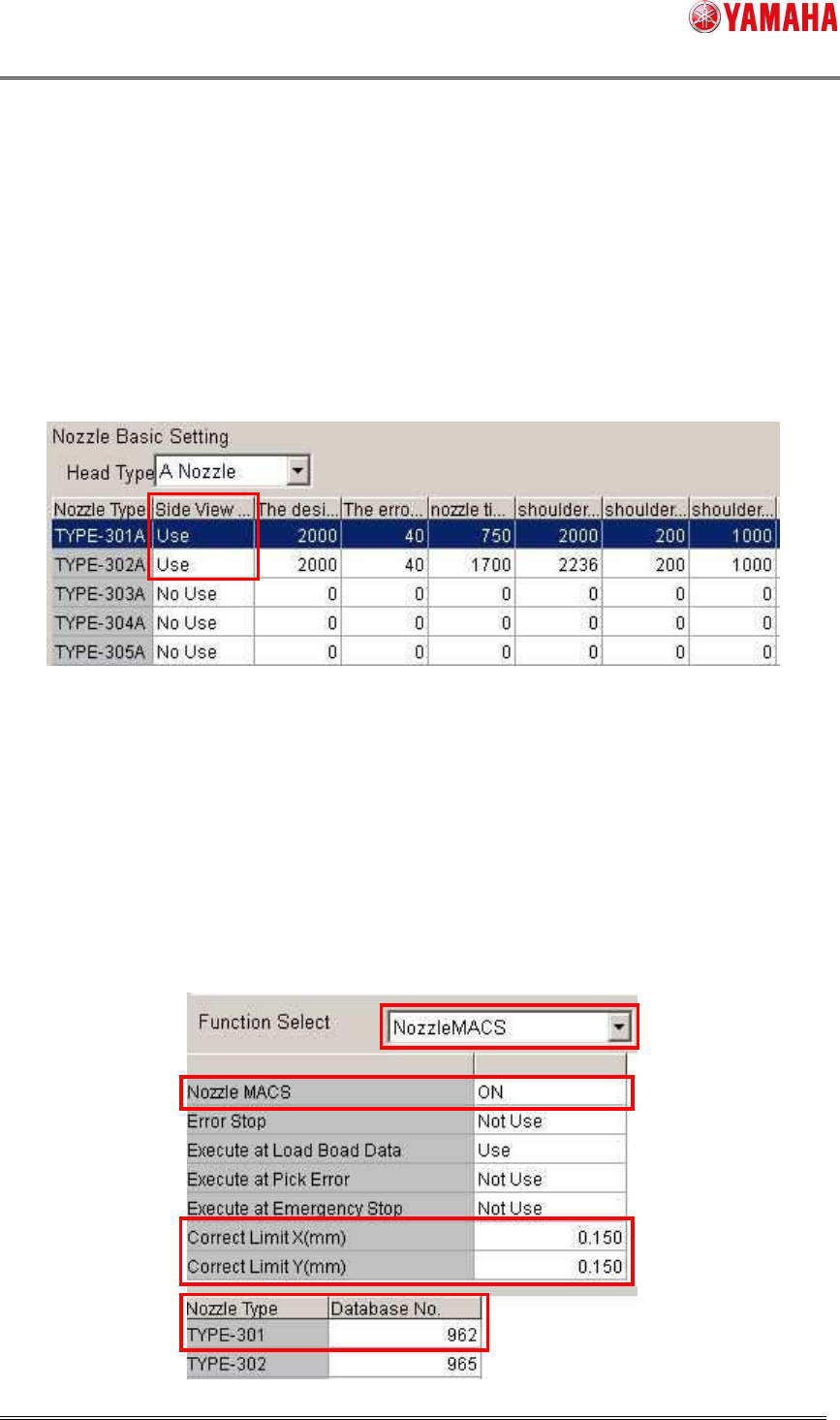

4) Nozzle Shape Check
Nozzle Shape Check is performed only for a nozzle with [Setting] - [Specification Information] -
[Side View Camera Spec] - [Nozzle Basic Setting] - [Side View Camera] is set to “Use”.
※ Nozzle Shape Check works under the following conditions.
・ On a machine equipped with a side view camera.
5) Nozzle Alignment Check
Nozzle Alignment Check is performed based on the setting of [Setting] - [Machine Data] -
[Precision] - [PickupMACS] - [NozzleMACS]. Set [Nozzle MACS] to “ON”.
The target nozzle type should be registered as database No.960/962/963. It is judged as “NG”
when misalignment from the rotation center of a nozzle is over [Correct Limit(mm)] of
NozzleMACS.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD
MDOC-SOFT50394
10/13

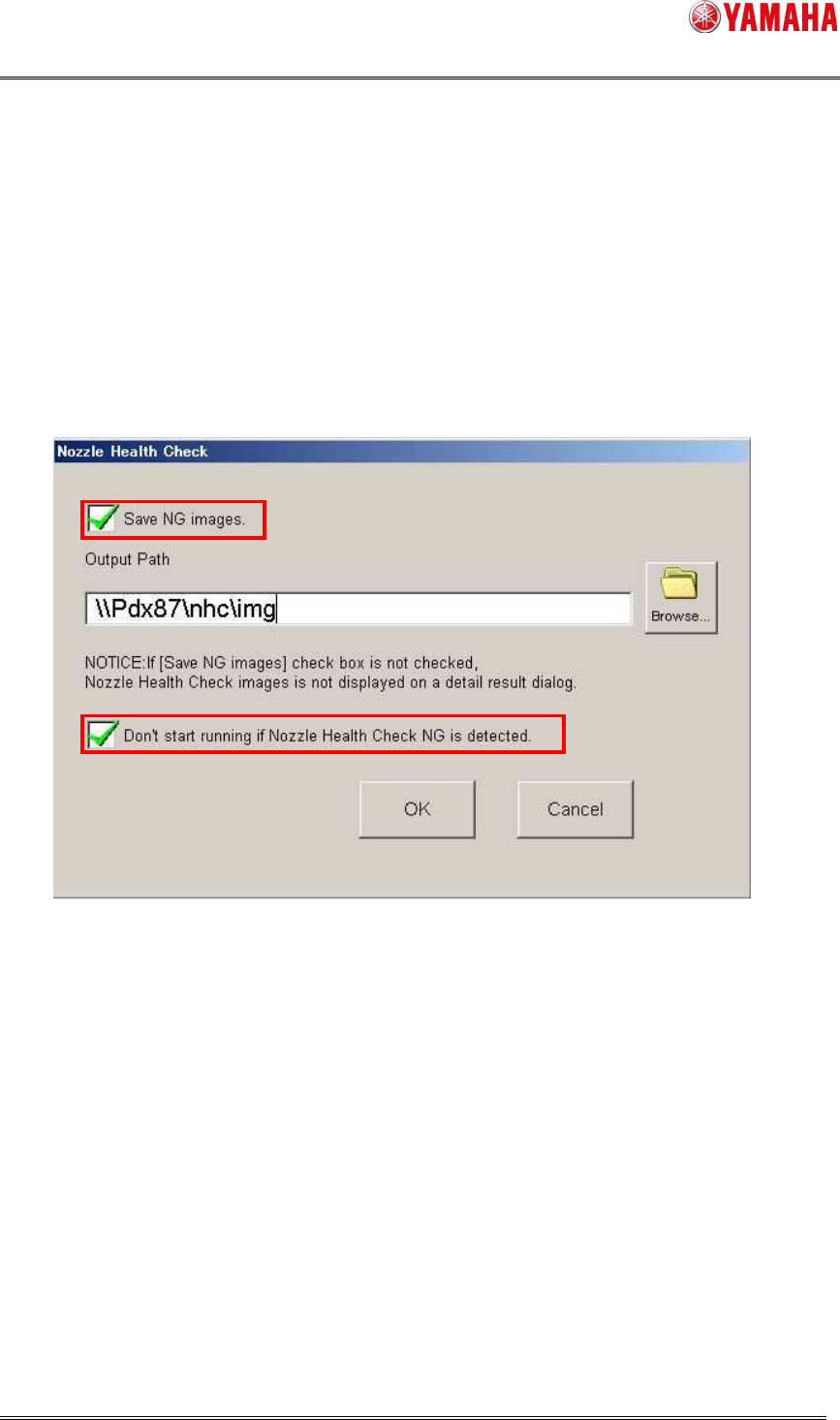

4.2 Software Setting
When the [Save NG images.] check box is checked, it saves an image of NG nozzle detected
by Tip Dirt Check, Shape Check, or Alignment Check.
When the [Don’t start running if Nozzle Health Check NG is detected.] check box is checked,
auto-running doesn’t start as long as Nozzle Health Check is not completed or an abnormal
nozzle is detected in board data.
You need to have administrator authority to make this setting.
The output path folder requires at least 100MB of free space.
These check boxes are unchecked by default.
