Electrostatic Discharge (ESD) Workstation
Products are designed to provide a safe
environment for the handling and assembly of
sensitive components. These products drain
static charge from personnel, limit the buildup of
static charges on non-conductive materials on the
benchtop, and monitor the system to ensure that
it is operating properly. These various components
can be configured to work together providing
optimal protection for your application.
Static Control Workstation Products
Static Control
Workstation Products
1
Note: All specifications are subject to change without notice.
2
Workstation Products
For more product information, please visit www.3M.com/static
3M
™
Wrist Strap Product Selection Guide
Wrist Strap Type Features Model Number
Premium
Fabric
Adjustable knitted burgundy band, available with 5 ft. (1.5 m) and
10 ft. (3.0 m) cords, 1,000,000+ flexes
2214 and 2224
Adjustable fabric blue band with machined stud, available with 6 ft.
(1.8 m) and 12 ft. (3.6 m) cord, 1,000,000+ flexes
WBB-AFWS61M and WBB-AFWS121M
Dual conductor adjustable turquoise fabric band, available with 5 ft.
(1.5 m), 10 ft. (3.0 m), and 20 ft. (6.0 m) dual conductor cord, use
with dual conductor monitors
2368 with 2360, 2370, or 2371
Metal
Fixed size metal band, S,M,L 2205, 2206, 2207
Adjustable metal band available with 6 ft. (1.8 m) and 12 ft. (3.6 m) cord AMWS61-M and AMWS121M
Dual conductor fixed size metal bands with 5 ft. (1.5 m), 10 ft.
(3.0 m), 20 ft. (6.0 m) dual conductor cord
2380 Series Metal Bands
Standard
Fabric
Lay-in stretch blue or maroon band available with 6 ft. (1.8 m) and
12 ft. (3.6 m) ground cord
BLUEWS61M , BLUEWS121M and MWS61M,
MWS121M
Adjustable dual conductor fabric band available with right angle
6 ft. (1.8 m) and 12 ft. (3.6 m) cord, use with dual conductor monitors
DWAFWS61M and DWAFWS121M
Economy
Fabric
Adjustable stretch weave fabric band available with 5 ft. (1.5 m)
lightweight ground cord, 200,000 flexes, low cost
2272
Adjustable fabric wrist band with 6 ft. (1.8 m) cord, low cost ECWS61M-1
Plastic
Adjustable thermoplastic blue wrist band available with 5 ft. (1.5 m)
and 10 ft. (3.0 m) lightweight cord, 200,000+ flexes
4620 and 4610 or 4611
Dual conductor adjustable thermoplastic blue wrist band, low cost 4720
Disposable
One time use 2209
Warning on all wrist strap products:
A 1 megohm resistor is molded into 3M
™
Wrist Strap Ground Cords. DO
NOT REMOVE. If it becomes damaged, replace ground cord immediately.
These products are not to be used in areas where the individual may
come in contact with exposed electrical circuitry exceeding 250 volts AC.
These products are for static control. They will not reduce or increase
your risk of receiving electrical shock when using or working on electrical
equipment. Follow the same precautions you would use without wrist
straps, including:
• Make certain that equipment having a grounding type plug is
properly grounded.
• Make certain that you are not in contact with grounded objects other
than through the 3M Wrist Strap.
3
Workstation Products
3M Adjustable Wrist Straps provide a comfortable, custom fit. One size
adjusts to most any size wrist to provide reliable, 360-degree protection.
These wrist straps feature a band made of a silver-plated, monofilament,
continuous thread woven together with elastic nylon to allow full
conductivity, comfort and reliability, while providing rapid and continuous
drain of static charge.
Adjustability also simplifies ordering procedures and inventory control
by virtually eliminating the need to order and stock several band sizes.
A 1 megohm resistor is built into the ground cord. Available with 1/8 in.
(4 mm) snap end. Adjustable bands fit wrist circumference up to 9.0 in.
(228.6 mm).
Meets or exceeds the requirements of ANSI/ESD S1.1, ANSI/ESD S20.20,
EIA 625, MIL-STD-1686, and MIL-HDBK-263.
3M
™
Adjustable Wrist Strap for Single Conductor Cords
3M
™

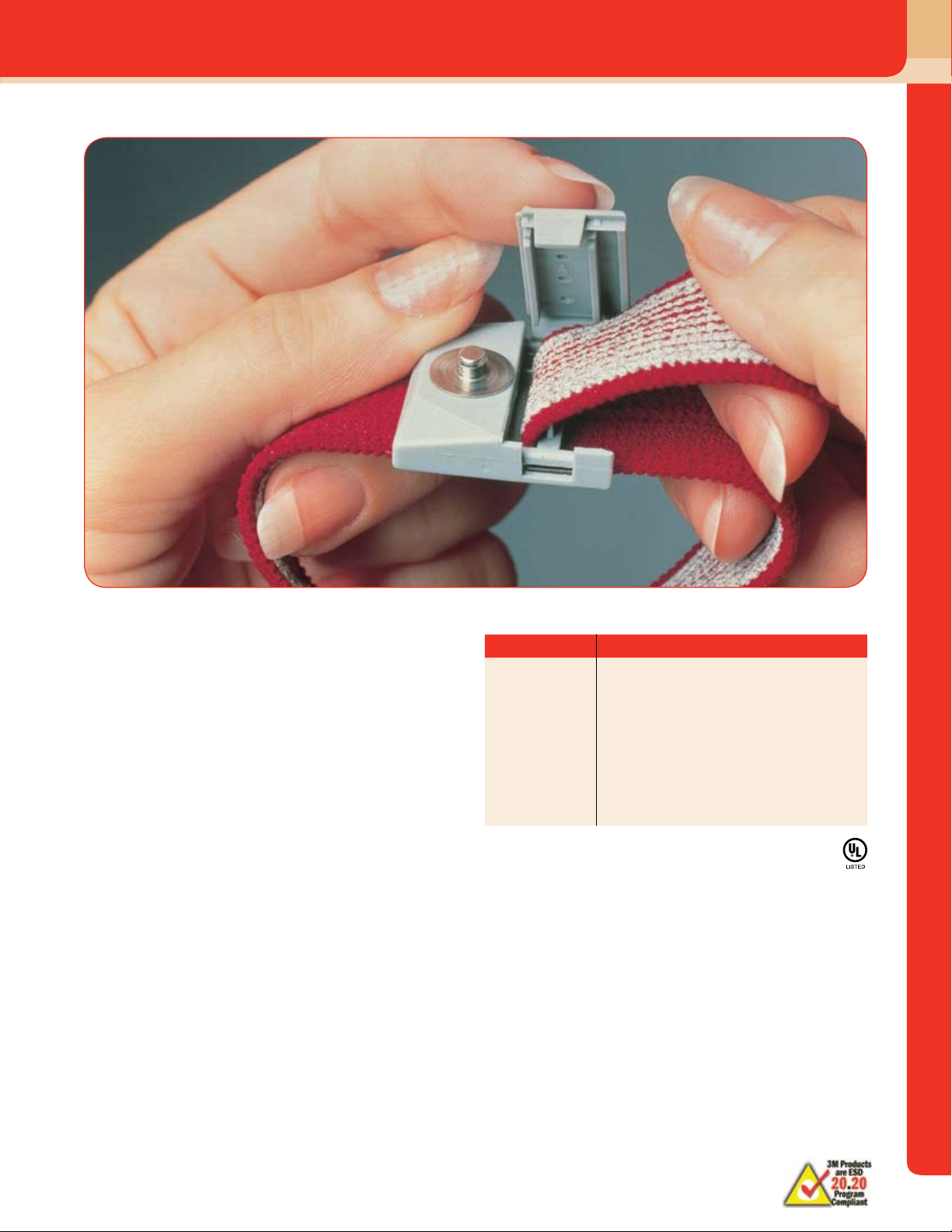

Wrist Strap — Adjustable Elastic Fabric (Premium Performance)
Product No. Description
2204
Adjustable Fabric Wrist Band made of knitted fabric,
in burgundy color.
2214
Adjustable Fabric Wrist Band, in burgundy color, with
coiled cord 5 ft. (1.5 m) practical extended length.
Includes alligator clip.
2224
Adjustable Fabric Wrist Band, in burgundy color, with
coiled cord 10 ft. (3.0 m) practical extended length.
Includes alligator clip.
Features
• 1/8 in. (4 mm) snap.
• Silver-plated, monofilament elastic band.
• 1 megohm resistor built into ground cord.
• 1 million+ flexes.
• Adjustable, locking clasp.
Wrist Straps
