81 Humidity Indicator Cards and Desiccant 3M ™ Desiccant Des iccan t works by ef ficie ntly abs orbin g airbo rne moi sture left ins ide the bag aft er vacu um seal ing, an d captu res moi sture tha t manag es to pas s t…

For more product information, please visit www.3M.com/static

™

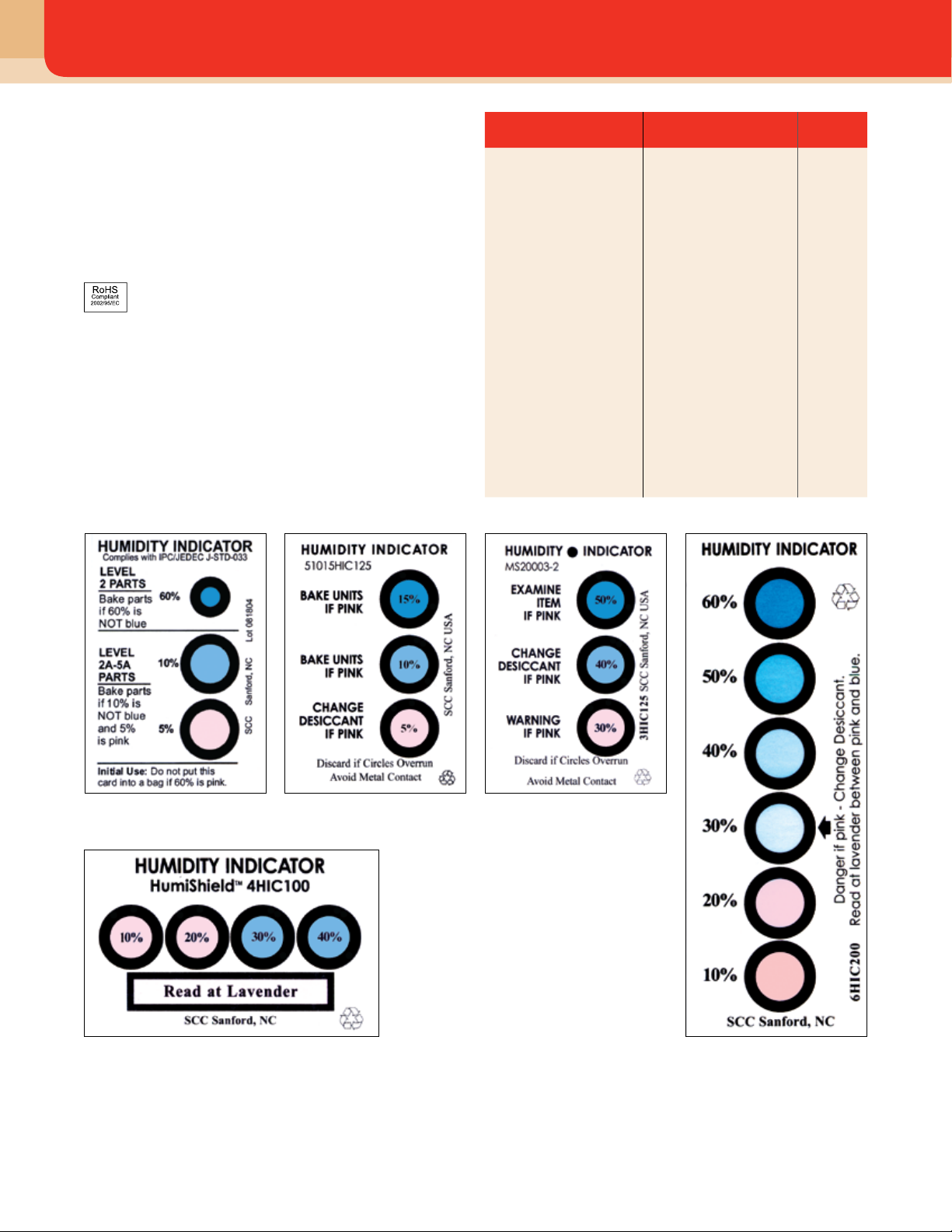

Humidity Indicator Cards (HICs)

HICs are printed with moisture sensitive spots which respond to various

levels of humidity with a visible color change from blue to pink. HICs are

used inside vacuum sealed (dry packed) moisture barrier bags to monitor

the interior humidity conditions of the package. When the bag is opened,

the card can be examined to verify proper dryness inside the bag.

This indicates that the moisture barrier bag and desiccant functioned

correctly. Performance tested. Lot traceable. Bags are RoHS Compliant*

and lead-free**.

™

Humidity Indicator Card 5, 10, 60% RH 3M

™

Humidity Indicator Card 5, 10, 15% RH

™

Humidity Indicator Card

MS 20003-2 Compliant

™

Humidity Indicator Card

MIL-I-8835 Compliant

™

Humidity Indicator Card 10, 20, 30, 40% RH

Product No. Description Cards

Per Can

51060HIC125

JEDEC Compliant

Meets IPC/JEDEC J-STD-033

revision B. Indicates 5, 10,

60% RH. Size: 2 in. x 3 in.

(5.1 cm x 7.6 cm)

125

51015HIC125

JEDEC Compliant

Meets IPC/JEDEC J-STD-033

revision A. Indicates 5, 10,

15% RH. Size: 2 in. x 3 in.

(5.1 cm x 7.6 cm)

125

4HIC100

EIA583 Compliant

Indicates 10, 20, 30, 40%

RH. Size: 2 in. x 3 in.

(5.1 cm x 7.6 cm)

100

6HIC200

MIL-I-8835 Compliant

Indicates 10, 20, 30, 40, 50,

60% RH. Size: 1.56 in. x 4.75

in. (4.0 cm x 12.1 cm)

200

3HIC125

MS20003-2 Compliant

Indicates, 30, 40, 50% RH.

Size: 2 in. x 3 in.

(5.1 cm x 7.6 cm)

125

Packaging

RoHS

Compliant

2002/95/EC

Humidity Indicator Cards and Desiccant

™

Desiccant

Desiccant works by efficiently absorbing airborne moisture left inside the

bag after vacuum sealing, and captures moisture that manages to pass

through the bag material. Secure in a strong envelope of either cleanroom

compatible, sulphur-free Tyvek

™

or economical Kraft paper, these

desiccants are designed to keep your devices dry. Meets the requirements

of IPC/JEDEC J-STD-033 and MIL-D-3464, Types I & II.

™

Vacuum Sealer 635

(Premium Performance)

• Electronic control center

• Retracting vacuum nozzle

• Automatic operation

Part No. 635VACUSEAL

™

Vacuum Sealer 35

(Standard Performance)

• Vacuum, heat, cool timers

• Fixed vacuum nozzle

• Semi-automatic operation

Part No. 35VACUSEAL

™

Vacuum Sealer 235

(Economy Performance)

• Heat and cool timers

• Retracting vacuum nozzle

• Manual operation

Part No. 235VACUSEAL

Pouch Size Part Number Part Number Pouches per

Container

1/6 Unit 1/6TYDES1200 1/6KDES1200 1200

1/3 Unit 1/3TYDES700 1/3KDES700 700

1/2 Unit 1/2TYDES550 1/2KDES550 550

1 Unit 1TYDES300 1KDES300 300

1 Unit 1TYDES1300 1KDES1300 1300

2 Unit 2TYDES150 2KDES150 150

2 Unit 2TYDES800 2KDES800 800

4 Unit 4TYDES500 4KDES500 500

8 Unit 8TYDES300 8KDES300 300

16 Unit 16TYDES150 16KDES150 150

™

Vacuum Sealer 635 3M

™

Vacuum Sealer 35 3M

™

Vacuum Sealer 235

Product No. Description Labels

per Roll

113LABEL

For use with dry packaging

applications. Displays the

warning symbol and message

in accordance with IPC/JEDEC

J-STD-033 and JEDEC113. 3M

can pre-apply this label to bags.

100

DRILABEL

For use with dry packaging

applications. Displays static

awareness symbol and EIA 583

moisture symbol.

Provides writing space.

100

™

Desiccant, Tyvek

™

Pouch

™

Label 113

™

Desiccant, Kraft Pouch

™

Dri-Label

™

Dry Packaging Labels

™

Vacuum Sealers

™

Dessicant

™

Vacuum Sealers

A vacuum sealer evacuates moisture laden air from moisture barrier bags,

and then heat seals the bags closed. This is part of the dry packaging

process that protects surface mount devices from moisture. A vacuum

sealer, a moisture barrier bag, desiccant, and humidity indicator card (HIC)

make up the complete system for dry packaging.

Product No. Description

635VACUSEAL

Premium Vacuum Sealer

35VACUSEAL

Standard Vacuum Sealer

235VACUSEAL

Economy Vacuum Sealer

™

Dry Packaging Labels

Packaging

For more product information, please visit www.3M.com/static

™

Cushioned Shielding Bags

3M Metal-Out Cushioned Static Shielding Bags 2120R protect devices from

physical damage as well as provide proper static shielding.

™

Static Shielding Bag 2120R Cross Section

Aluminum

Polyester

2120R

Static-Shielding

Bag

Dissipative

Polyethylene

Dissipative Open

Cell Cushioning

Abrasion

Resistant Coating

Static Shielding Bag 2120R Properties

Property Test Method Typical Value

Thickness

PPP-C-1842 125 mil (3.175 mm)

Strength

Tensile

Puncture

Seam

ASTM D882

FTMS 101

MIL PRF 81705

34 lbs./in.

22 lbs. (10 kg)

Pass

Surface Resistance/

Resistivity

Interior

Exterior

Metallized Layer

EIA-541, ASTM D257

ANSI/ESD S11.11

Monroe #267

<10

ohm/sq.

<10

ohm

<10

ohm/sq.

Shielding

EIA-541 (V-Zap) <30V

Electrostatic Decay

Interior

EIA-541

<2 sec.

Contact Corrosivity

FTMS 101C,

Method 3005

Pass

Shelf Life

(from date of manufacture)

1 Year

Cushioned Wrap 2126R Properties

Property Test Method Typical Value

Thickness

PPP-C-1842 125 mil (3.175 mm)

Strength

Tensile

Puncture

ASTM D882

FTMS 101

34 lbs./in.

22 lbs. (10 kg)

Surface Resistance/

Resistivity

Interior

Exterior

Metallized Layer

EIA-541, ASTM D257

ANSI/ESD S11.11

Monroe #267

<10

ohm/sq.

<10

ohm

<10

ohm/sq.

Shielding

EIA-541 (V-Zap) <30 V

Electrostatic Decay

Interior

ANSI/ESD S11.11

<2 sec.

Contact Corrosivity

FTMS 101C,

Method 3005

Pass

Shelf Life

(from date of manufacture)

1 Year

Product No. Description

2120R

Cushioned Static Shielding Bags. 100 bags per pack

Standard Sizes, in. (cm)

6 x 7 (15.2 x 17.8)

8 x 7 (20.3 x 17.8)

8 x 11 (20.3 x 27.9)

10 x 7 (25.4 x 17.8)

12 x 11 (25.4 x 27.9)

14 x 11 (35.6 x 27.9)

14 x 15 (35.6 x 38.1)

16 x 11 (40.6 x 27.9)

16 x 15 (40.6 x 38.1)

18 x 11 (45.7 x 27.9)

18 x 15 (45.7 x 38.1)

18 x 23 (45.7 x 58.4)

Custom Sizes Limits, in. (cm)

5 x 5 to 24 x 23 (12.7 x 12.7 to 61 x 58.4)

Dimensions are inside measurements (W x L). Custom printing on bags

available by special order. (Please contact 3M Customer Service for quotations.)

Product No. Description

2126R

Cushioned Static Shielding Wrap. Supplied in rolls.

Standard Sizes, in. (cm)

24 x 125 (61 x 38.1)

48 x 125 (122 x 38.1)

™

Cushioned Shielding Wrap

3M Cushioned Wrap 2126R provides static shielding and physical

protection for large or irregularly shaped circuit boards. Heat sealable

inner surface.

Packaging

RoHS

Compliant

2002/95/EC

RoHS

Compliant

2002/95/EC
