7-6
SME Tape Feeder Calibration Jig User's Manual
7-7
Service Part List
便 笺 85号是紧固件。紧固件只能以成套(package)购买。该成套购买时
所含紧固件是组装校准用治具和主供料器1台时需要的分量。
成套(package) 式物料的编号：AM03-022317A
NO. PART NO. PART NAME Q'TY REMARK
32 GD03-000023A INSTALL GUIDE 1
33 AM03-012040A SME MASTER TOOGLE ASSY 1
34 J70653935A T LINK1 HINGE 2
35 J7066040A TOGGLE SPRING 1
36 J70661204A LOCKER-SPG-SHAFT 1
85 FC18-901932 FLAT HEAD CAP SCREW 3 M3X12
7-8
SME Tape Feeder Calibration Jig User's Manual

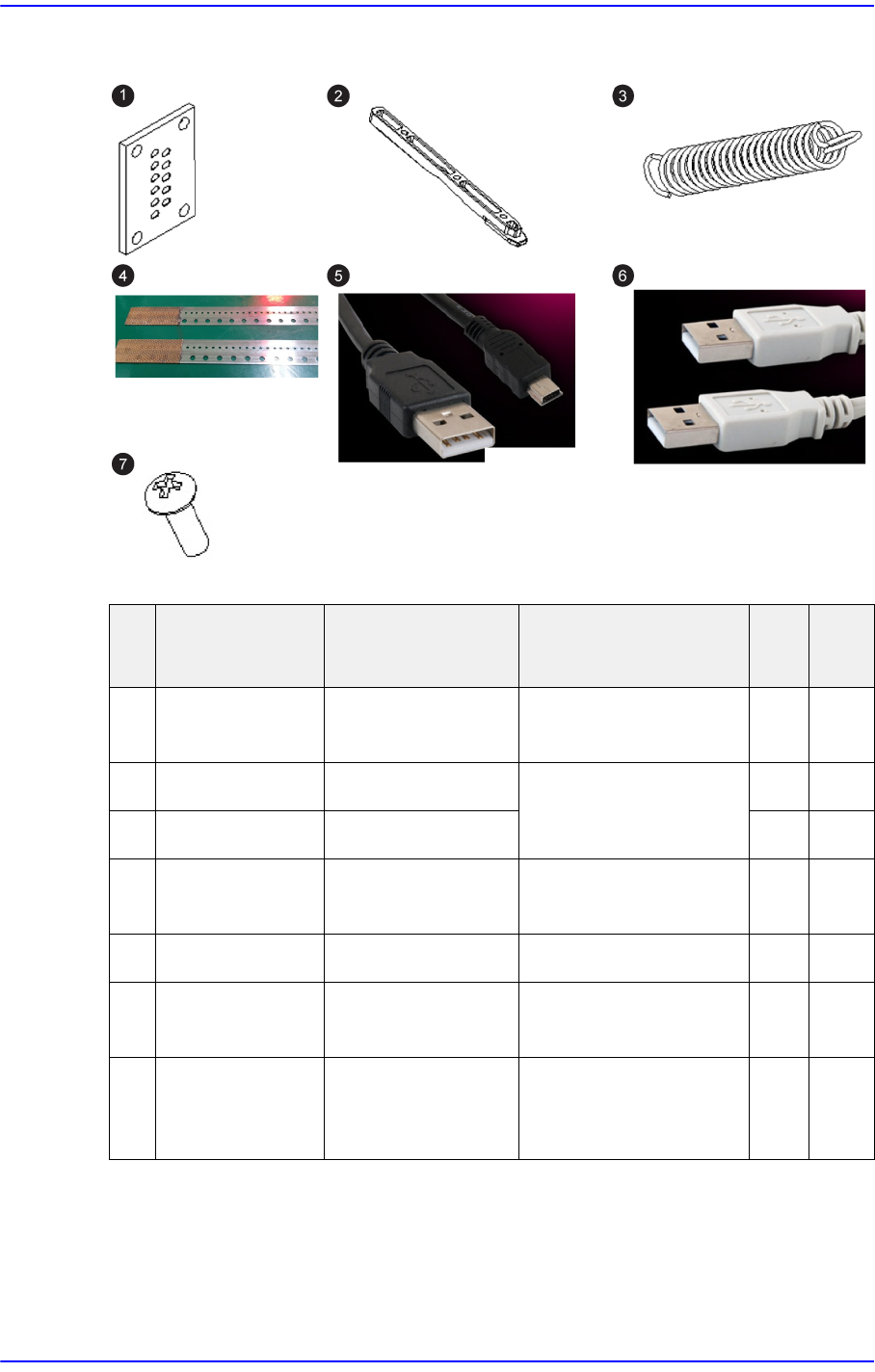

7.1.2. Recommended Spare Parts List
NO
.
PART NO. PART NAME Standard unit Q'TY
1 EP16-002162A FEEDER BASE
BOARD 1SLOT
1 Slot Board PC 1
2 GD03-000023A INSTALL GUIDE PC 1
3 J7066040A TOGGLE SPRING PC 1
4 AM03-018988A MASTER TAPE
8MM ASSY
SME 8mm MasterTape PC 10
5 EP02-001075 5PIN2USB CABLE USB A-Mini Spin(1.0m) PC 1
6 EP02-001074 USB MM CABLE USB 2.0 AA Type (M/M
1.8M)
PC 1
7 AM03-022317A SME FEEDER JIG
SCREW
PACKAGE
Calibration Jig, Master
Feeder 1 Set
(Fastening Parts 19EA)
PC 1
