2-25 2 asic operation 3.4 Adjusting the conveyor unit setup When the board type to be produced is changed, the con veyor unit setup must be adjusted, and the feeders prepared to match that board type. This section desc…
2-24
2
asic operation
4
Press the [Start] button to start warm-up.
The warm-up progress time and status will appear under the "Progress status".

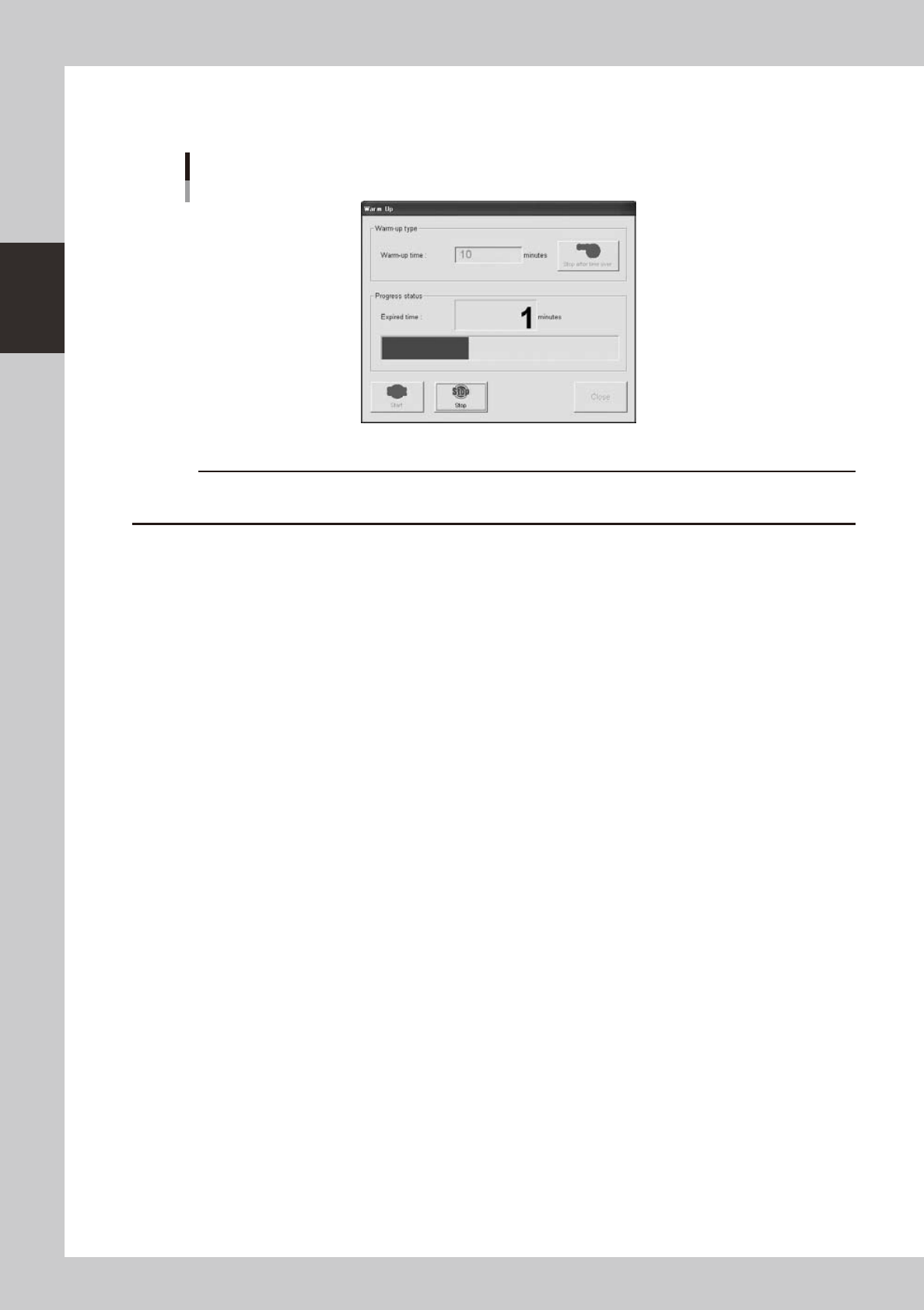

Warm-up screen
24217-L1-00
c
the problem and eliminate it.
5
Finish the warm-up.
Warm-up will automatically stop when the warm-up time you set is reached. Press the [Close] button,
and return to the previous screen.
2-25
2
asic operation
3.4 Adjusting the conveyor unit setup
When the board type to be produced is changed, the conveyor unit setup must be adjusted, and the feeders
prepared to match that board type. This section describes how to change the conveyor unit setup.

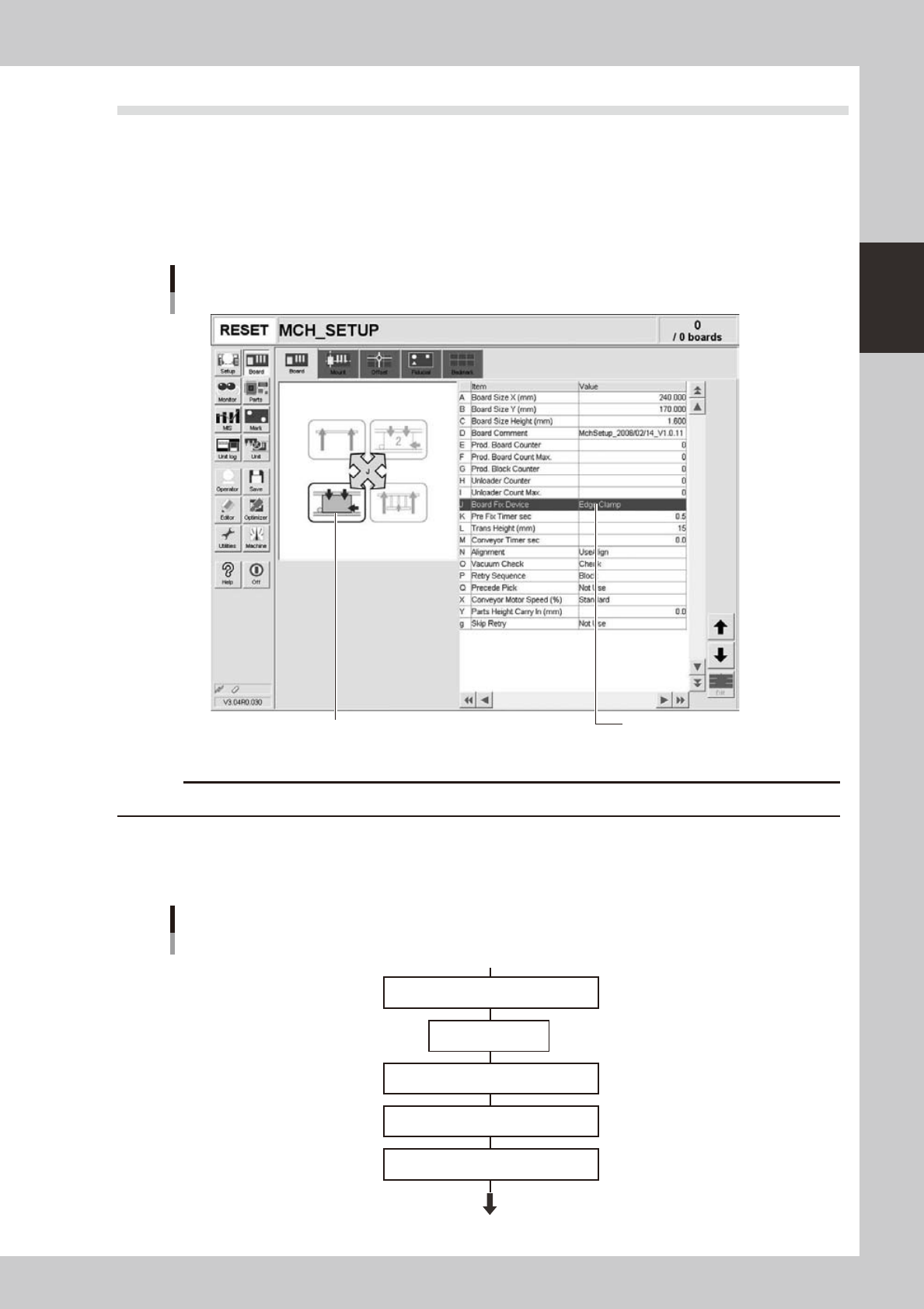

Board clamping method
Select "Edge Clamp" for the board clamping method. This method clamps a board by pushing up its edges against the
board hold plates. Push-up pins are also used to support the board at points other than its edges.
Board clamping method
Checking board clamp method
Illustration shows how board is clamped on the conveyor.
24218-L1-00
c
Conveyor's board sensors may fail to detect a production board if it has a slit or cutout.
3.4.1 Conveyor unit setup flow
Set up the convey units as shown in the flowchart below.
Start operation
Flowchart for conveyor unit setup
Adjust conveyor width
Press emergency stop
button
Raise main stopper
Adjust push-up pin positions
Edge Clamp
Adjust board hold plate
23203-L1-00
2-26
2
asic operation
3.4.2 Conveyor width
Adjust the conveyor width to match the board width to be produced.
1
Select the board data.
See the description in "1. Starting production" in Chapter 3.
n
NOTE
When the conveyor width is set in the board data, the conveyor width will be automatically adjusted. Skip the
following steps.
2
Open the [Unit]-[Conveyor] screen.
3
Press the [Width] button.
The "Conveyor Width" dialog box appears. Check the conveyor width (units: mm) and press the [OK]
button. The conveyor rail automatically changes to the specified width.
[Width] button
"Conveyor Width" dialog box
24219-L1-00
c
the conveyor width.
