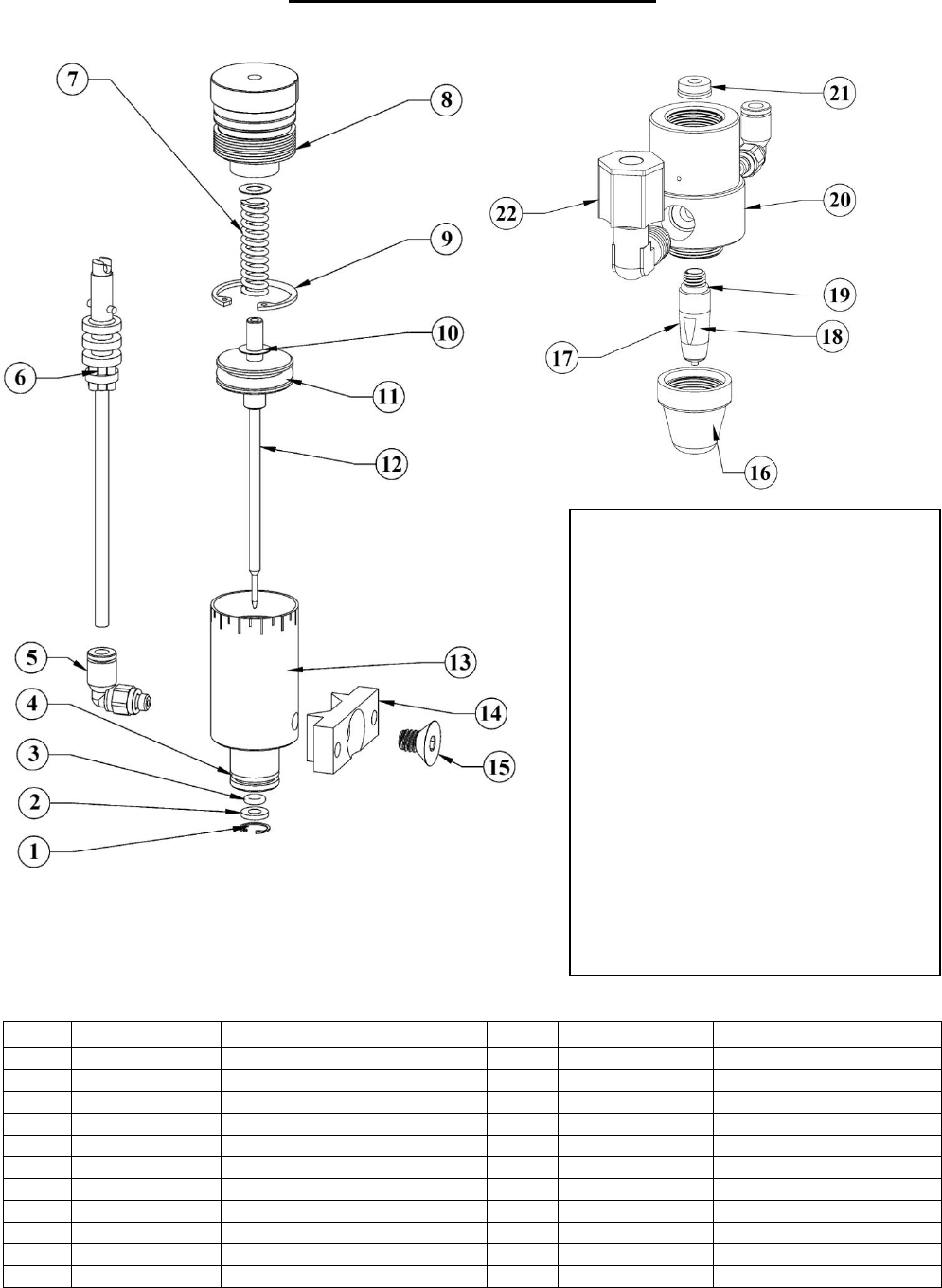

TS5520 Series Spray Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
12
5520-000-010
Needle/Piston Assembly
2
TSD1109-45
Nylon Washer
13
5520-000-001
Air Cylinder
3
TSD1400-006A
O-Ring, Buna
14
918-000-048
Mounting Bracket
4
TSD1400-013A
O-Ring, Buna
15
2800-0634
Mounting Screw
5
TSD1003-20
Air Fitting, 4mm, Elbow
16
5520-000-018
Spray Cone Cap
6
A0100478
Air Hose/Connector Assy, 4mm
17
5520-000-020
Nozzle, Inc. Seat
7
TSD1150-34
Spring
18
T1000598
Nozzle Seat
8
5520-000-007
End Cap
19
TSD1400-008A
Nozzle Adaptor O-Ring, Buna
9
TSD1120-15
Retaining Ring, Large
20
5520-000-002
Body
10
TSD1109-43
Mylar Washer
21
TSD400-70
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
22
TSD1003-16
Compression Fitting
Seal Repair Kit = 5520-SEALKIT
Includes 1 x 3, 4, 11, 19, 21 and 1 x 22 -
TSD931-75 - (TSD1003-16 Shown)
Valve Repair Kit = 5520-VALVEKIT
Includes 1 x 2, 3, 4, 9, 11, 12, 17, 19, 21,
22 - TSD931-75 - (TSD1003-16 Shown)
and 2 x 10
U-Seal Insertion Tool = 5420-SIT
Nozzle Seat Tool = TSD1113-28
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-70, which must remain dry.

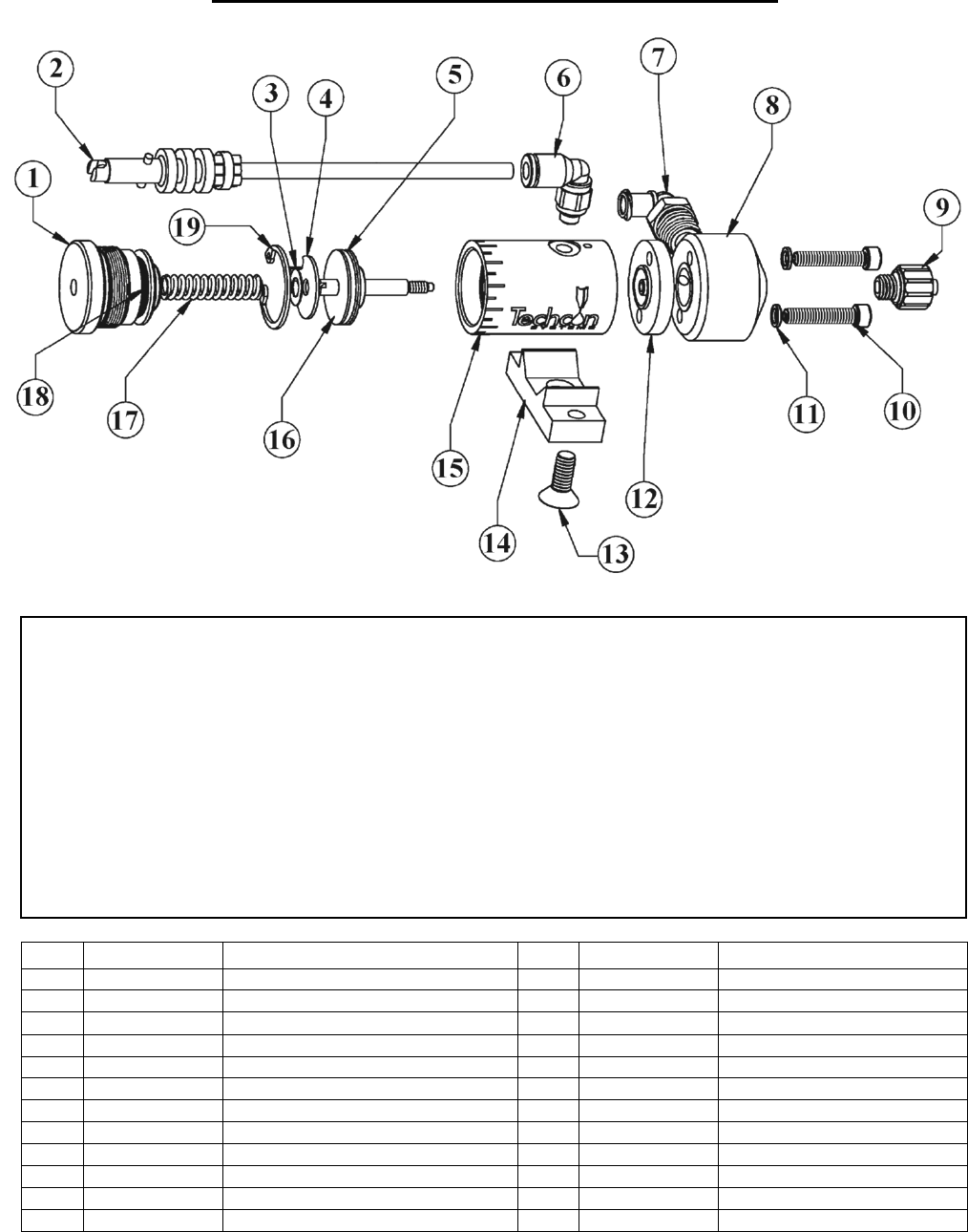

TS5622 Series Vertical Diaphragm Valve
Item
Part Number
Description
Item
Part Number
Description
1
5620-000-004
End Cap
10
TSD1103-336
Fluid Housing Screw
2
A0100478
Air Hose/Connector Assy, 4mm
11
TSD1109-53
Flat Washer
3
TSD1109-43
Mylar Washer
12
5620-000-011
Diaphragm for TS5622VT
4
5620-000-006
Anti-Rotate Washer
12*
5620-000-002
Diaphragm for VU/VD Type
5
TSD1400-016A
Piston O-Ring
13
TSD1106-13
Mounting Screw
6
TSD1003-20
Air Fitting, 4mm, Elbow
14
918-000-048
Mounting Bracket
7
TSD931-75
Luer Lock Adaptor, Elbow
15
5620-000-003
Air Cylinder
8
5622-000-003
Fluid Housing for TS5622VT
16
5620-000-005
Piston
8*
5622-000-001
Fluid Housing for TS5622VU
17
TSD1150-40
Spring
8*
5622D-000-001
Fluid Housing for TS5622VD
18
TSD1400-111A
End Cap O-Ring
9
TSD931-60
Tip Adaptor for TS5622VT/TS5622VU
19
TSD1120-11
Retaining Ring
9*
TSD931-91
Tip Adaptor for TS5622VD
Diaphragm Kit = 5620TFE-DKIT (TS5622VT) or 5620UHMW-DKIT (TS5622VD/TS5622VU)
Includes 1 x 5, 12, 17 and 18
Fluid Housing Kit = 5622VT-FHKIT (TS5622VT) or 5622VD-FHKIT (TS5622VD) or 5622VU-FHKIT (TS5622VU)
Includes 1 x 7, 8, 9, 2 x 10 and 2 x 11 (No washers required for TS5622VD)
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
the Diaphragm, which must remain dry.
Body Mounting Screw Torque: Acetal (Delrin) requires 14 in lb (1.58 N-m), UHWM requires 7 in lb (0.79
N-m) and Teflon requires 5 in lb (0.56 N-m).

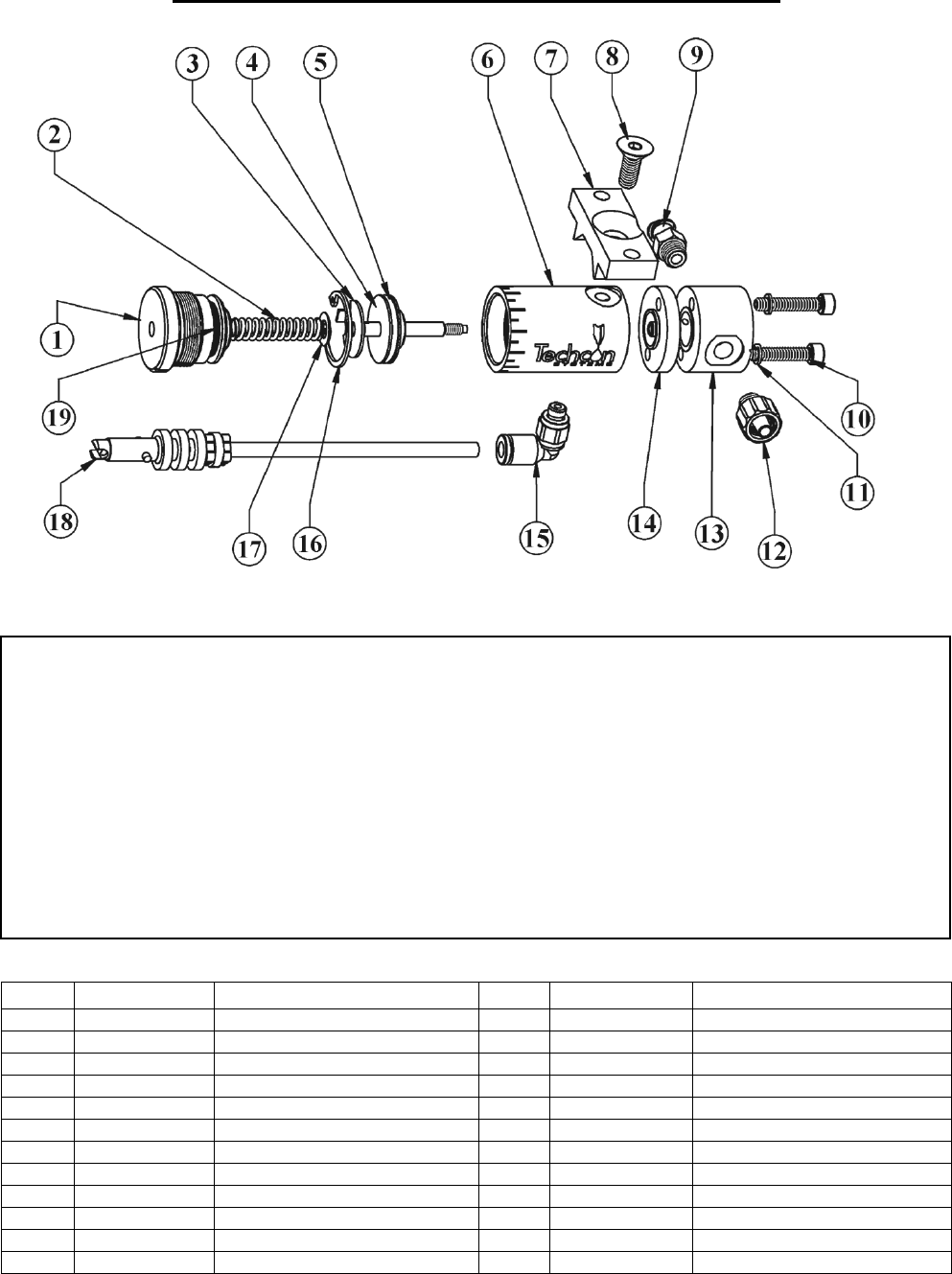

TS5620 Series Horizontal Diaphragm Valve
Item
Part Number
Description
Item
Part Number
Description
1
5620-000-004
End Cap
12
TSD931-60
Tip Adaptor for HT/HU Option
2
TSD1150-40
Spring
12*
TSD931-57
Tip Adaptor for TS5621HD
3
5620-000-006
Anti-Rotate Washer
13
5620HT-000-001
Fluid Housing for TS5620HT
4
5620-000-005
Piston
13*
5620-000-001
Fluid Housing for TS5620HU
5
TSD1400-016A
Piston O-Ring
13*
5621-000-001
Fluid Housing for TS5621HD
6
5620-000-003
Air Cylinder
14
5620-000-011
Diaphragm for TS5620HT
7
918-000-048
Mounting Bracket
14*
5620-000-002
Diaphragm for HD/HU Option
8
TSD1106-13
Mounting Screw
15
TSD1003-20
Air Fitting, 4mm, Elbow
9
TSD931-58
Inlet Adaptor For HT/HU Versions
16
TSD1120-11
Retaining Ring
9*
TSD931-54
Inlet Adaptor For TS5621HD
17
TSD1109-43
Mylar Washer
10
TSD1103-336
Fluid Housing Screw
18
A0100478
Air Hose/Connector Assy, 4mm
11
TSD1109-53
Flat Washer
19
TSD1400-111A
End Cap O-Ring
Diaphragm Kit = 5620TFE-DKIT (TS5620HT) or 5620UHMW-DKIT (TS5621VD/TS5620HU)
Includes 1 x 2, 5, 14 and 19
Fluid Housing Kit = 5620HT-FHKIT (TS5620HT) or 5621HD-FHKIT (TS5621HD) or 5620HU-FHKIT
(TS5620HU)
Includes 1 x 9, 12, 13, 2 x 10 and 2 x 11 (No washers required for TS5621HD)
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
the Diaphragm, which must remain dry.
Body Mounting Screw Torque: Acetal (Delrin) requires 14 in lb (1.58 N-m), UHWM requires 7 in lb (0.79
N-m) and Teflon requires 5 in lb (0.56 N-m).
