TS5622VU-DVD Vertical Diaphragm Valve Item Part Number Description Item Part Number Description 1 5620 - 000 - 004 End Cap 11 TSD1103- 336 Fluid Housing Screw 2 A0100478 Air Hose/Connector Assy, 4mm 12 TSD1109- 53 Flat W…

100%1 / 17
TS5620 Series Horizontal Diaphragm Valve
Item
Part Number
Description
Item
Part Number
Description
1
5620-000-004
End Cap
12
TSD931-60
Tip Adaptor for HT/HU Option
2
TSD1150-40
Spring
12*
TSD931-57
Tip Adaptor for TS5621HD
3
5620-000-006
Anti-Rotate Washer
13
5620HT-000-001
Fluid Housing for TS5620HT
4
5620-000-005
Piston
13*
5620-000-001
Fluid Housing for TS5620HU
5
TSD1400-016A
Piston O-Ring
13*
5621-000-001
Fluid Housing for TS5621HD
6
5620-000-003
Air Cylinder
14
5620-000-011
Diaphragm for TS5620HT
7
918-000-048
Mounting Bracket
14*
5620-000-002
Diaphragm for HD/HU Option
8
TSD1106-13
Mounting Screw
15
TSD1003-20
Air Fitting, 4mm, Elbow
9
TSD931-58
Inlet Adaptor For HT/HU Versions
16
TSD1120-11
Retaining Ring
9*
TSD931-54
Inlet Adaptor For TS5621HD
17
TSD1109-43
Mylar Washer
10
TSD1103-336
Fluid Housing Screw
18
A0100478
Air Hose/Connector Assy, 4mm
11
TSD1109-53
Flat Washer
19
TSD1400-111A
End Cap O-Ring
Diaphragm Kit = 5620TFE-DKIT (TS5620HT) or 5620UHMW-DKIT (TS5621VD/TS5620HU)
Includes 1 x 2, 5, 14 and 19
Fluid Housing Kit = 5620HT-FHKIT (TS5620HT) or 5621HD-FHKIT (TS5621HD) or 5620HU-FHKIT
(TS5620HU)
Includes 1 x 9, 12, 13, 2 x 10 and 2 x 11 (No washers required for TS5621HD)
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
the Diaphragm, which must remain dry.
Body Mounting Screw Torque: Acetal (Delrin) requires 14 in lb (1.58 N-m), UHWM requires 7 in lb (0.79
N-m) and Teflon requires 5 in lb (0.56 N-m).
TS5622VU-DVD Vertical Diaphragm Valve
Item
Part Number
Description
Item
Part Number
Description
1
5620-000-004
End Cap
11
TSD1103-336
Fluid Housing Screw
2
A0100478
Air Hose/Connector Assy, 4mm
12
TSD1109-53
Flat Washer
3
TSD1120-11
Retaining Ring
13
5620-000-002
Diaphragm
4
TSD1109-43
Mylar Washer
14
TSD1106-13
Mounting Screw
5
5620-000-006
Anti-Rotate Washer
15
918-000-048
Mounting Bracket
6
TSD1400-016A
Piston O-Ring
16
5620-000-003
Air Cylinder Assy
7
TSD1003-20
Air Fitting, 4mm, Elbow
17
5620-000-005
Piston
8
TSD931-75
Luer Lock Adaptor, Elbow
18
TSD1150-40
Spring
9
5620-000-012
Fluid Housing
19
TSD1400-111A
End Cap O-Ring
10
5440-000-004
Tip Cap, Full Block
Diaphragm Kit = 5620UHMW-DKIT
Includes 1 x 6, 13, 18 and 19
Fluid Housing Kit = 5622VU-DVD-FHKIT
Includes 1 x 8, 9, 10, 2 x 11 and 2 x 12
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
the Diaphragm, which must remain dry.
Body Mounting Screw Torque: Stainless Steel requires 14 in lb (1.58 N-m).

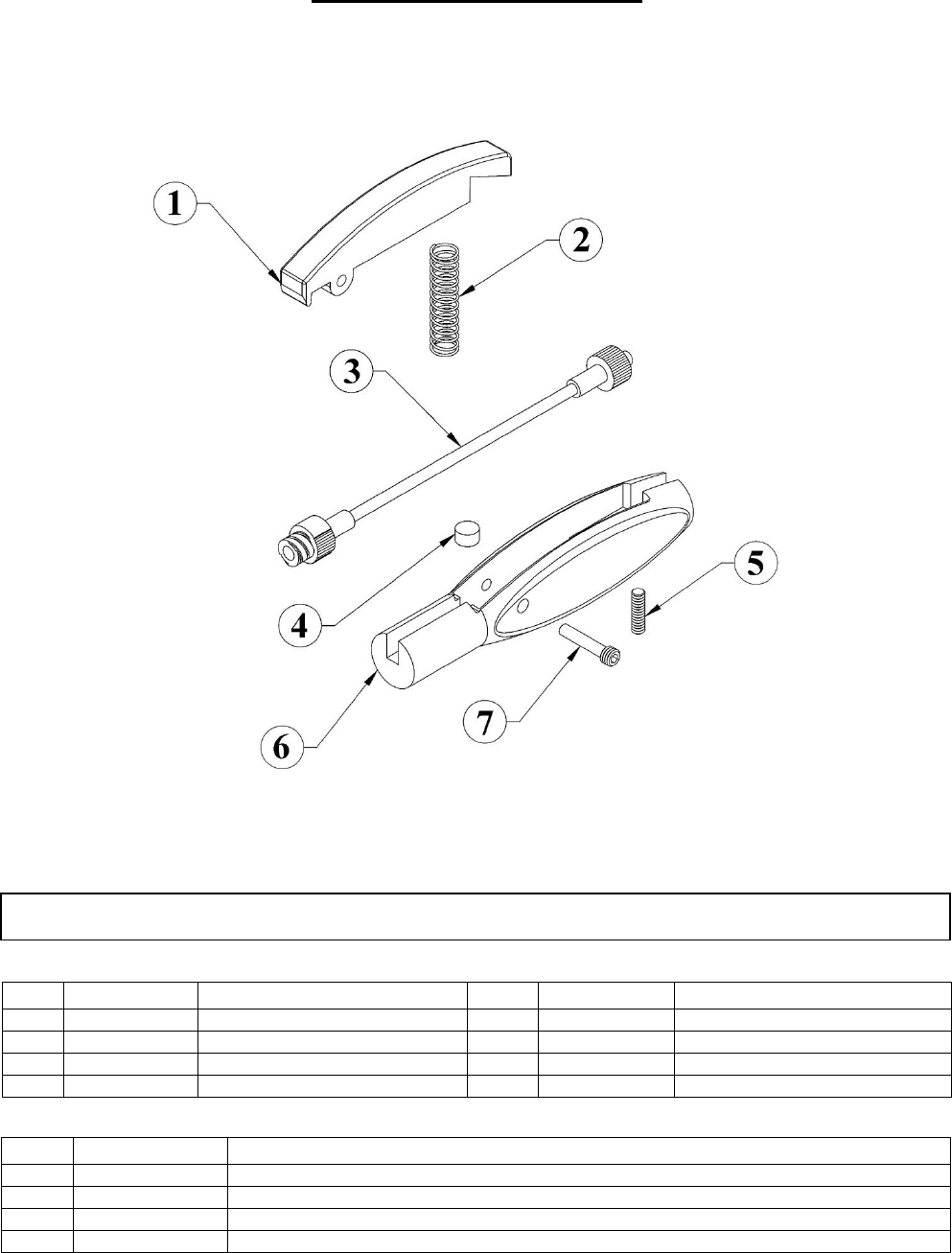

TS1201 Pinch Tube Pen
Item
Part Number
Description
3*
1201-000-004PK
Pinch Tube, Clear PE, Male to Female, 0.1'' (2.54mm) ID
3*
1201-000-004BPK
Pinch Tube, Black PE, Male to Female, 0.1'' (2.54mm) ID
3*
1201-000-006PK
Pinch Tube, Clear PE, Male to Female, 0.07'' (1.78mm) ID
3*
1201-006-000PK
Pinch Tube, Clear PU, Male to Female, 0.125'' (3.18mm) ID
Item
Part Number
Description
Item
Part Number
Description
1
1201-000-002
Trigger, Handle
5
TSD1123-15
Flow Adjustment Screw
2
TSD1150-7
Spring
6
1201-000-001
Body
3
SEE CHART
Pinch Tube
7
1201-000-003
Pin
4
1212-000-005
Pinch Cushion
Lubrication: No lubrication required on valve.
