TS5622VU-DVD Vertical Diaphragm Valve
Item
Part Number
Description
Item
Part Number
Description
1
5620-000-004
End Cap
11
TSD1103-336
Fluid Housing Screw
2
A0100478
Air Hose/Connector Assy, 4mm
12
TSD1109-53
Flat Washer
3
TSD1120-11
Retaining Ring
13
5620-000-002
Diaphragm
4
TSD1109-43
Mylar Washer
14
TSD1106-13
Mounting Screw
5
5620-000-006
Anti-Rotate Washer
15
918-000-048
Mounting Bracket
6
TSD1400-016A
Piston O-Ring
16
5620-000-003
Air Cylinder Assy
7
TSD1003-20
Air Fitting, 4mm, Elbow
17
5620-000-005
Piston
8
TSD931-75
Luer Lock Adaptor, Elbow
18
TSD1150-40
Spring
9
5620-000-012
Fluid Housing
19
TSD1400-111A
End Cap O-Ring
10
5440-000-004
Tip Cap, Full Block
Diaphragm Kit = 5620UHMW-DKIT
Includes 1 x 6, 13, 18 and 19
Fluid Housing Kit = 5622VU-DVD-FHKIT
Includes 1 x 8, 9, 10, 2 x 11 and 2 x 12
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent, with the exception of
the Diaphragm, which must remain dry.
Body Mounting Screw Torque: Stainless Steel requires 14 in lb (1.58 N-m).
TS1201 Pinch Tube Pen
Item
Part Number
Description
3*
1201-000-004PK
Pinch Tube, Clear PE, Male to Female, 0.1'' (2.54mm) ID
3*
1201-000-004BPK
Pinch Tube, Black PE, Male to Female, 0.1'' (2.54mm) ID
3*
1201-000-006PK
Pinch Tube, Clear PE, Male to Female, 0.07'' (1.78mm) ID
3*
1201-006-000PK
Pinch Tube, Clear PU, Male to Female, 0.125'' (3.18mm) ID
Item
Part Number
Description
Item
Part Number
Description
1
1201-000-002
Trigger, Handle
5
TSD1123-15
Flow Adjustment Screw
2
TSD1150-7
Spring
6
1201-000-001
Body
3
SEE CHART
Pinch Tube
7
1201-000-003
Pin
4
1212-000-005
Pinch Cushion
Lubrication: No lubrication required on valve.

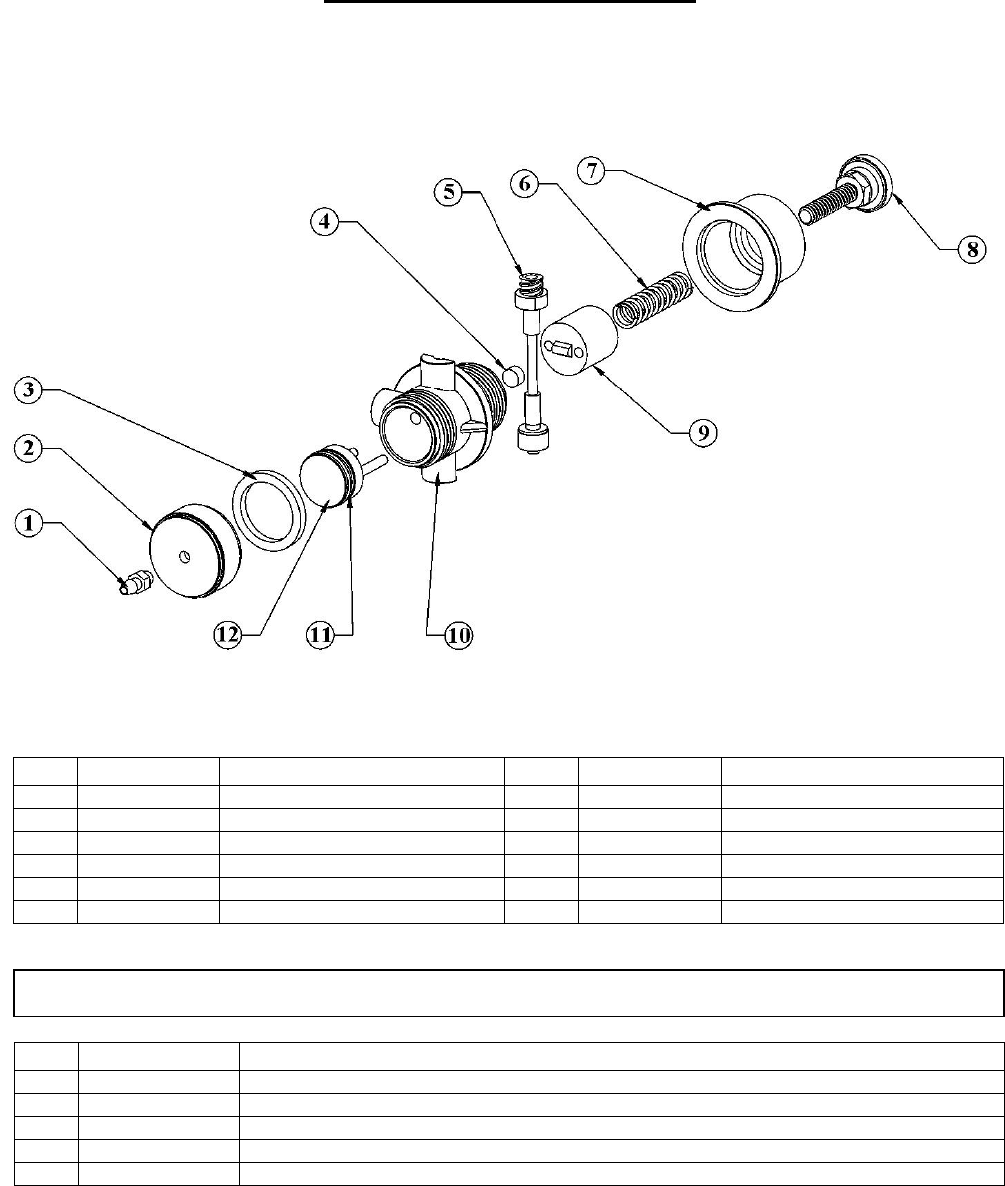

TS1212 Pinch Tube Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD922-19
Barb Fitting
7
1212-000-002
Flange
2
1212-000-003
Cylinder Cap
8
1212-002-000
Adjustment Knob Assy
3
1212-000-007
Gasket
9
1212-000-004
Shut Off Piston
4
1212-000-005
Pinch Cushion
10
1212-000-001
Body
5
SEE CHART
Pinch Tube
11
TSD1399-1
U-Cup Seal
6
3300-0336
Spring
12
1212-003-000
Piston Assembly
Item
Part Number
Description
5*
1212-004-002PK
Pinch Tube, Clear PE, Male to Female, 0.1'' (2.54mm) ID
5*
1212-004-002BPK
Pinch Tube, Black PE, Male to Female, 0.1'' (2.54mm) ID
5*
1212-004-000PK
Pinch Tube, Clear PE, Male to Female, 0.07'' (1.78mm) ID
5*
1212-004-100PK
Pinch Tube, Clear PU, Male to Female, 0.125'' (3.18mm) ID
5*
1212-004-100BPK
Pinch Tube, Black PU, Male to Female, 0.125'' (3.18mm) ID
Lubrication: All O-Rings & seals must be lubricated with Bimba HT-99, or equivalent.
